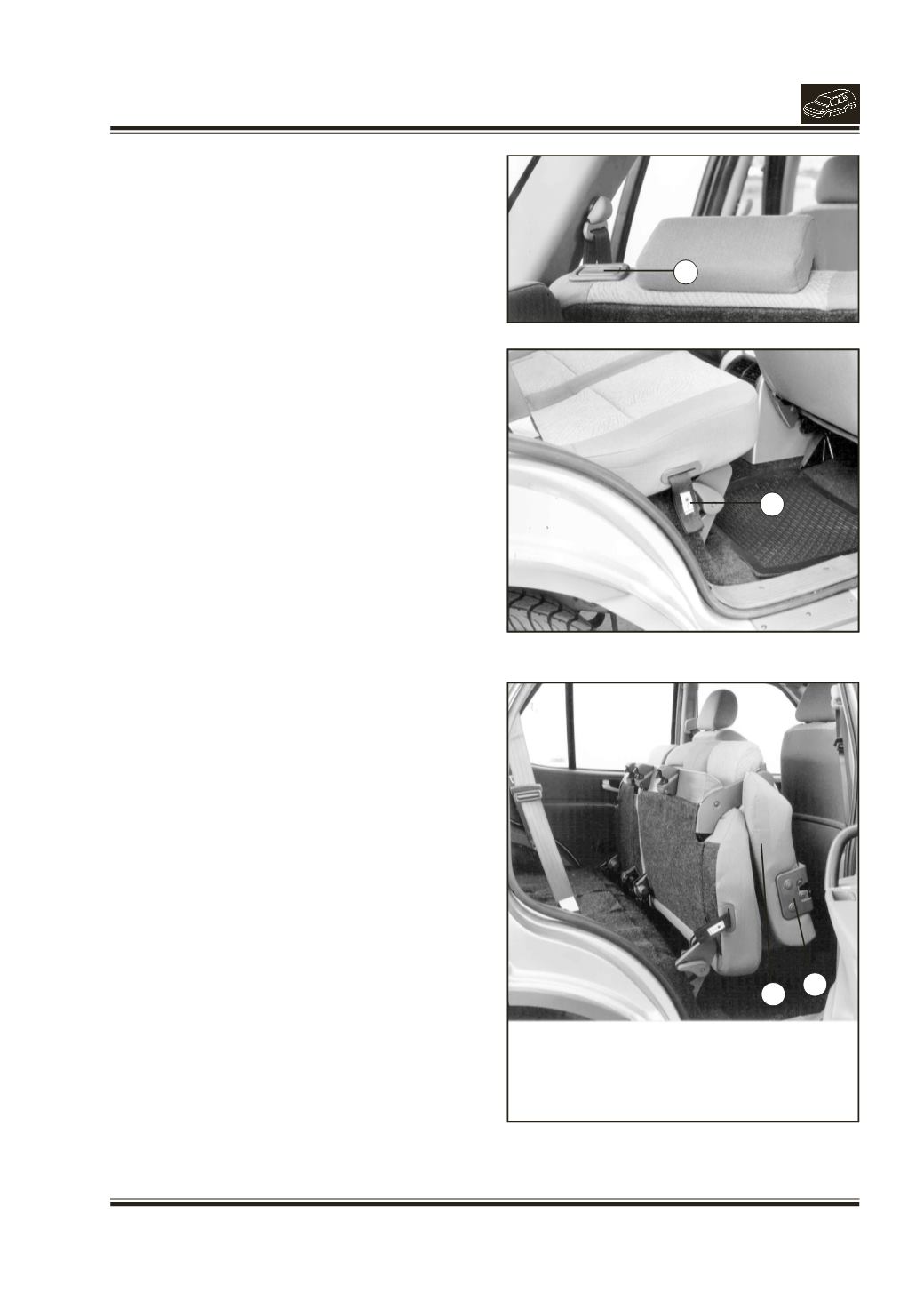

Fig. 24.
1.
LATCH
2.
BACK REST (REAR SEAT)
2
A
B
Fig. 25.
18. REMOVAL/INSTALLATION OF REAR SEATS
(Fig.
24 & 25)
REMOVAL
l
Release the latches at both side of back rest by
pressing the button A and then pulling the strap
B to fold the back rest.
l
Remove the mounting screws of rear split seat
from floor and remove the rear seat.
INSTALLATION
l
Fit the rear seat on the mounting bracket with hex.
screw (M8x20), spr. washers (B8) and bright
washers (8.4), 4 nos. at middle and 2 nos. each at
both sides and tighten the screws.
l
While installation of seat care should be taken for
seat belt, not to be caught between seat latch
and pin.
