12. REMOVAL/INSTALLATION OF DOOR MIRROR
(Fig. 17)
REMOVAL
l
Pry out plastic cover on mirror mounting screws
carefully, from inside of the door.
l
Disconnect wiring harness connector of the
mirror.
l
Hold the mirror, remove 3 mounting screws and
remove the mirror.
INSTALLATION
l
Locate mirror on the door properly.
l
Bring the motor harness connector inside from
the hole provided in the door.
l
Hold mirror properly in such a way that the three
mounting points align with the holes provided in
the door.
l
Fit and tighten the 3 mounting screws of the
mirror.
l
Connect the wiring harness connector of mirror.
l
Fit the plastic cover from inside.

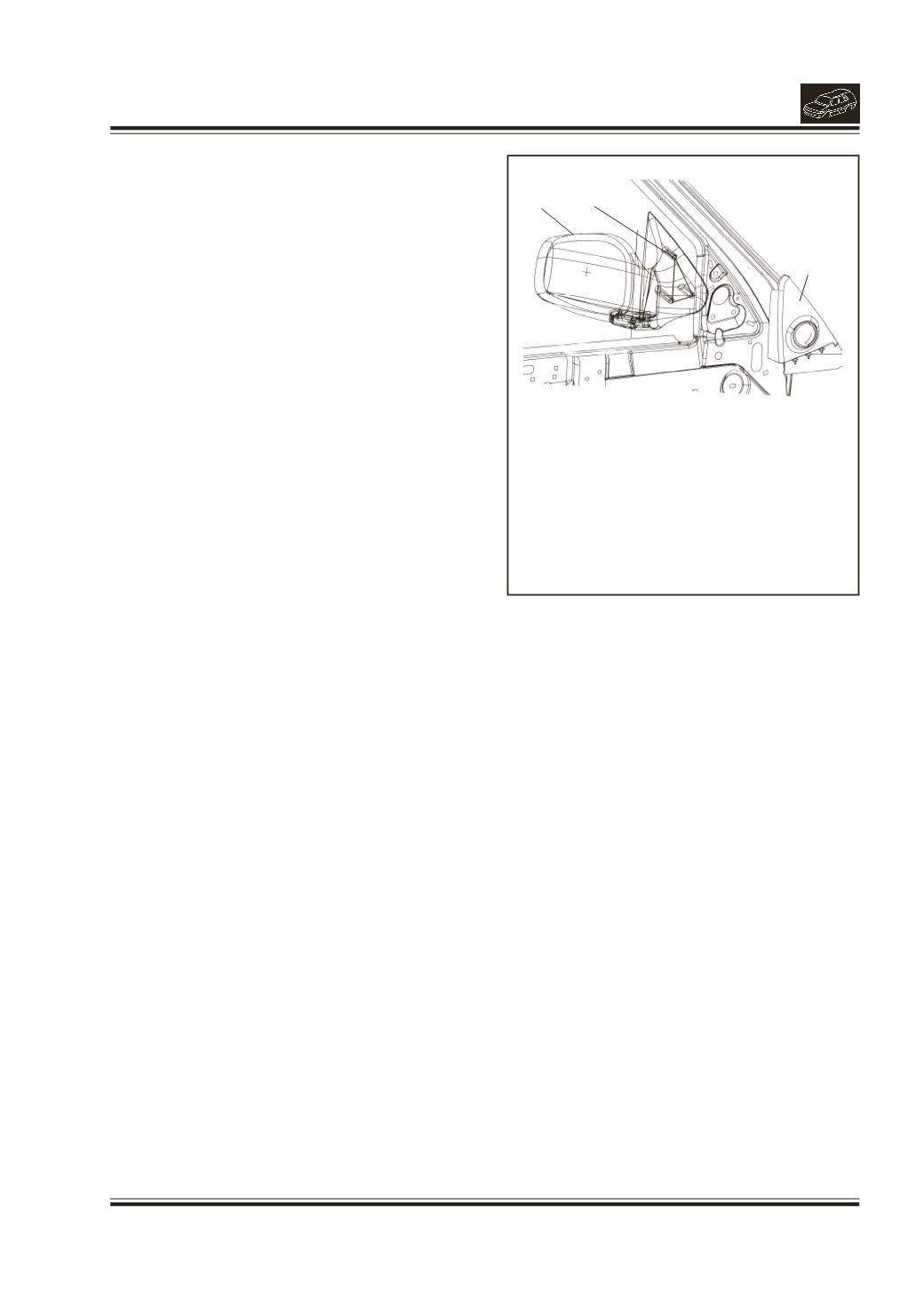

Fig. 17.
1. COVER
2. MOUNTING SCREWS
3. DOORMIRROR
3
1
2
