4 PL FUEL SYSTEM
FUEL LEVEL WARNING LIGHT (Fig. 17) :
1.
Drain fuel tank into an approved container refer
procedure as mentioned in fuel tank removal.
2.
Ensure that the car is parked on level surface.
3.
Add less than10 lit of fuel and turn the ignitionswitch
ON.
4.
The low fuel warning light should come on within
2 sec.
a) If light comes on go to step 5.
b) If light does not come ON or only comes ON
dimly checkwiring. If OK, remove combination
meter and check bulb. If bulb is OK, replace fuel
tank gauge.
5.
Add fuel so that the total fuel will bemore than 8 lit
and check that the light goes OFF.
a) If light does not goOFF,check for short circuit in
the wiring harness. If no short circuit, replace
fuel tank gauge.
b) If light goes OFF, turn the key OFF. Test is
complete.

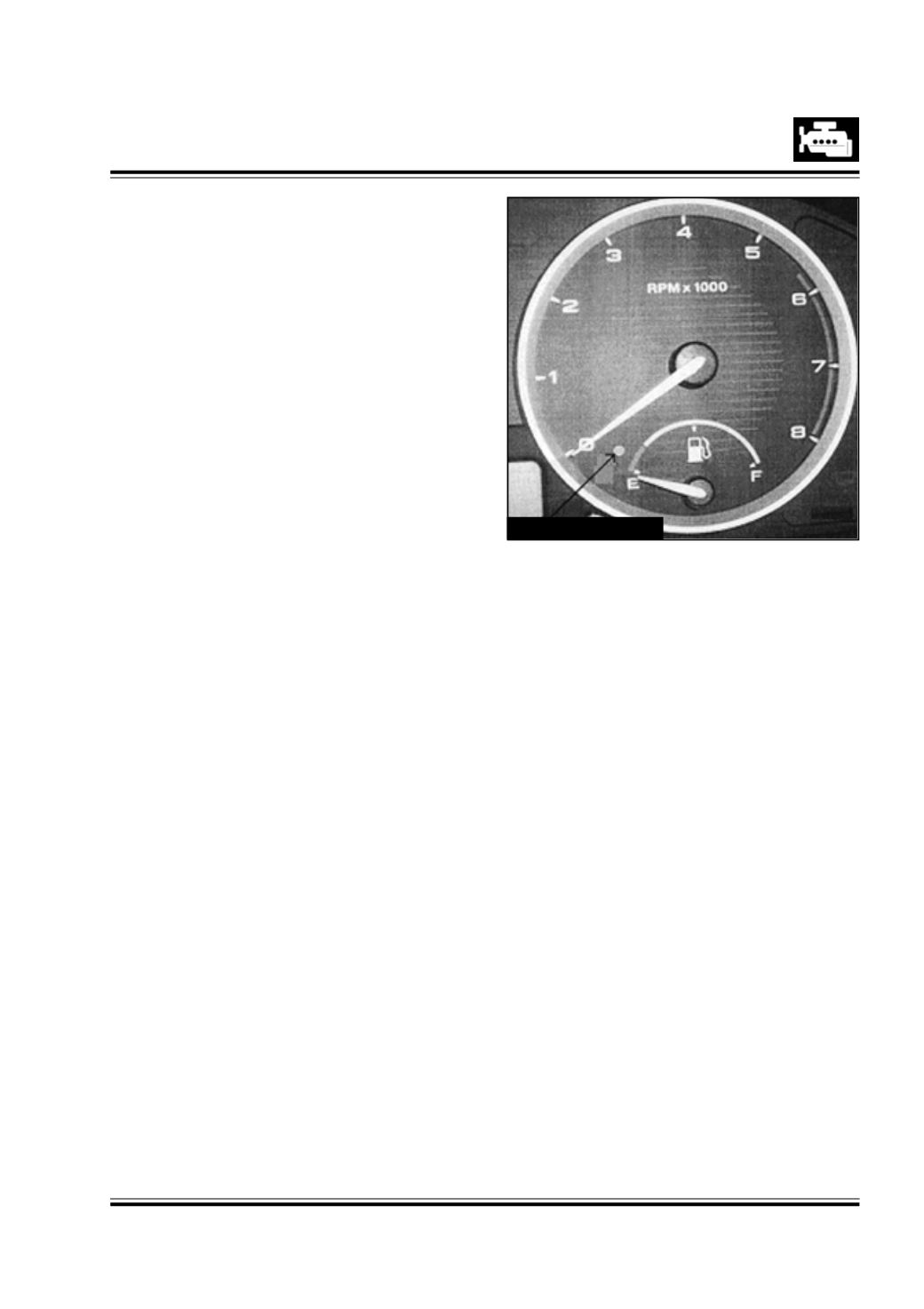

Fig. 17
Fuel Level Warning Light
