1080 / 1525
41
GEAR BOX G-76
v.
SUBASSEMBLYOF REVERSE IDLER GEAR
SHAFT
Fit the reverse idler gear along with roller ring on the
reverse idler shaft.
Fit snap ring over reverse idler gear shaft.
Ref Fig. 89

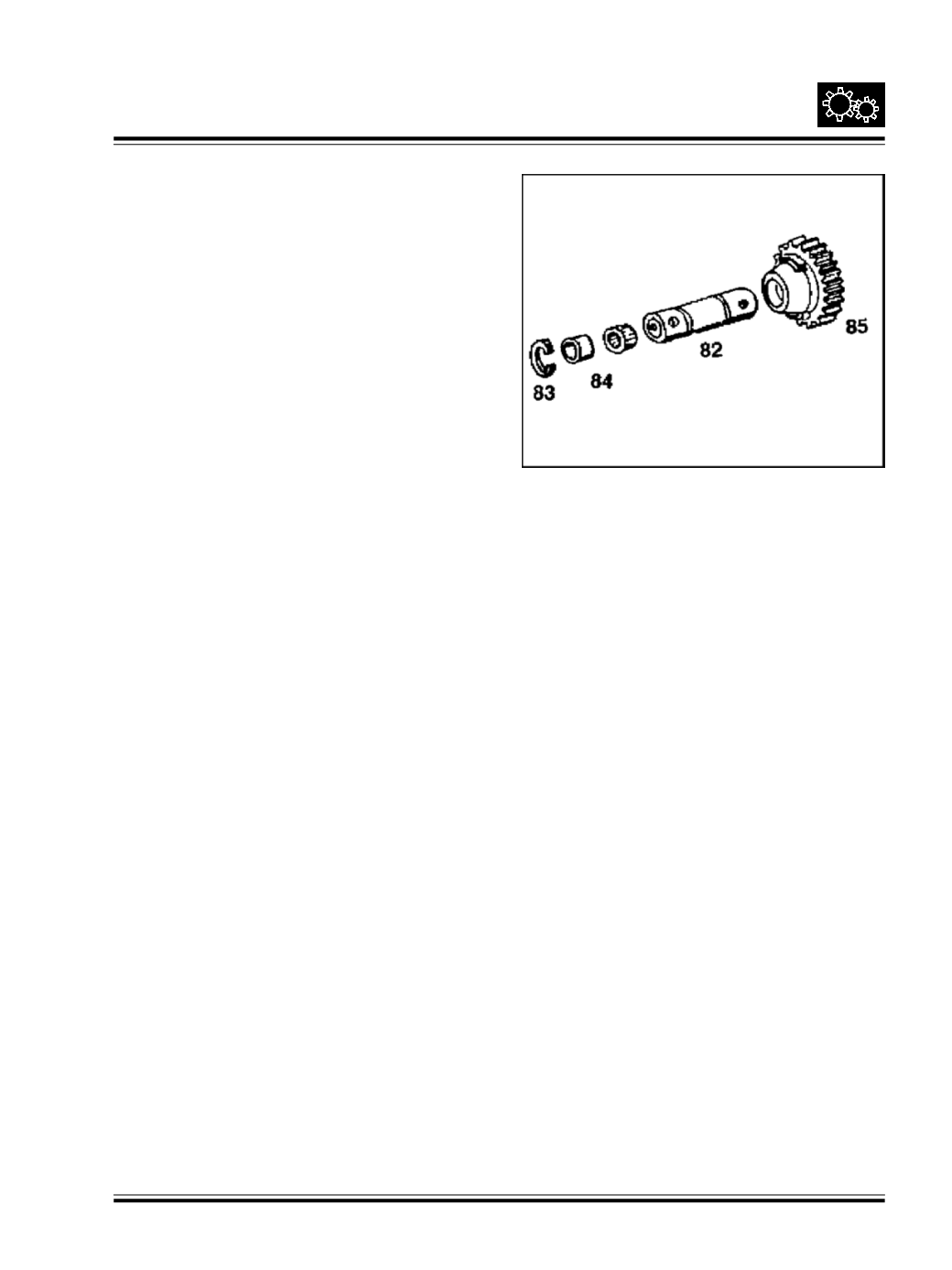

Fig. 89
|
|
