ENGINE2.2LDICOR

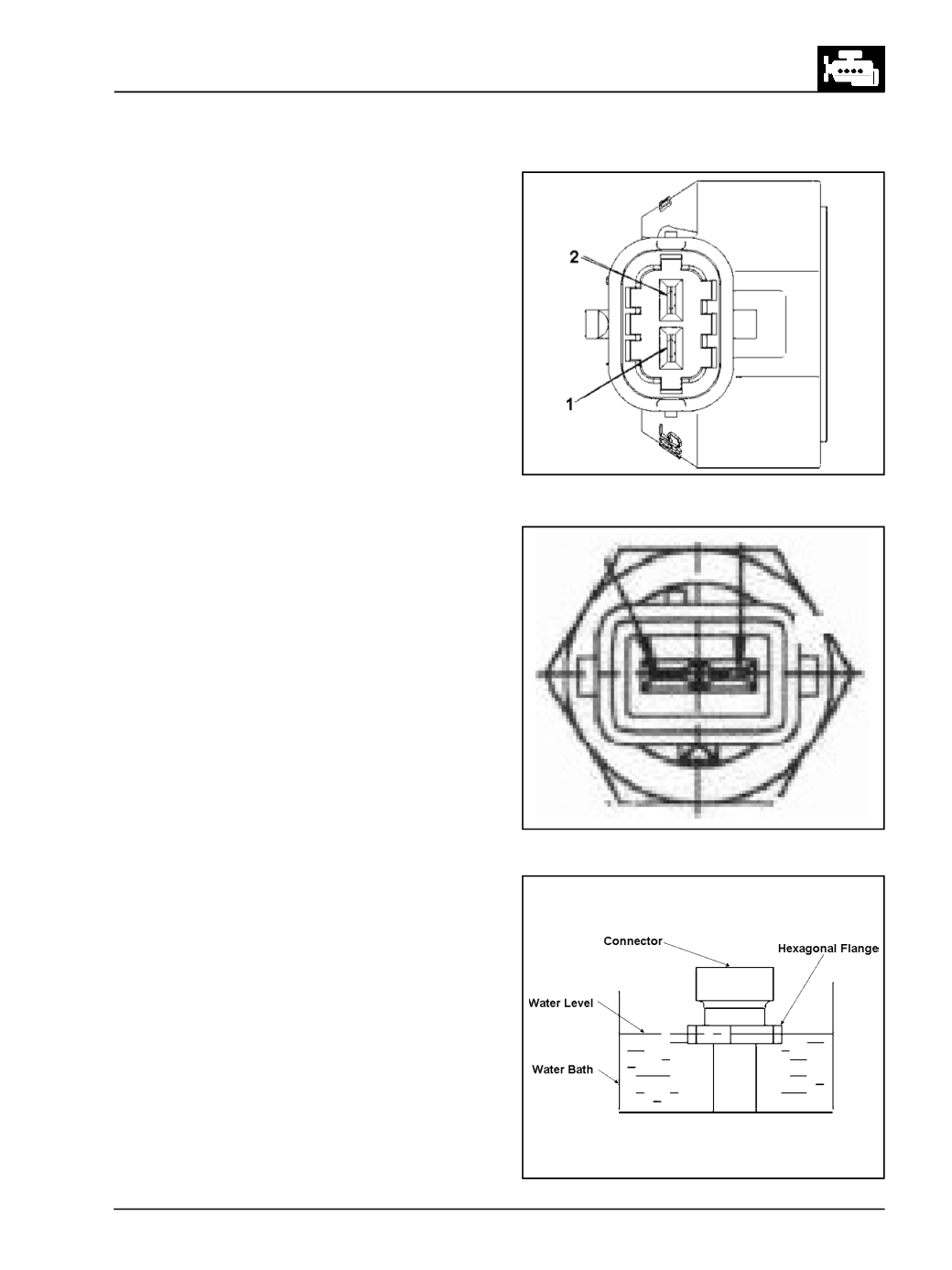

Knock Sensor (Accelerometer)
(Fig. 245)
PinAssignment
Pin 1 - Output ( Positive)
Pin 2 - Ground
CheckingCondition
Measure capacitance across the terminals using
Digital Multimeter.
Signal Output
Capacitance spec : 1850 ± 370 pF
Fig. 245
Fig. 246
Fig.247
Coolant Temperature Sensor
(Fig. 246)
PinAssignment
1. Ter 1
2. Ter.2
Equipment Required
(Fig. 247)
l
3 ½ Digital Multi-meter (DMM)
l
Water Bath
l
Heating arrangement for boiling the water
Measurement Set-up showing the water level up to
which the sensor should be dipped.
