ENGINE2.2LDICOR

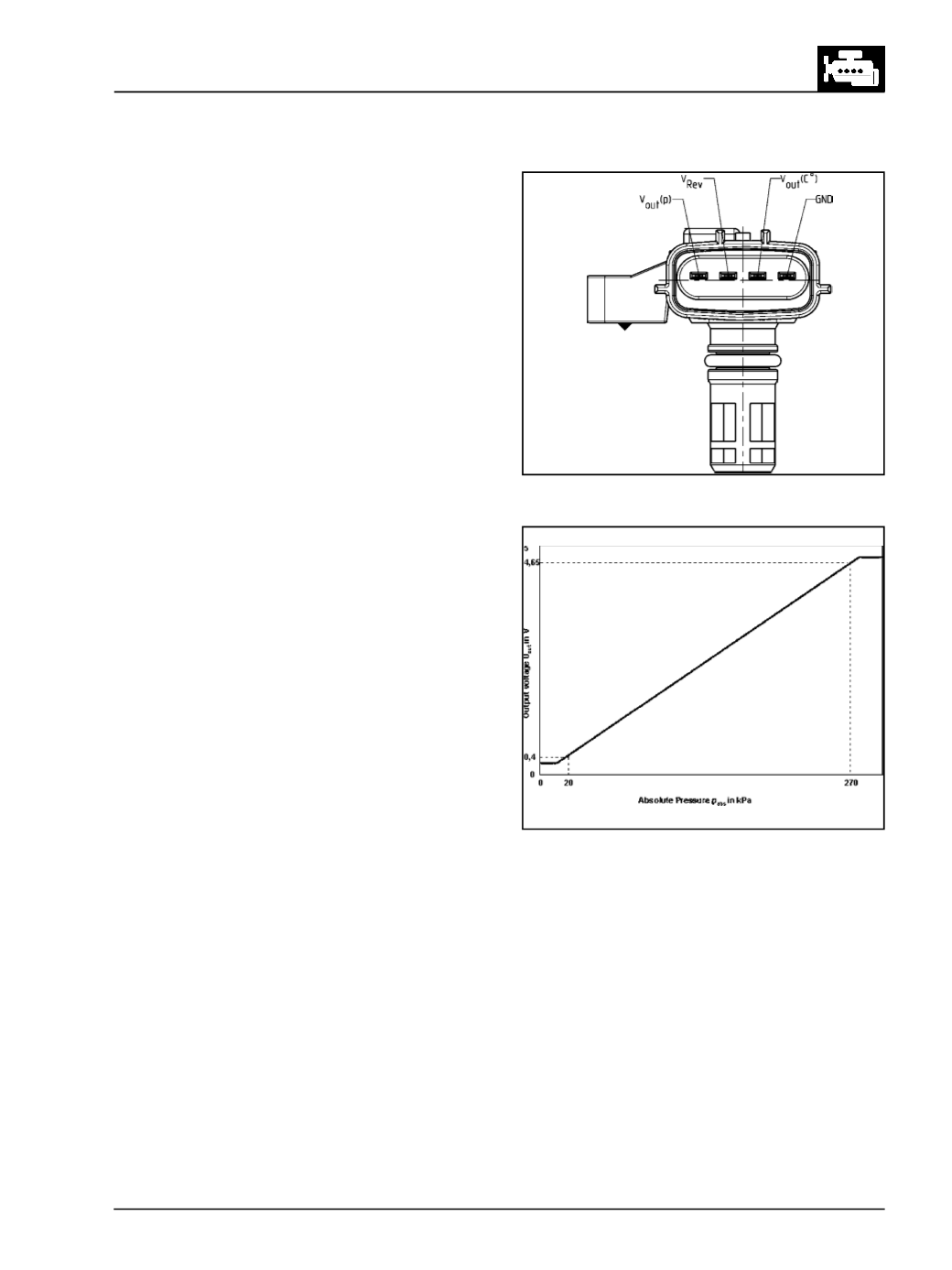

TMAP-Sensor
PinAssignment
(Fig. 241, 242)
Pin 1 :
Vout (P), Voltage output for pressure
Pin 2 :
Vref, Supply voltage
Pin 3 :
Temperature Signal
Pin 4 :
GND
Equipment
:
Use Multimeter
Power Supply :
5V
Checking
:
With Ingnition 'ON', Voltage
Condition
between Pin4 and Pin1.
Signal Voltage :
0,4V@20kPa (abs)
4,65V@270kPa (abs)
Fig.241
Fig.242
