SAFARI

AIR CONDITIONING

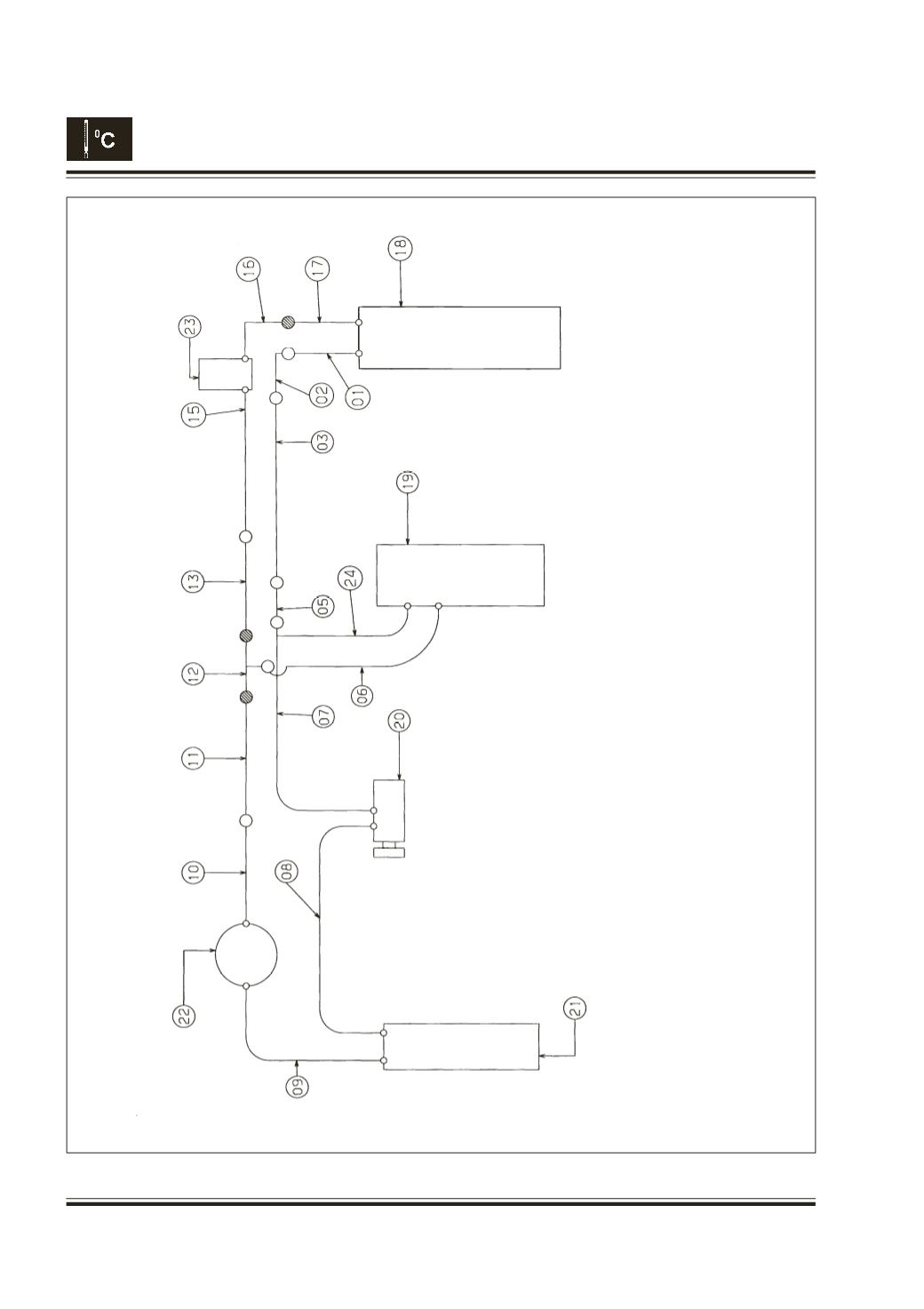

Fig. 5 - Circuit diagram of AC pipe lines (for Safari - 4DL with MF cond. + Roof AC)

1 Assy tube suction- (B Pillar)

2 Assy tube suction- (Chassis)

3 Assy tube suction- (Front Floor)

5 Assy. hose suction rear A. C.

6 Assy. tube liquid (HVAC IN)

7 Assy. hose suction - 4DL

8 Assy. hose discharge - 4DL

9 Assy. tube liquid condenser outlet

10 Assy. tube liquid R/D outlet

11 Assy. tube liquid W/Accessories

12 Assy. tube liquid 'T' joint

13 Assy. tube liquid (Rear A C after 'T' joint)

15 Assy. tube liquid (Front Floor)

16 Assy. tube liquid condenser outlet

17 Assy. tube liquid (chassis) subros

18 Assy. roof A. C. unit complete - subros (R-134a)

19 Assy. HVAC W/O Blower complete - Subros

20 Assy. compressor complete - Subros (R-134a)

21 Assy. Condenser complete - Subros

22 Assy. receiver/drier - subros

23 Assy. Solenoide valve W/Bracket complete

24 Assy. tube suction - 4DL

CONDENSER

COMPRESSOR

R/D

HVAC

VALVE

SOLENOID

ROOF AC UNIT
