SAFARI

AIR CONDITIONING

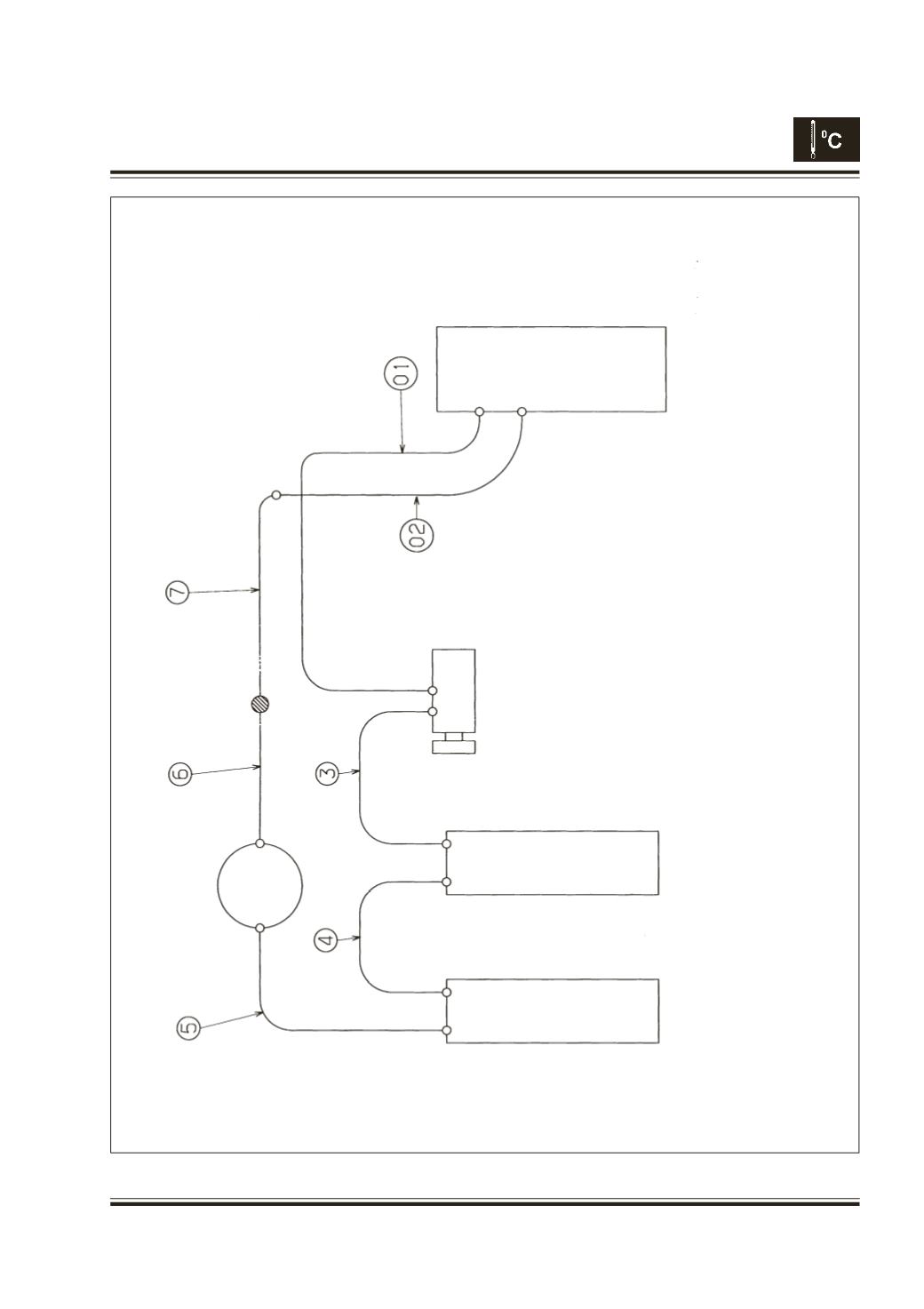

Fig. 4 - Circuit diagram of AC pipe lines (for Safari with serpentine cond. & single AC)

1 Assy hose suction- (4 DL + ABS + ECO AC)

2 Assy tube liquid (A.C. Unit in)

3 Assy. hose discharge - 4DL

4 Assy. tube liquid (Main to sub cond)

5 Assy. tube liquid (Sub cond. outlet)

6 Assy. tube liquid (R/D outlet)

7 Assy tube liquid W/Accessories

SUB CONDENSER

MAIN CONDENSER

COMPRESSOR

HVAC

R/D
