10

AIR CONDITIONING

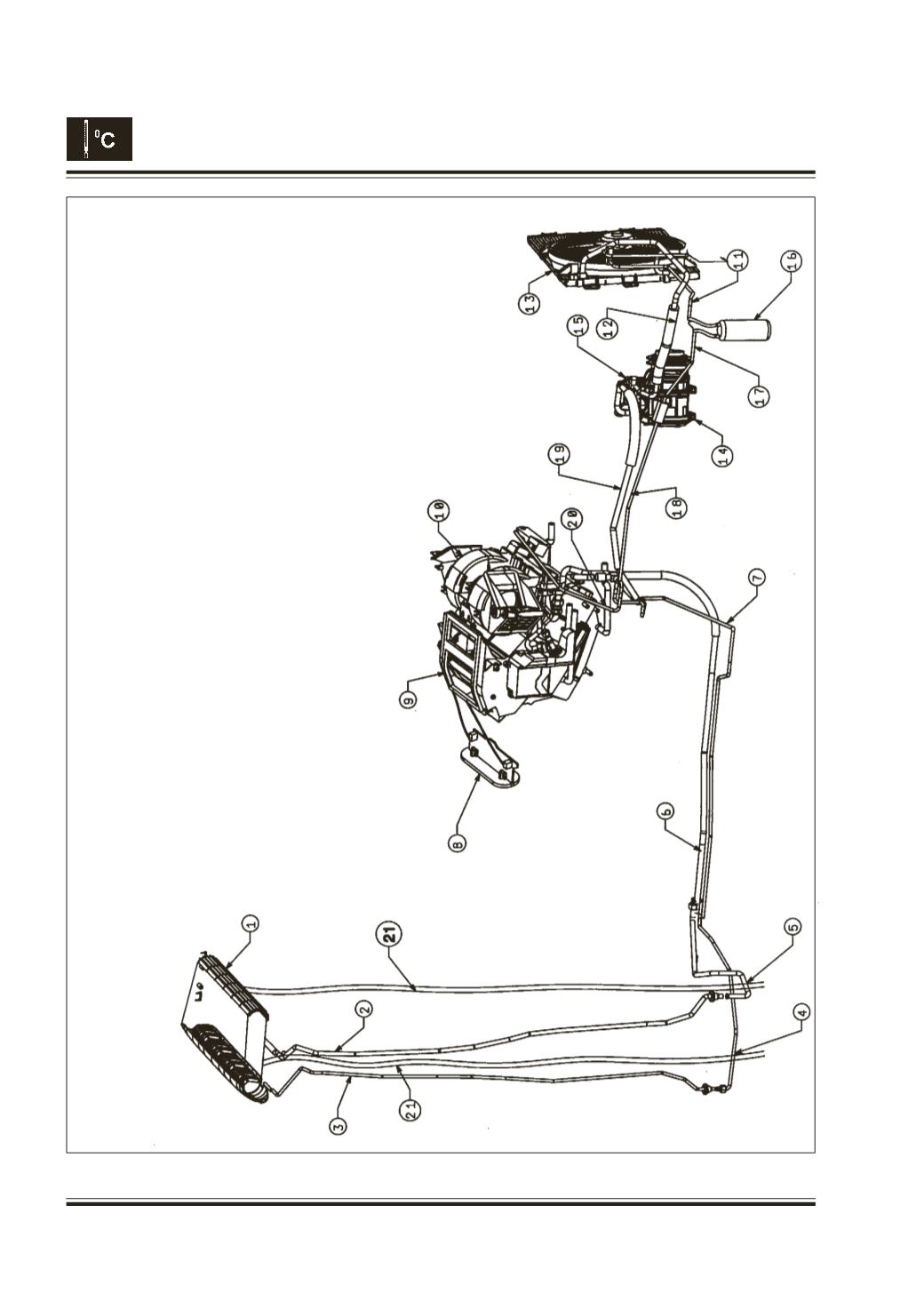

Fig. 3 - Layout for Safari roof A/C

S.NO. PARTNAME

1

Unit Assy Roof AC

2

Tube Suction

3

Tube Liquid

4

Tube Liquid

5

Tube Suction

6

Hose Suction

7

Tube Liquid

8

Control Panel

9

Cooling and Hootor

10 Blower Units

LAYOUT FOR SAFARI ROOF A/C

11 Tube Liquid

12 Hose Discharge

13 Condenser Assy.

14 Comp. Assy. W/Mag. Clutch

15.

Comp. Mtg. Bkt.

16 Tank Receiver

17 Tube Liquid

18 Tube & Acc. Assy.

19 Hose Suction

20 Tube Liquid

21 Hose Drain
