ELECTRICALS

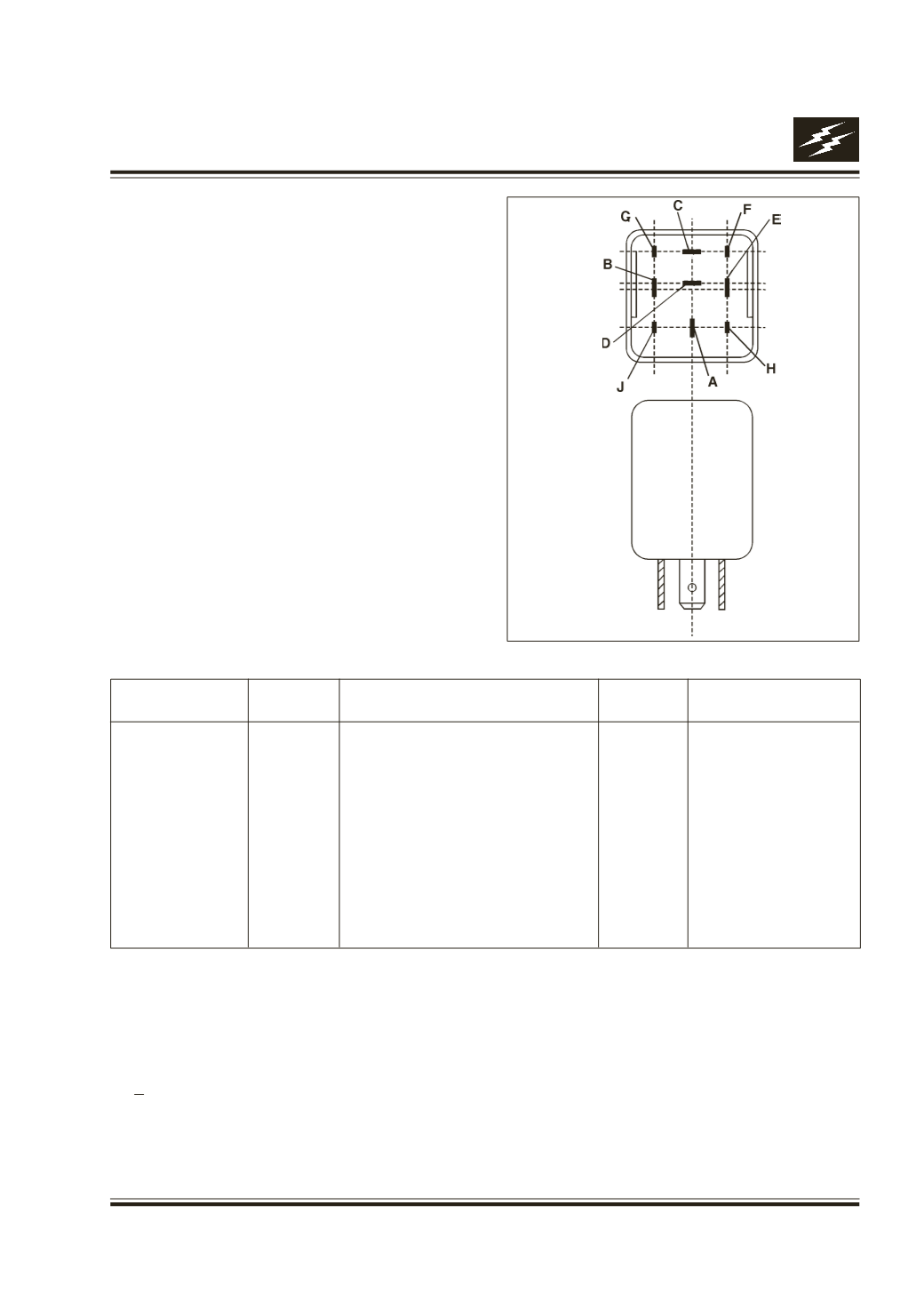

Fig. 48
17E. INTERIOR LIGHT DELAY UNIT
Fig. 48
Function
It delays switching off the “Courtesy” lamp within
the passenger area of the vehicle once the doors
are closed, so as to allow some light for inserting
the ignition key.
Location
Behind glove box on fire wall.
Performance check
When any of the door inputs (Ter. H, J, D, F or G) is
active while ignition input (Ter. C) is inactive, output
(Ter. A) is made active remains for a time duration of
11 + 3 sec. after all inputs (Ter. H,J,D, F and G)
becomes inactive. If during this period ignition input
(Ter. C) becomes active, output (Ter. A) becomes
inactive within 1 sec.
Connection details
Terminal Name Ter. Type Description
Active Condition
Level
H
Input
Driver door switch
GND Door Open
J
Input
Front passenger door switch
GND Door Open
D
Input
Rear left passenger door switch
GND Door Open
F
Input
Rear right passenger door switch GND Door Open
G
Input
Tail gate door switch
GND Door Open
A
Output
Output to lamps
GND
B
Supply
Supply to unit
VCC Permanent
E
Ground Ground to unit
GND Permanent
C
Input
Ignition Switch on
VCC I/G Position
