SAFARI

ELECTRICALS

17. CONTROL UNITS

17A. Heated rear window controller :

(If fitted).

Function

When facia switch for ‘Heated Rear Window’ ‘ON’,

heating element on tailgate glass gets supply for 15

minutes. Supply to tailgate glass heating element gets

cut off, if during activation time ignition supply is cut

off.

Location

In cabin fuse box

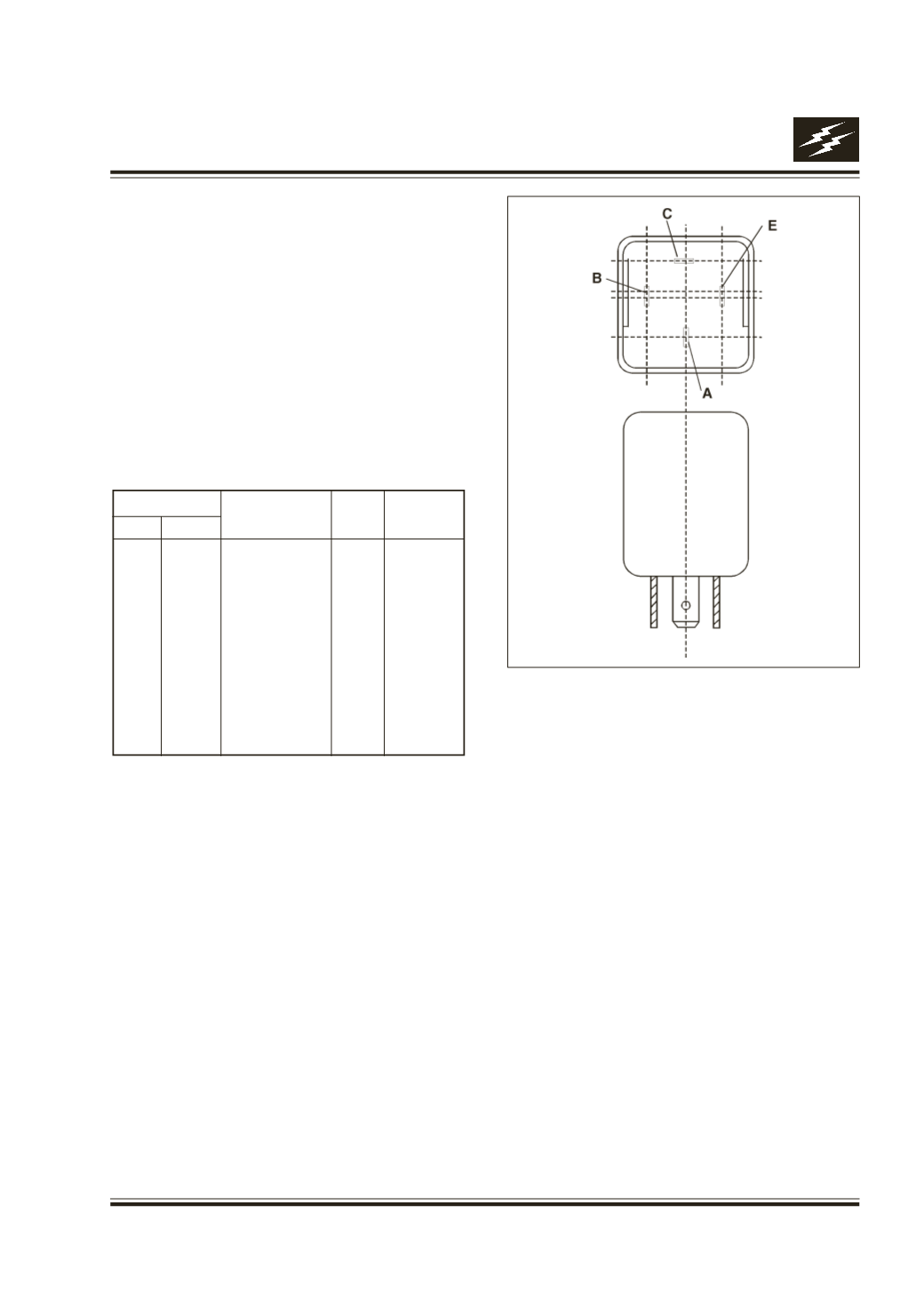

Connection details Fig. 44

Terminal

Description Active Condition

Name Type

Level

C Input

Heated Rear

VCC Switch on

Window Switch

B Supply Ignition

VCC I/G

Switch ON

Position

E Ground Ground to

GND Permanent

Unit

A Output Output to Rear VCC

Window

Heating element

Performance check

When ‘Heated Rear Window Switch (TER C)’

becomes active for 0.5 sec. (TYP) then ‘Output

(TER A)’ becomes active for 15 min.

Output (TER A) becomes inactive every time

‘Supply (TER B Ignition SW) becomes inactive

or ‘Heated Rear Window Switch (TER C)’

becomes active during active period of output

(TER A).

Fig. 44
