17B. BUZZER UNIT

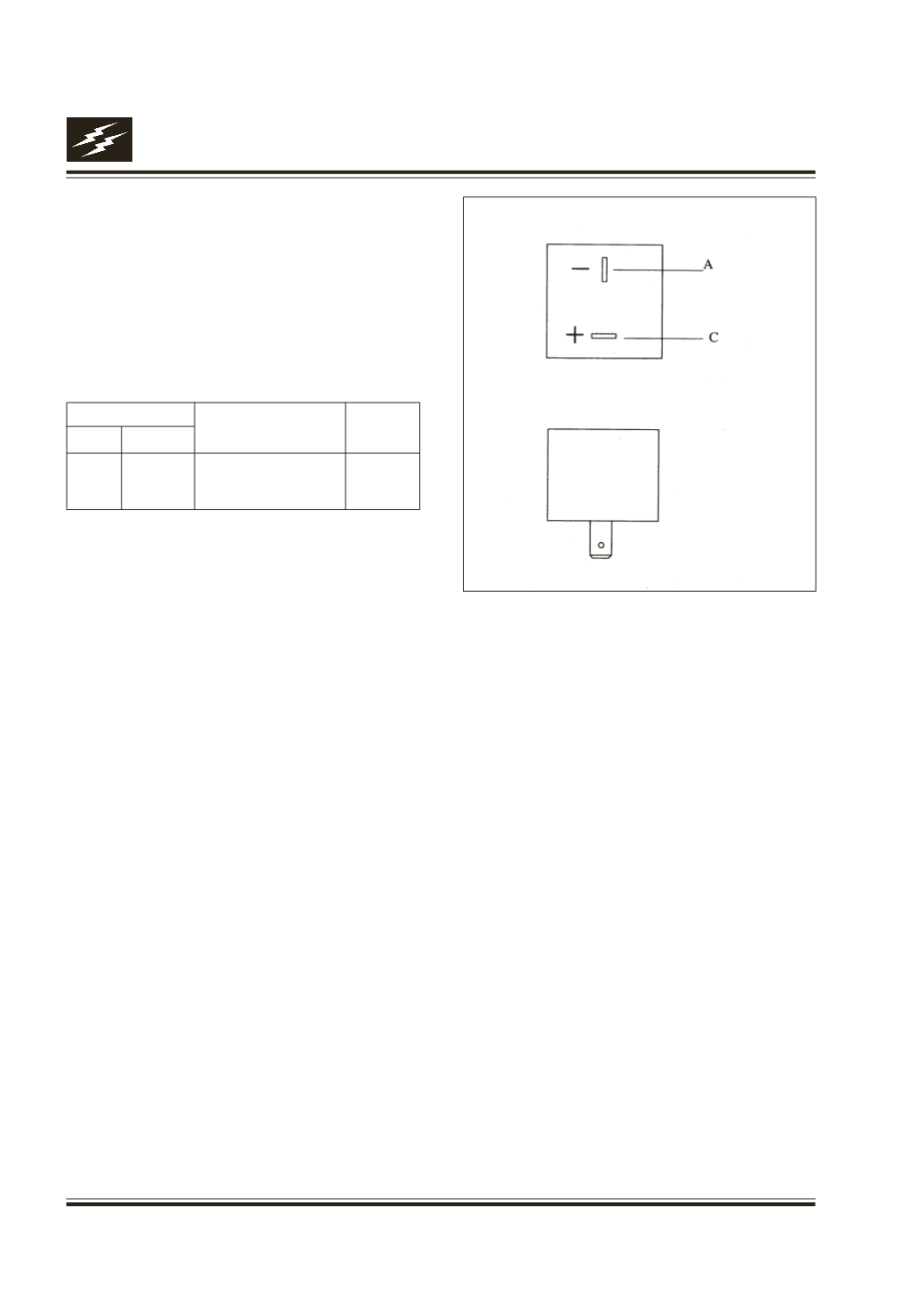

Fig. 45
Function
Its function is to generate the warning sound to
alert the driver about any abnormal condition of
the vehicle. It receives the input from the chime
unit.
Location
Behind the glove box on fire wall.
Connection details
Terminal
Description
Active
Name Type
Level
C Input
Chime Unit output
VCC
A Ground Ground to Unit
GND
Performance check
Sound
: Sound output should not
show a cracking sound.
Tone should be good for
entire voltage range.
Buzzer type : Continuous on.
