SUSPENSION
4. REMOVAL/DISMANTLINGPROCEDURE
4A. REMOVAL OF REAR SHOCK ABSORBER
(Fig. 27)
l Loosen and remove the bolt holding rear shock
absorber at the bracket on rear axle.
l Loosen and remove the nut holding rear shock
absorber top.
l Remove the shock absorber.
4B. REMOVAL OF REAR ANTIROLL BAR
(Fig. 25)
l Loosen the bolts and remove bolts holding antiroll
bar at connecting Links.
l Loosen & remove screws holding anti roll bar at
bearing block on rear axle.
l Take out the antiroll bar.
4C. REMOVAL OF PANHARD ROD (Fig. 26)
l Loosen and remove the bolts & nuts connecting
panhard rod to the bracket on rear axle (Fig. 28)
and bracket on chassis frame.
l Take out the panhard rod assembly.

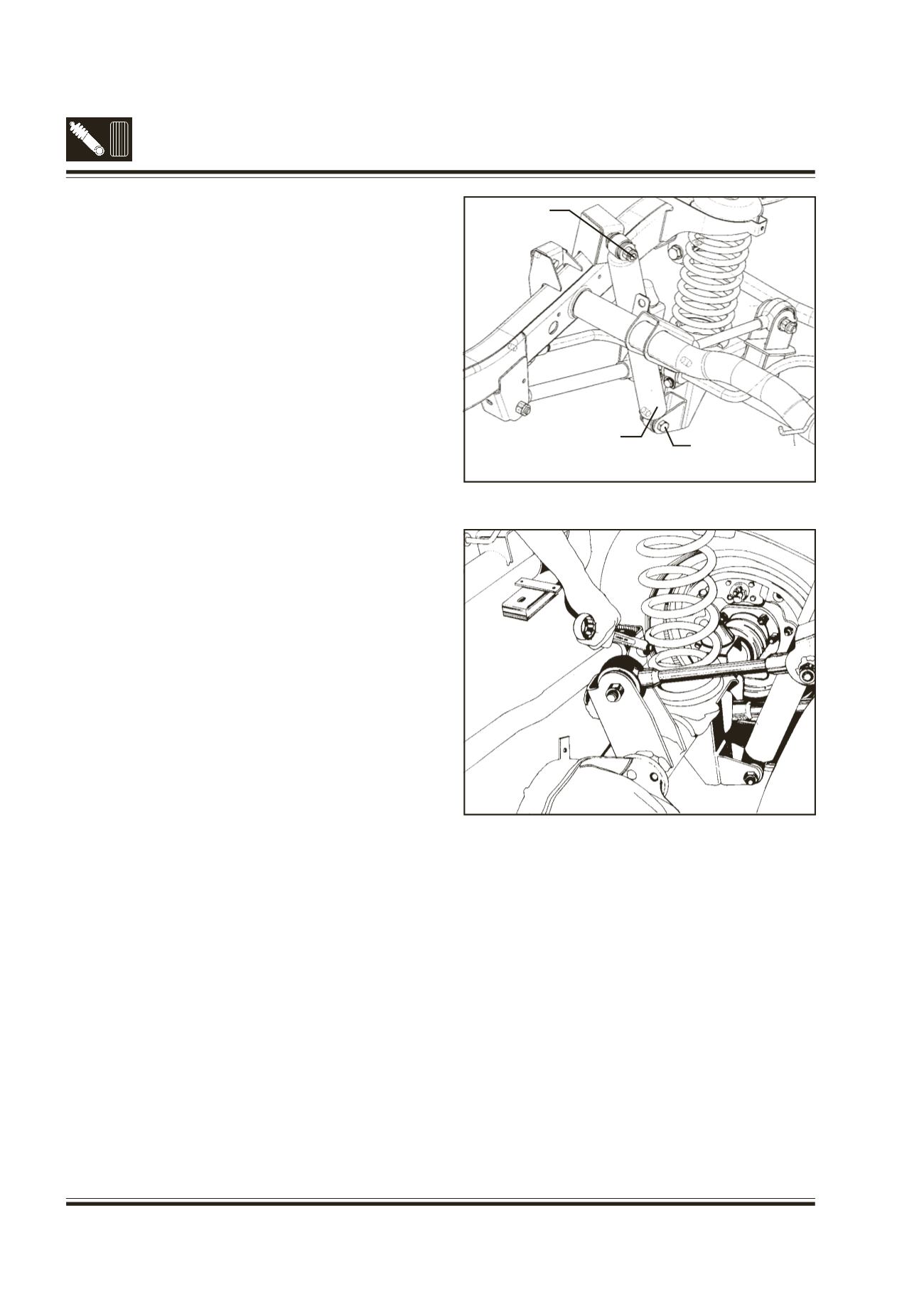

Fig. 27 - Removal of shock absorber
Fig. 28 - Removal of panhard rod frombracket on rear axel
NYLOCNUT
REARSHOCKABSORBER
HEX.BOLT
NYLOC NUT
BRT. WASHER
