29
SUSPENSION

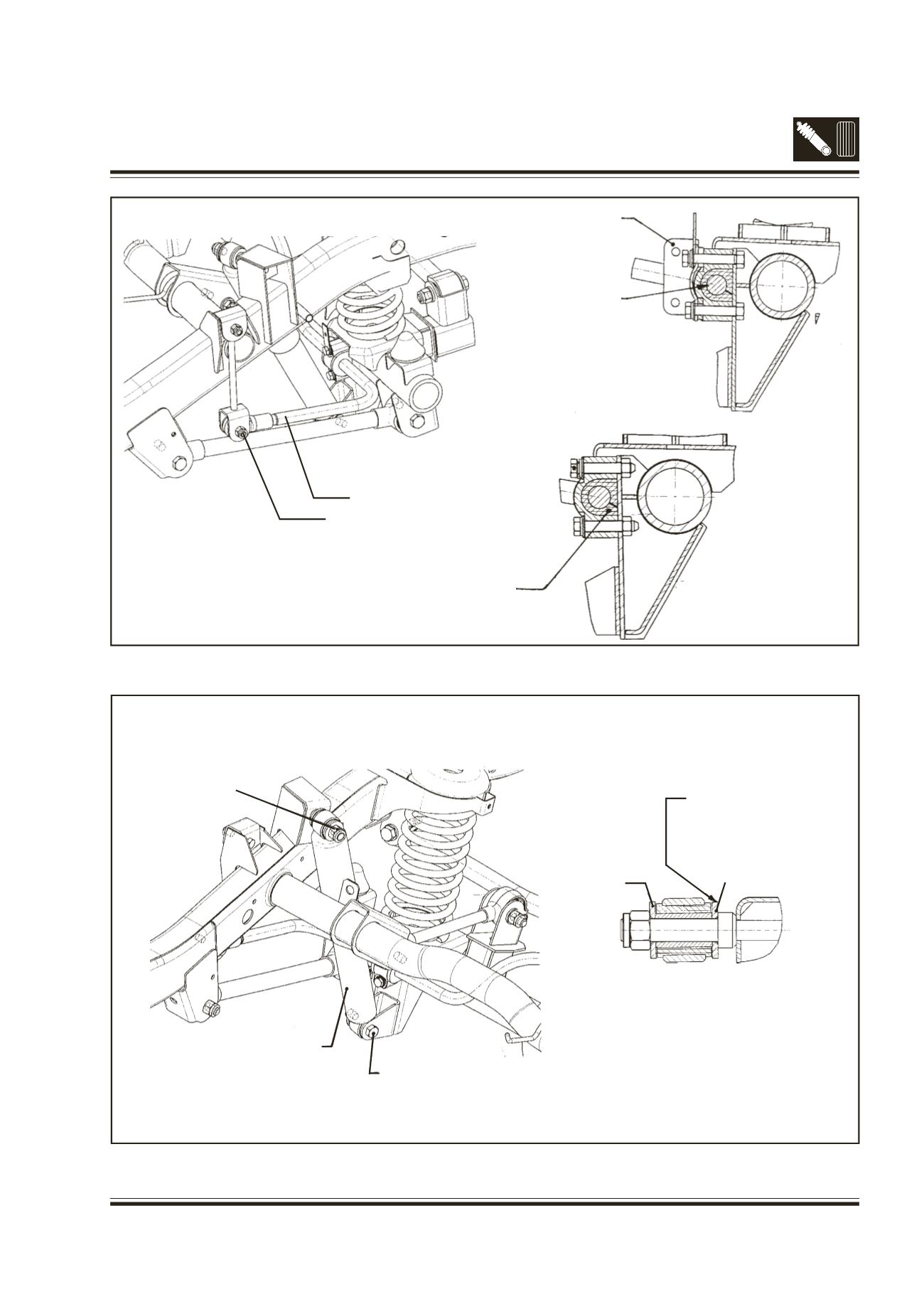

Fig. 33 - Installation of antiroll bar
Fig. 34 - Installation of shock absorber
HEX.BOLT
SPRINGWASHERB10
BRT.WASHER10.5
TORQUE - 4.5 mkg.
BEARINGBLOCK
REAR ANTIROLL BAR
MOUNTING RH SIDE
L.C.R.V. LINK
MOUNTINGBRACKET
SILICONGREASEMOLYKOTE 33
(MEDIUM)TOBEAPPLIEDONANTIROLL
BAROVERBEARINGWIDTHONR.H.AND
L.H. MOUNTING.
REARANTIROLLBAR
MOUNTINGLHSIDE
REARANTIROLLBAR
HEX. BOLT M12 X 55
NYLOCNUTM12
TORQUE - 4 mkg.
NYLOC NUT M16 x 1.5
TORQUE - 6-7 mkg.
REARSHOCKABSORBER
HEX.BOLT M14 X 1.5 X 70
NYLOC NUT M14 X 1.5
BRT.WASHER
WASHER
CHAMBEROFTHISWASHER
TOWARDSCORNERRADIUS
OFMOUNTINGPIN
WASHER
SHOCKABSORBER
MOUNTINGTOP
