SAFARI

ELECTRICALS

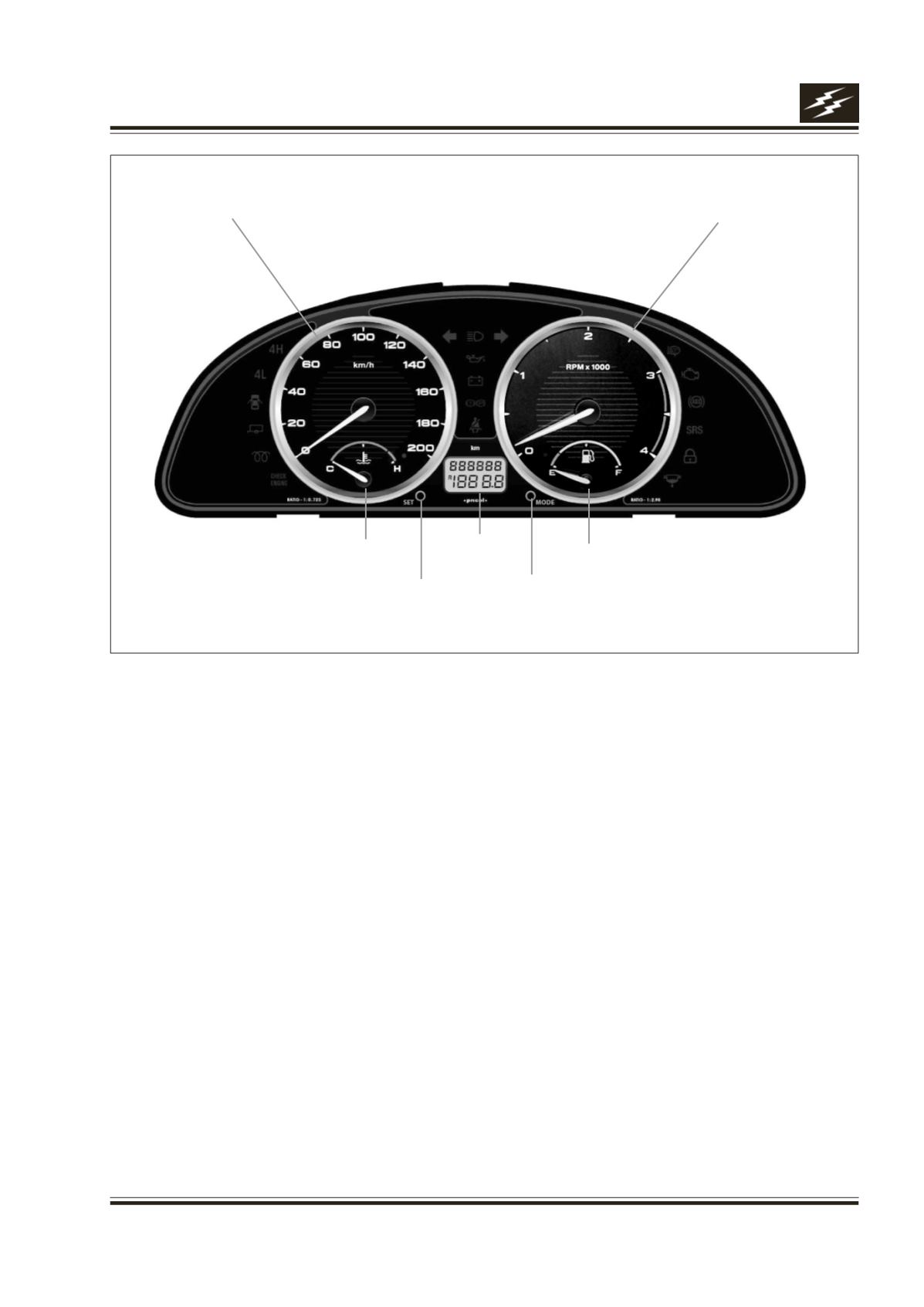

Fig. 9

Temperature

Gauge

Speedometer

RPM Meter

LCD

INSTRUMENT CLUSTER

(Dicor)

Fuel

Gauge

Mode Knob

Set Knob

Note : For some countries,Speedometer is also with Miles/hr. (in addition to kilometres/hr.)

Removal :

1. Remove the bazel & remove screw / cagenut from

instrunment cluster.

2. Push the cluster from the back.

3. Remove electrical connectors.

Fitment :

1. Fit the mating connectors of W/H cabin in

respective cavities of Inst. Cluster.

2. Insert the nyloc cage nuts in locating points on

dashboard.

3. Align the axis of 3 mounting points of bazel on

holes provided on armature, fix the bazel by

tightening the fasteners.

4. Ensure 2mm gap between lens surface and bazel.
