5. FUSES & RELAYS

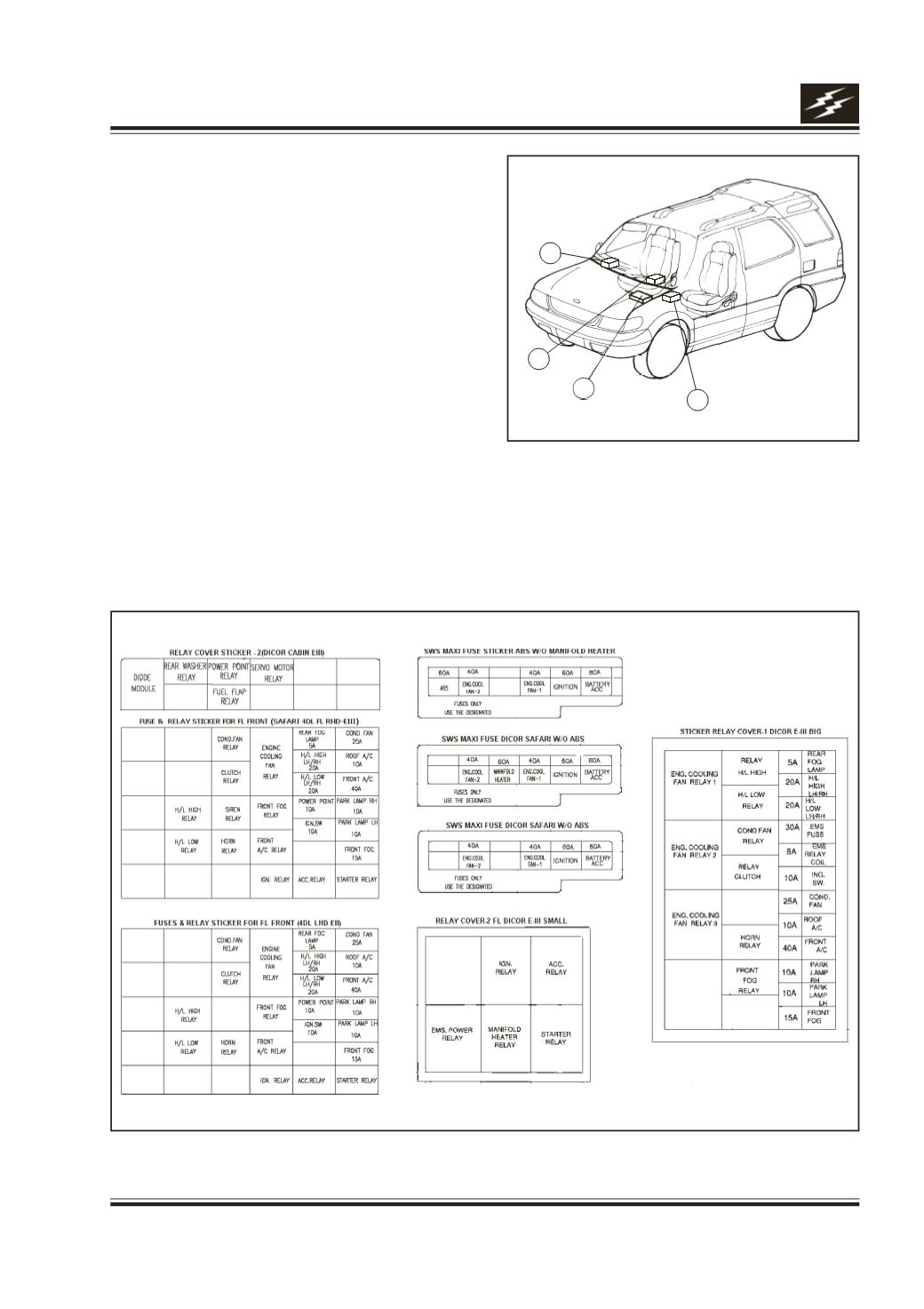

Location of Fuses, Relays & Controllers : Fig. 1 & 2
1. Location of Engine compartment Relay Fuse Bank
2. Location of Cabin compartment Fuse Bank (below
Dashboard drive side)
3. Location of Cabin compartment Relays /
Controllers under glove box
Fig. 1
1
2
3
2
(
for LHD)
