SAFARI

4 DLT ENGINE

EXHAUST SYSTEM

The Exhaust System consists of exhaust pipes,

catalytic converter and silencer. The exhaust gases

emitted from engine consists of (harmful pollutants

like Co, Nox, Unburnt hydro carbons & particulate

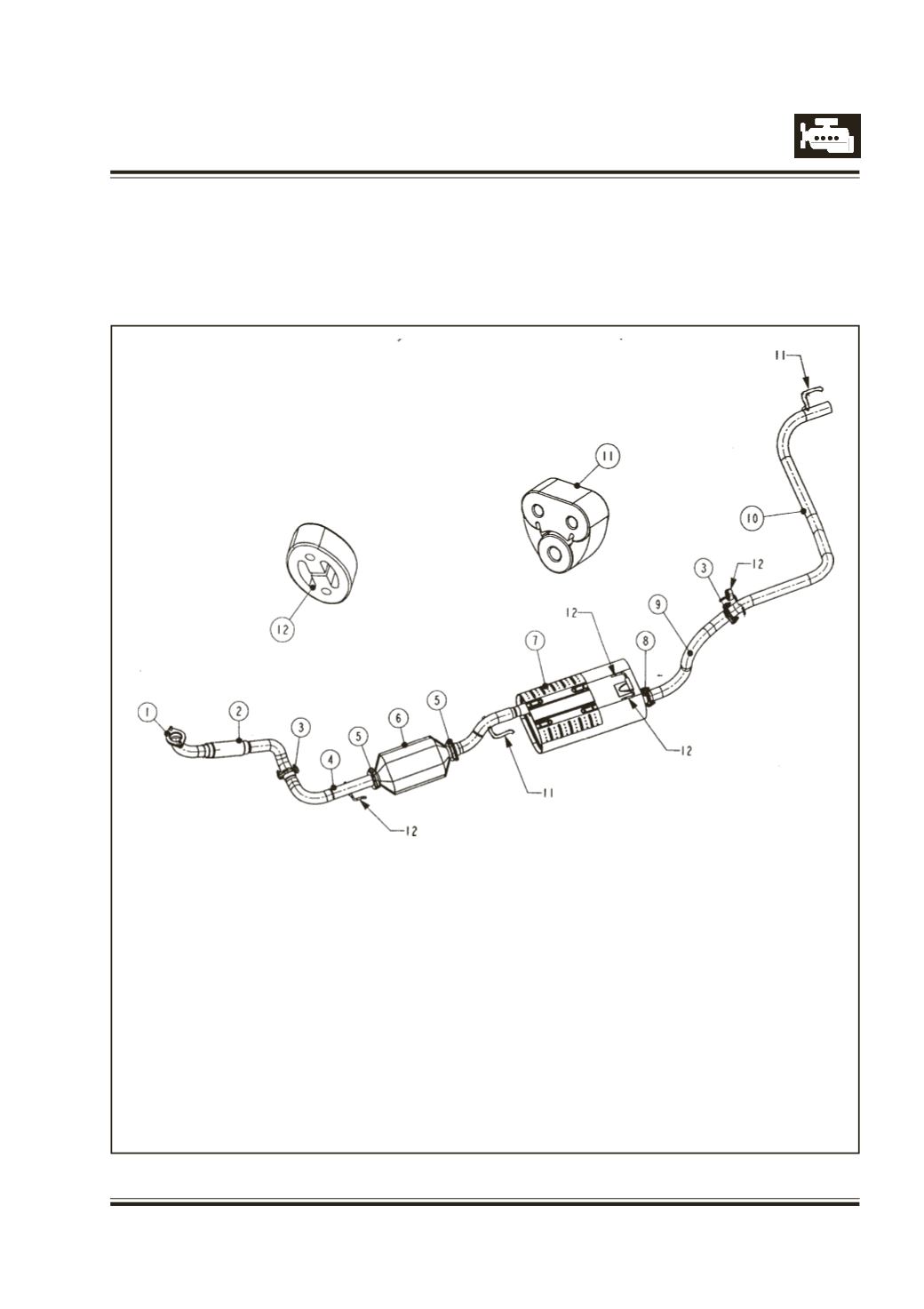

List of Aggregates in the exhaust system :

1 Gasket

2 Assy. Exhaust pipe front

3 Assy. Gasket (M/S talbros Auto)

4 Assy. Exhaust Pipe-cat front

5 Gasket

6 Assy. cat convertor

Fig. 188

matter) The two way diesel oxidation catalytic

converter reduces the pollution before exhaust gases

are released to atmosphere. Thus protecting the

environment.

7 Assy. Exhaust pipe with silencer

8 Gasket (m/s Talbros Auto)

9 Assy. Exhaust pipe rear (silencer end)

10 Assy. exhaust pipe rear complete

11 Rubber hanger

12 Rubber hanger
