1356 / 1588
ENGINE
157
01,
GASKET EXH MANIFOLD
02,
EXHAUST MANIFOLD
03'
WASHER
04'
HEX BOLT
05,
STUD
06'
GASKET (TURBO CHARGER
TO EXH MANIFOLD)
07,
ASSY TURBOCHARGER
(TEL)
08'
HEX FL NUT
09'
HEX SCREW
10 WASHER
11 STUD
12 GASKET (TC TO INT.PIPE)
13 INTERMEDIATE PIPE (DICR)
14 HEX FL NUT
15 ASSY. HEAT SHIELD.(4SP
DICR)
16 PLUNGER BY PASS VALVE
17 SPRING PRESSURE RELIEF
VALVE
18 SEALING WASHER
19 ADAPTOR
20 ASSY.EGR TUBE
21 HEX NUT
22 EGR VALVE (PROGRESSIVE
TYPE)
23 GASKET (EGR VALVE TO
AIR INTAKE ELBOW)
24 HEX SCREW
25 SEALING PLUG
26 SEALING WASHER
27 ASSY. OIL LINE (OIL
COOLER TO T.C.)
28 PIPE UNION BOLT
29 SEALING WASHER
30 ASSY.FLANGE
31 GASKET (TC OUTLET TO
FLANGE)
32 RUBBER HOSE (TC OUTLET
TO OIL SUMP)
33 HOSE CLAMP
34 VACUUM MODULATOR
35 HEX FL SCREW
36 HEX SCREW
37 SUPPORT (AIR INTAKE
ELBOW)
38 HOSE(T-CONNECTOR TO
MODULATOR)
39 HOSEMODULATOR TO EGR
VALVE)
SR.
DESCRIPTION
NO.

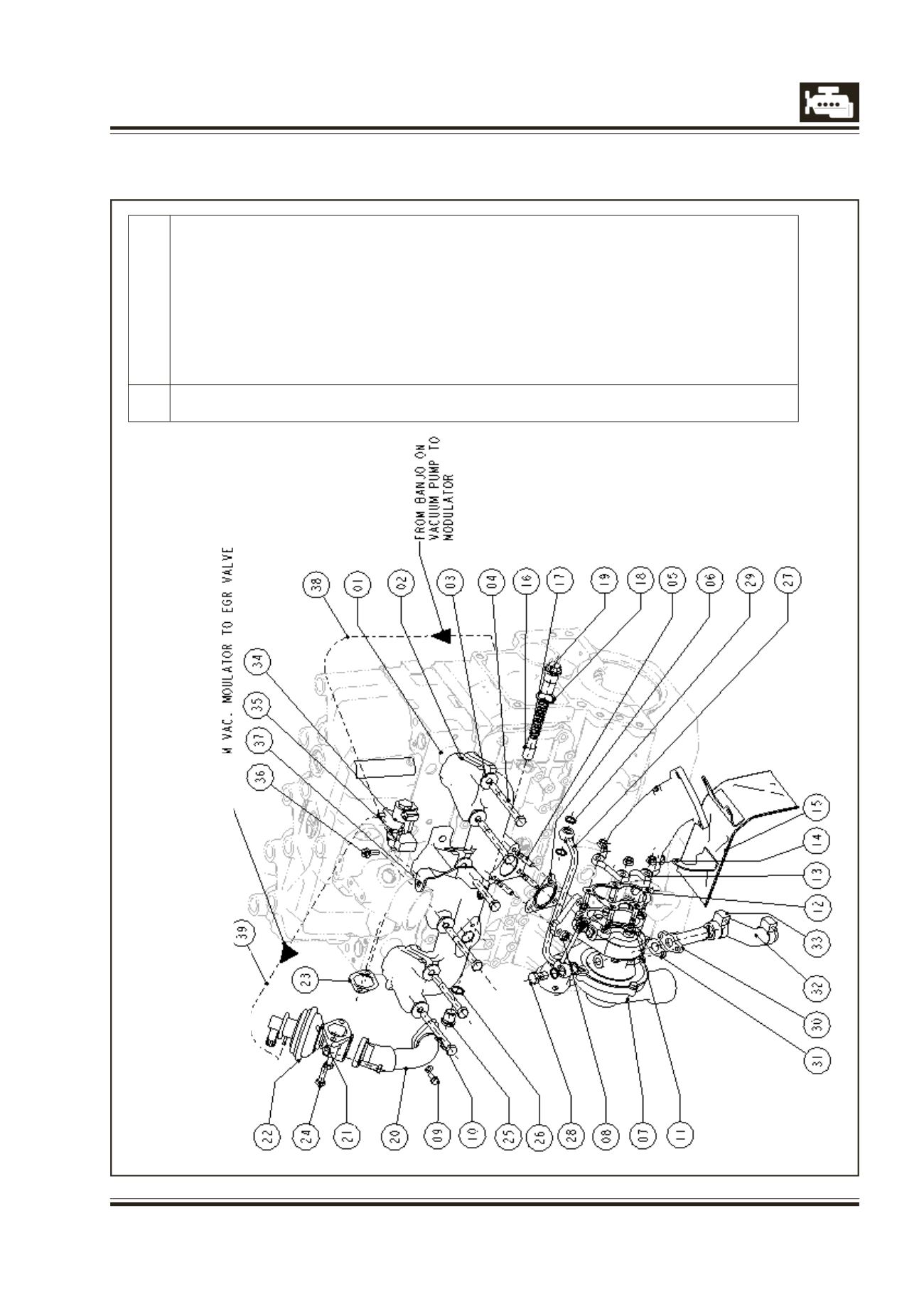

EXHAUST MANIFOLD - TURBOCHARGER AND EGR
EXPLODED VIEWS
