ENGINE
44

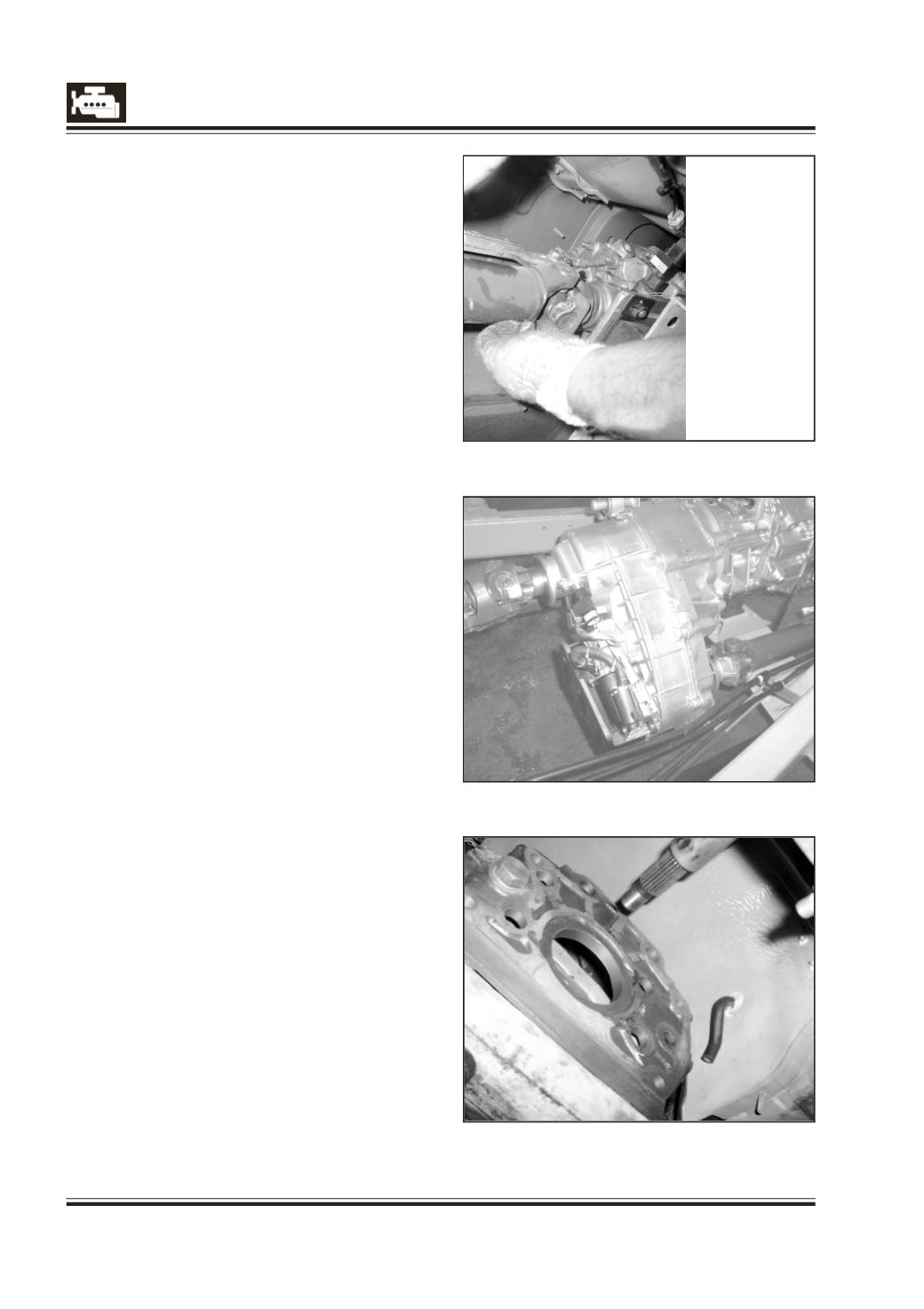

Fig. 14
Fig. 15
Fig. 15a
8.
Support the gear box from the lower side
l
Remove gear shift lever from inside the
vehicle
l
Disconnect propeller shaft at gear box end
(fig. 14)
l
Remove Slave Cylinder
l
Remove Gear Box mounting bolts to the
clutch housing
l
Remove gear box mounting on cross
member
l
Slightly move the gear box towards rear
side of the vehicle (fig. 15a)
l
Incase of 4x4 vehicle disconnect both
propeller shaft at transfercase end and
slightly move the transfercase along with
the gearbox towards rear side of the vehicle
(fig 15).
l
Supprt the Engine from bottom side
