ANTI LOCK BRAKING SYSTEM (ABS)

5

ANTI-LOCK

BRAKING

SYSTEM (ABS)

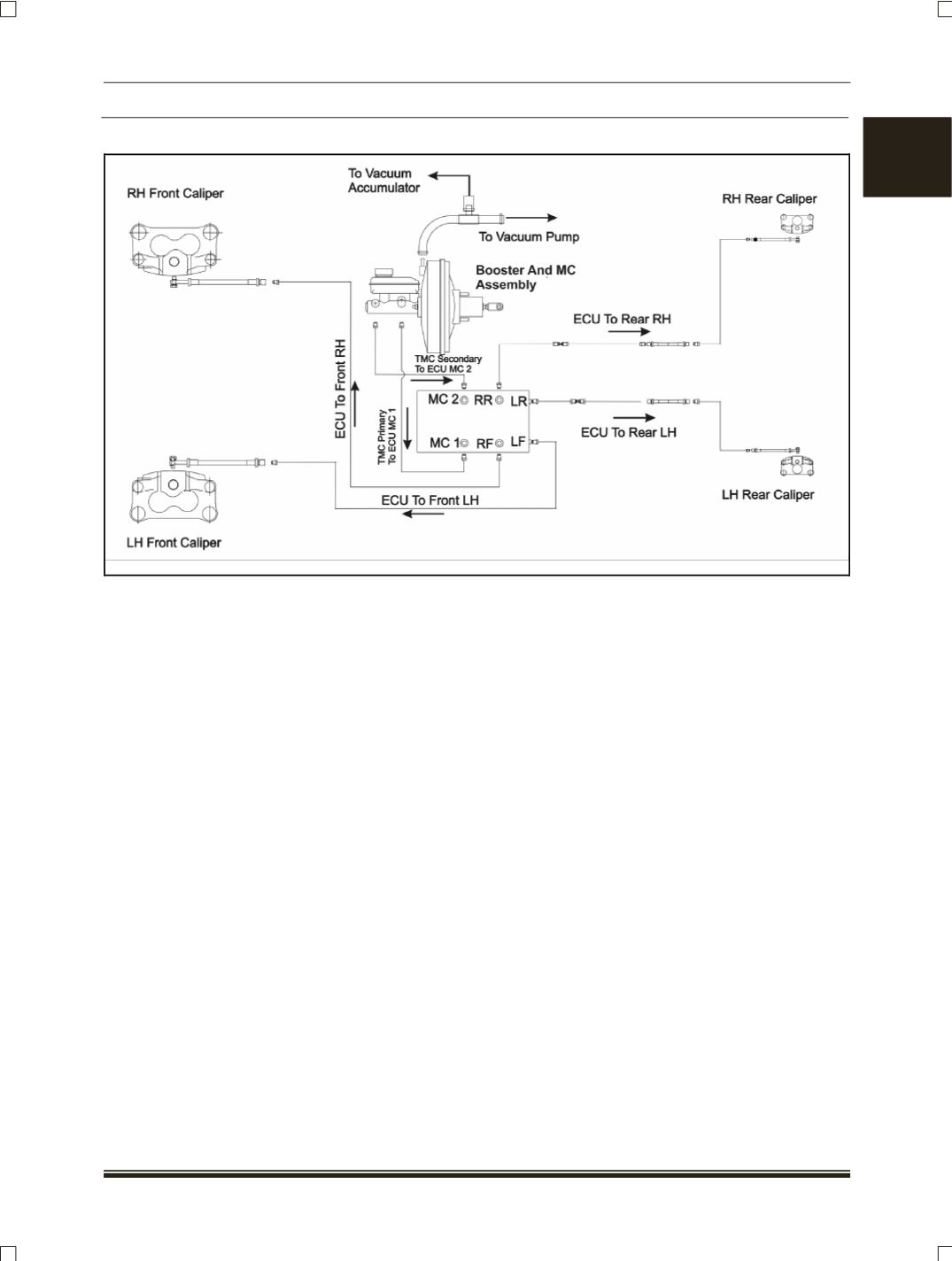

6.2.1.4 SCHEMATIC OF HYDRAULIC CIRCUIT

GENERAL

The Anti lock braking system consists of a Hydraulic

modulator with integrated Electronic control unit, four

wheel speed sensors

(One located at each wheel)

and 2 warning lamps in the instrument cluster

(1(yellow) for ABS and 1(Red) for EBD).

The brake

pipes are connected to the brakes through the ABS

ECU / HCU. They make two independent circuits

which are vertically split. The primary circuit

connects the Front Left and the Front Right brake

while the secondary connects Rear Right and Rear

Left brake through connectors. Internal to the

Hydraulic modulator each brake has a pair of

solenoid valves, one inlet and one outlet; these are

activated by the ECU to control the brake pressure of

individual wheels.
