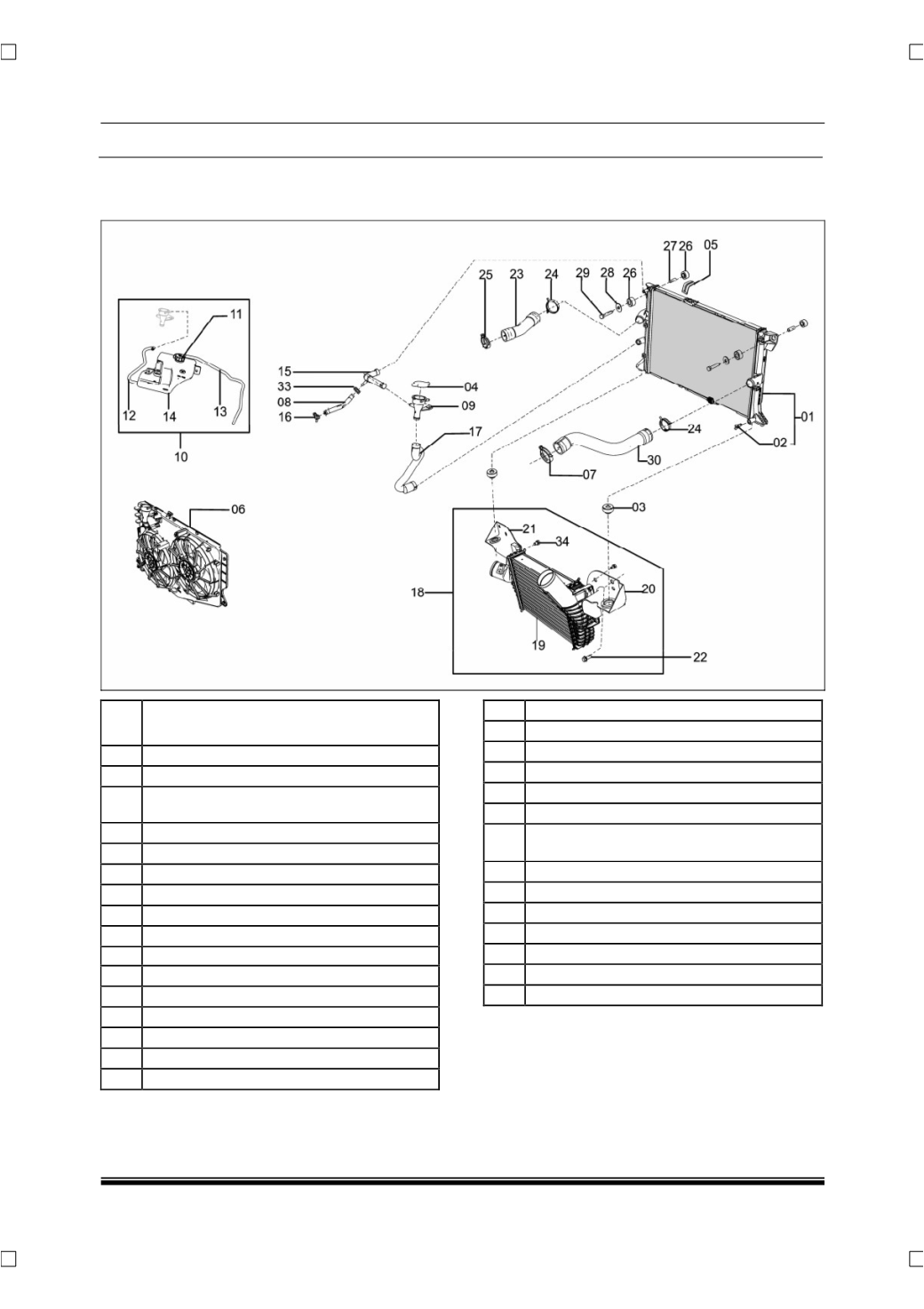

2.1.5.3 EXPLODED VIEW
A) RADIATOR ASSEMBLY
SR.
NO
DESCRIPTION
01 Radiator sub assembly
02 Drain plug assembly
03
Rubber grommet
(Radiator bottom mount-
ing)
04 Pressure cap
(Radiator)
05 C-clamp radiator
06 Fan shroud assembly
07 Spring. Band clamp 49DX12W
08 Hose
(Vent tube to radiator tank)
09 Filler neck
10 Assy. Recovery bottle
11 Cap-recovery bottle
12 Hose recovery tank
13 Over flow tube
(Recovery bottle)
14 Recovery bottle
15 Radiator vent hose
16 Spring Band Clamp (14DX12W
17 Filler Neck Hose
18 Assembly Intercooler
19 Intercooler
20 Bracket Mtg LH Side
21 Bracket Mounting Outlet Side
22 Hex Flange Screw M10X25
23 Rubber Hose (Upper Cooling pipe to radia-
tor)
24 Spring Band Clamp 47DX12W
25 Spring Band Clamp 43DX12W
26 Rubber Groomets (Radiator top mount)
27 Sleeve (Radiator top mount)
28 Washer A10.5
29 Pointed Screw (Radiator Mounting)
30 Hose (Radiator to thermo)
