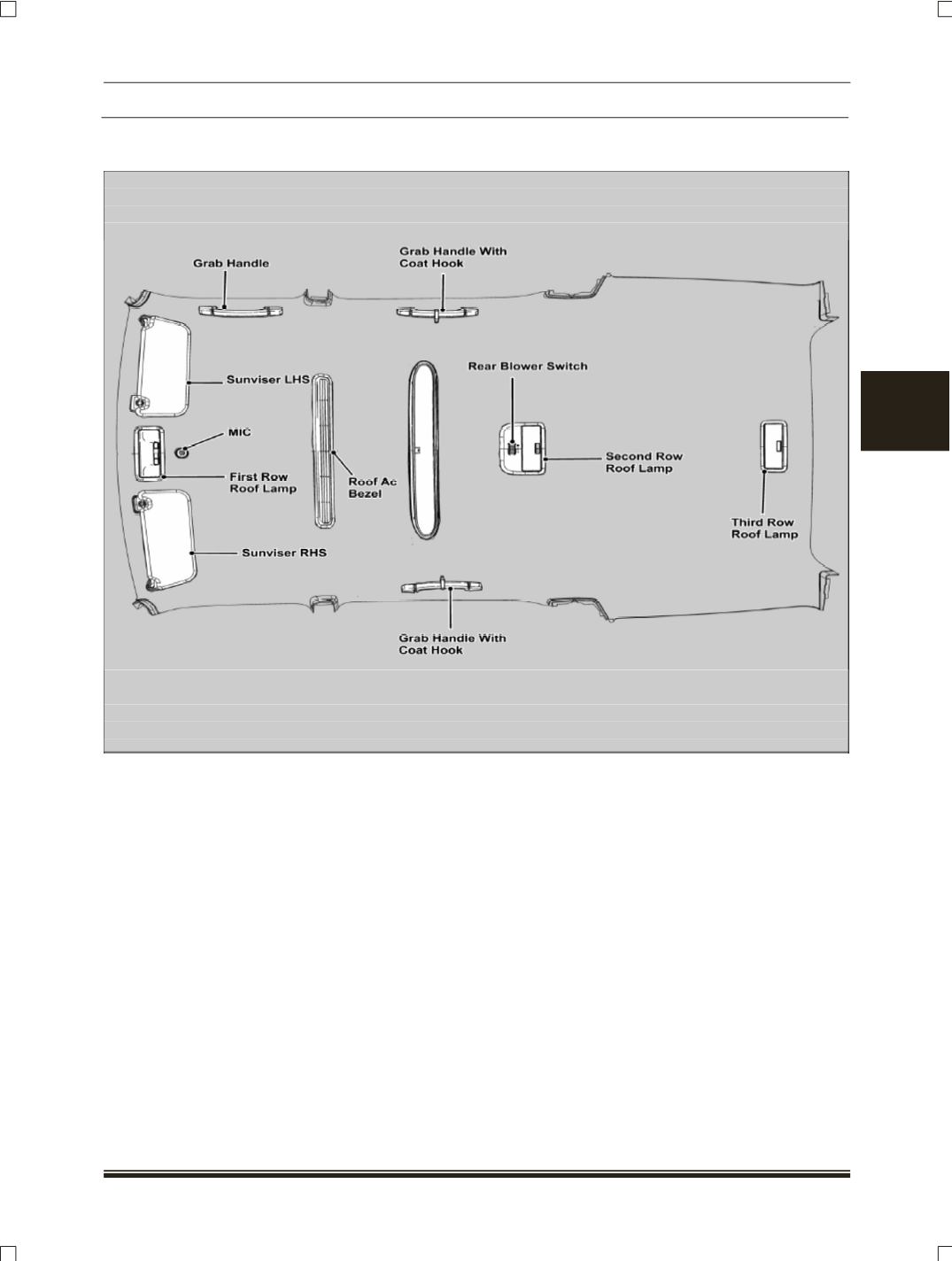

9.2.42 ROOF LINER ASSEMBLY
REMOVAL
1. Remove “A” pillar trim.
(For procedure refer “A”
pillar trim removal process in this section)
2. Remove “B” pillar trim.
( For procedure refer “B”
pillar trim removal process in this section)
3. Remove “C” pillar trim.
( For procedure refer “C”
pillar trim removal process in this section)
4. Remove “D” pillar trim.
( For procedure refer “D”
pillar trim removal process in this section)
5. Remove the Sunvisor from both ends.
6. Remove all grab handles.
(For procedure refer
grab handle removal process in this section.)
7. Pry out the roof ac bezel.
(for procedure refer
roof AC bezel removal in Electrical section)
8. Remove roof lamps
(For procedure refer roof
lamp removal procedure in Electrical section.)
9. Loosen and remove the mounting screw which
are located below the roof lamps for all three
roof lamps.
10.Carefully pullout the headliner assembly.
11.Disconnect the roof wiring harness electrical
connection and rear windshield washer line.
12.Remove roof liner from the vehicle.
FITMENT
For fitment follow reverse procedure of removal.
