BODY
82

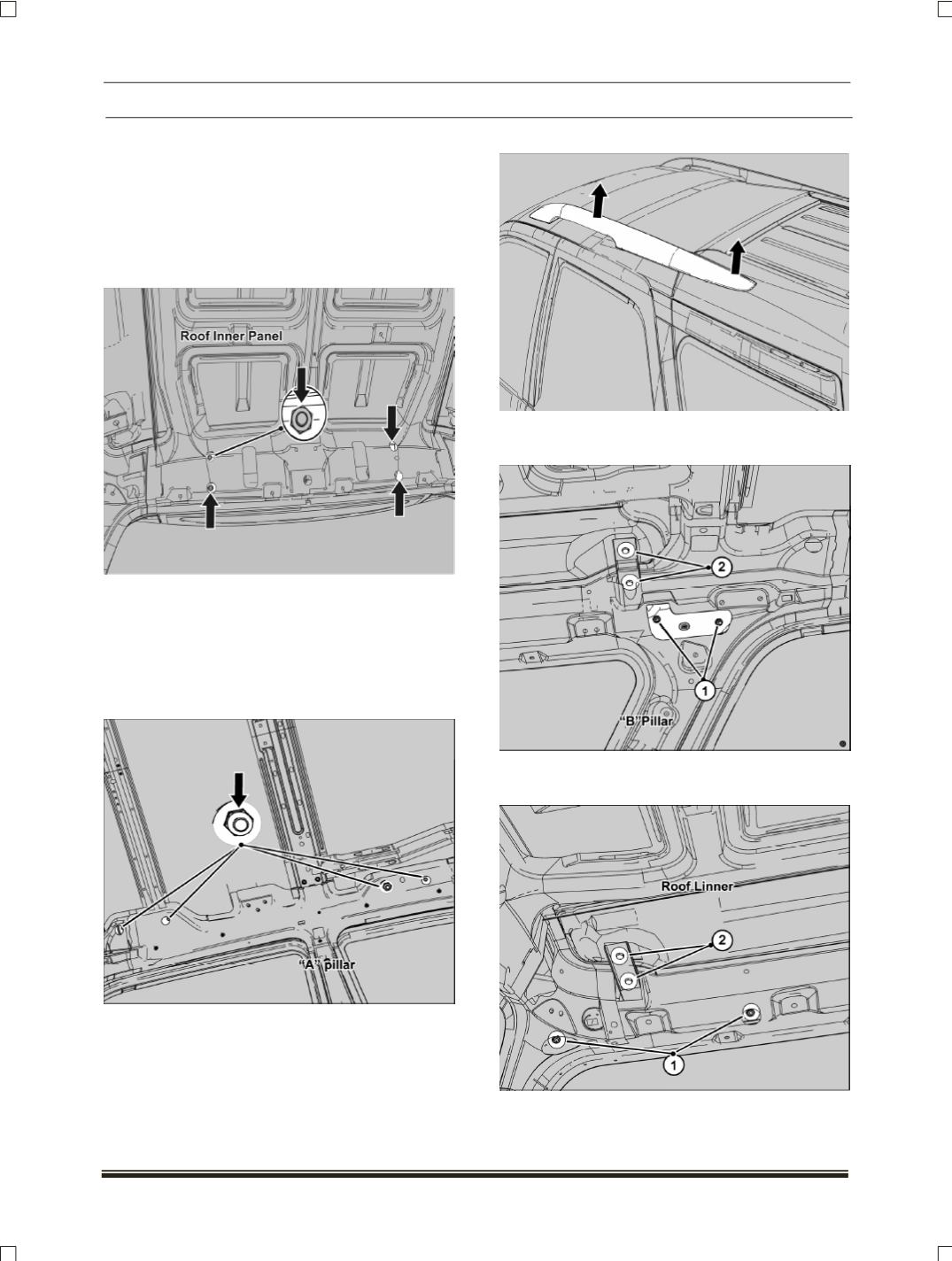

9.2.48 SPOILER
REMOVAL
1. Remove roof liner to access the spoiler
mounting nut through body shell.(
For procedure
refer roof liner removal in this section.)
2. Loosen and remove four mounting nut as
shown below.
3. Disconnect the electrical connections and rear
wind shield washer pipe.
4. Separate the spoiler assembly from vehicle
along with high mounted stop light.
5. Loosen and remove four mounting nut shown
below.
6. Remove roof rail assembly from outside.
7. Loosen and remove two mounting screws (1)
and two mounting bolts (2) as show below.
8. Loosen and remove two mounting screws (1)
and two mounting bolts (2) as show below
