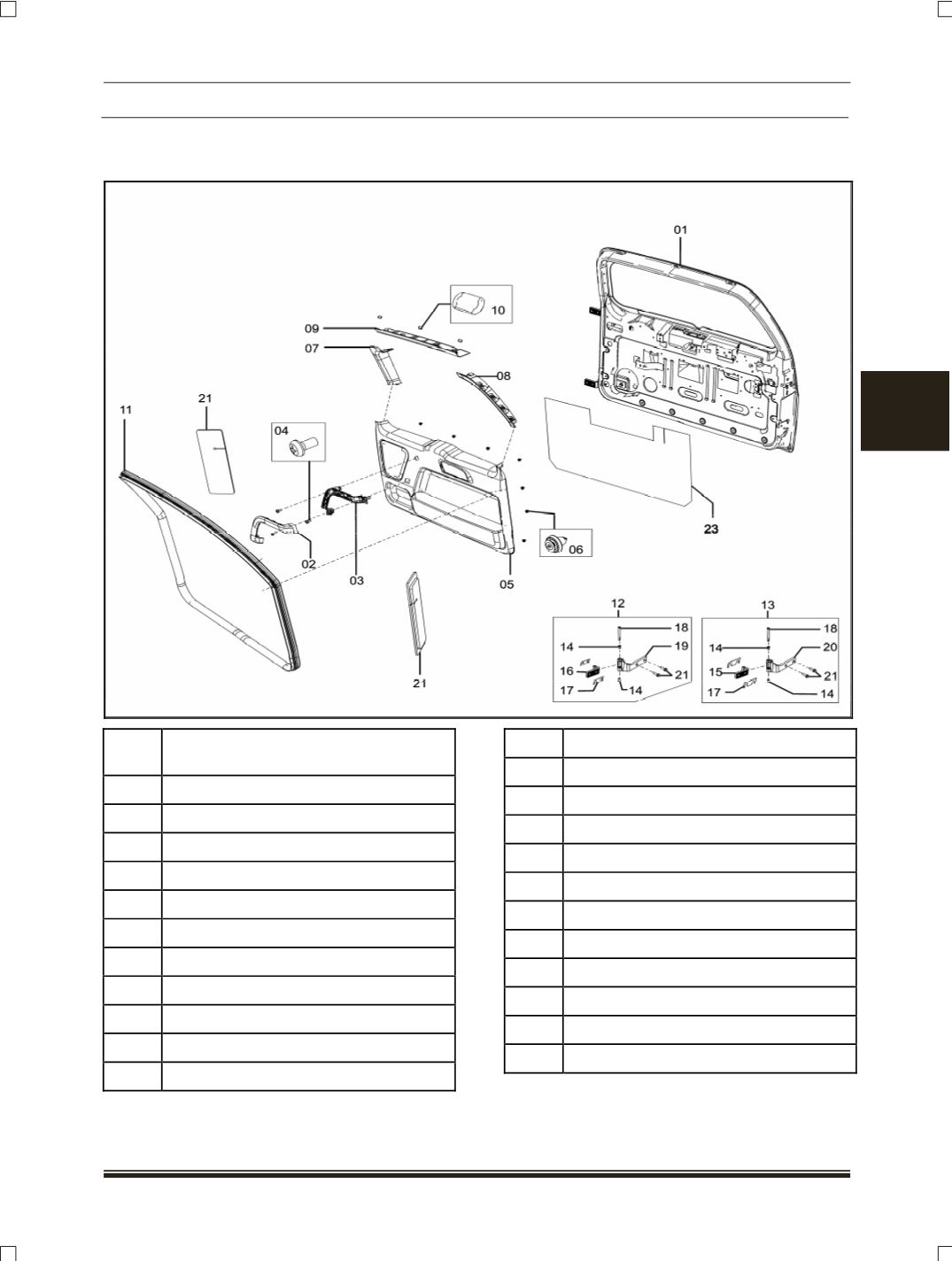

9.2.19 TAILGATE TRIM
CONSTRUCTIONAL DETAILS
SR.
NO
DESCRIPTION
01
Assembly tailgate
02
Grab handle cover tailgate
03
Grab handle armature
04
Cross pan headed screw M6X12
05
Assembly tailgate lower trim
06
Trim clip
07
Tailgate trim pillar side RH
08
Tailgate trim pillar side LH
09
Assembly tailgate trim pillar upper
10
Plug (for door vent cutout)
11
Tailgate primary mould
12
Assembly hinge tailgate lower
13
Assembly hinge tailgate upper
14
Collar bush
15
Hinge leaf body side upper
16
Hinge leaf tailgate lower
17
Tailgate hinge shim 0.7mm
18
Hinge tailgate pin
19
Hinge leaf body side lower
20
Hinge leaf tailgate upper
21
Hexagonal flange bolt M10X30
22
Tail lamp access cover
23
Plastic membrane tailgate
