1101 / 1235
BODY
42

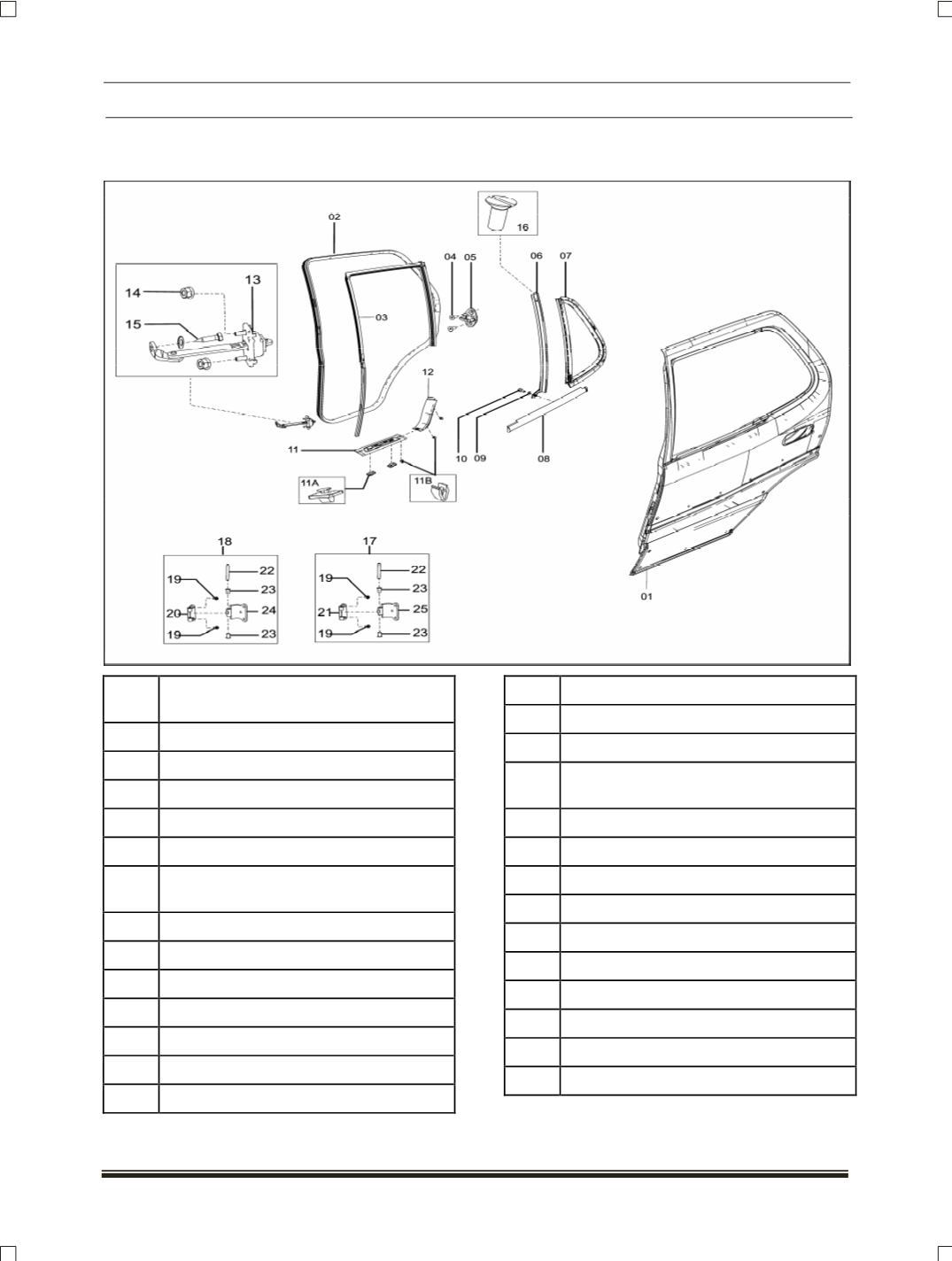

9.2.16 REAR DOOR
CONSTRUCTIONAL DETAILS
SR.
NO
DESCRIPTION
01
Assembly shell welded rear door
02
Rear door primary mould
03
Glass run mould rear
04
Screw M8X20
05
Assembly striker
06
Assembly channel glass division rear
door
07
Rear door fixed glass mould
08
Outer belt rear door
09
Washer A6.4
10
Hexagonal flange screw M6X12
11
Assembly rear scuff plate
11A Clip for scuff plate fixing
11B Plastic clip
12
Rear scuff plate
13
Assembly check strap rear door
14
Hexagonal flange nut AM6
15
Hexagonal screw CP M8X32,with spring
washer.
16
Screw M5X12
17
Assembly. hinge upper
18
Assembly. hinge lower front door
19
Torx screw M8X28
20
Hinge leaf (door side)
21
Hinge leaf (door side)
22
Pin
23
Collar bush
24
Hinge leaf (body side)
25
Hinge leaf (body side)
