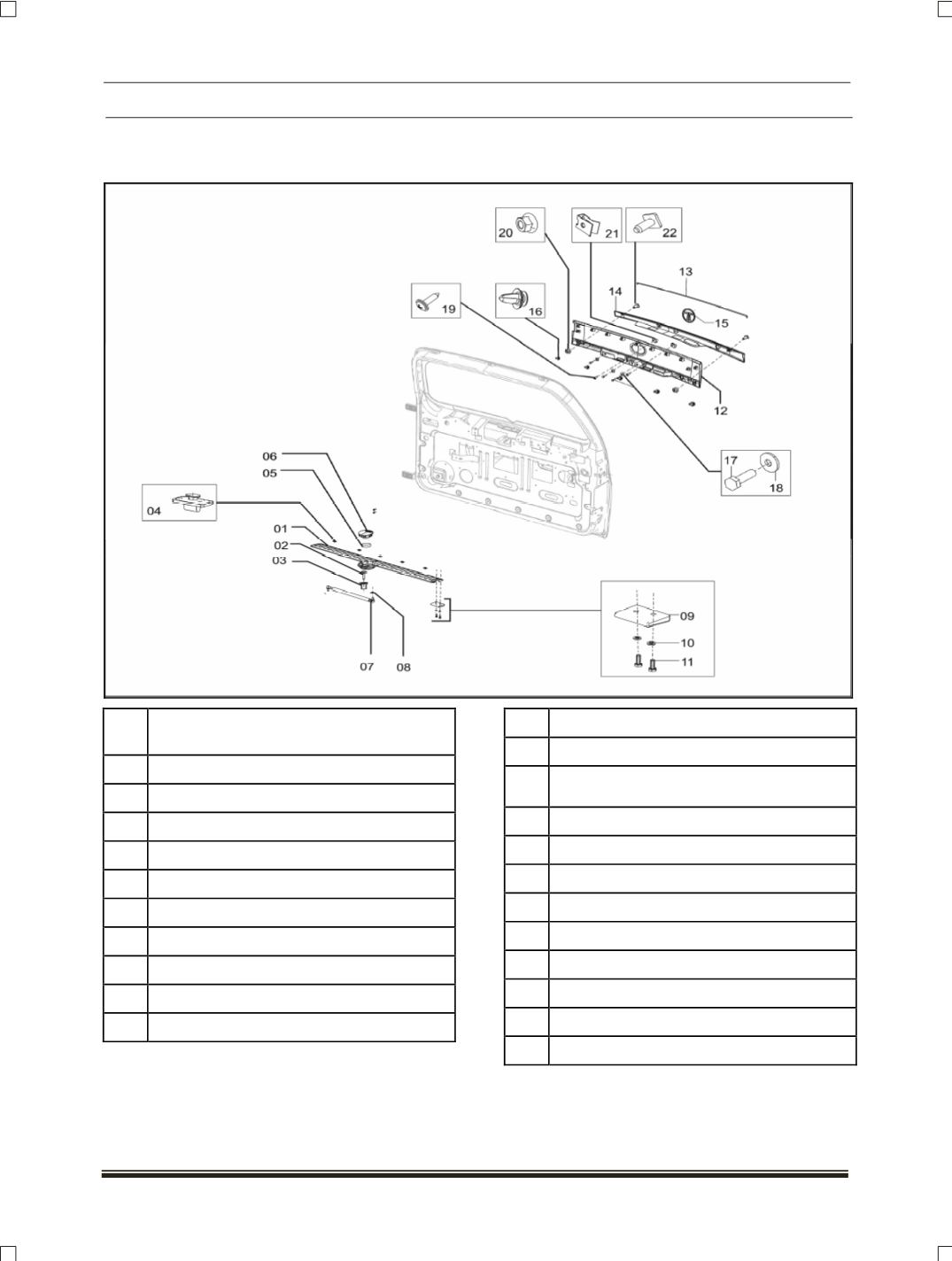

9.2.20 TAIL GATE
CONSTRUCTIONAL DETAILS
SR.
NO. DESCRIPTION
01 Luggage scuff plate
02 Cross tapping screw ST4.8X16
03 Nut plastic for scuff tread plate fixing
04 Clip for scuff plate fixing
05 Scuff plate packaging foam
06 Luggage scuff plate cap
07 Assembly.tail gate gas balancer
08 Washer A8.4 i
09 Dove tail bottom (door side)
10 Spring washer B6
11 Hex screw M6X16
12 Tailgate moulding
13 Seal tailgate moulding
14 Tailgate finisher
15 T emblem tailgate outer
16 Clip
17 Hex screw M5X16
18 Washer A5.3
19 Flange screw ST4.2X16
20 Hexagonal flange nut AM5
21 MSA 4.2 screw spring
22 Stud M5 bonnet finisher
