SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
15
SRS

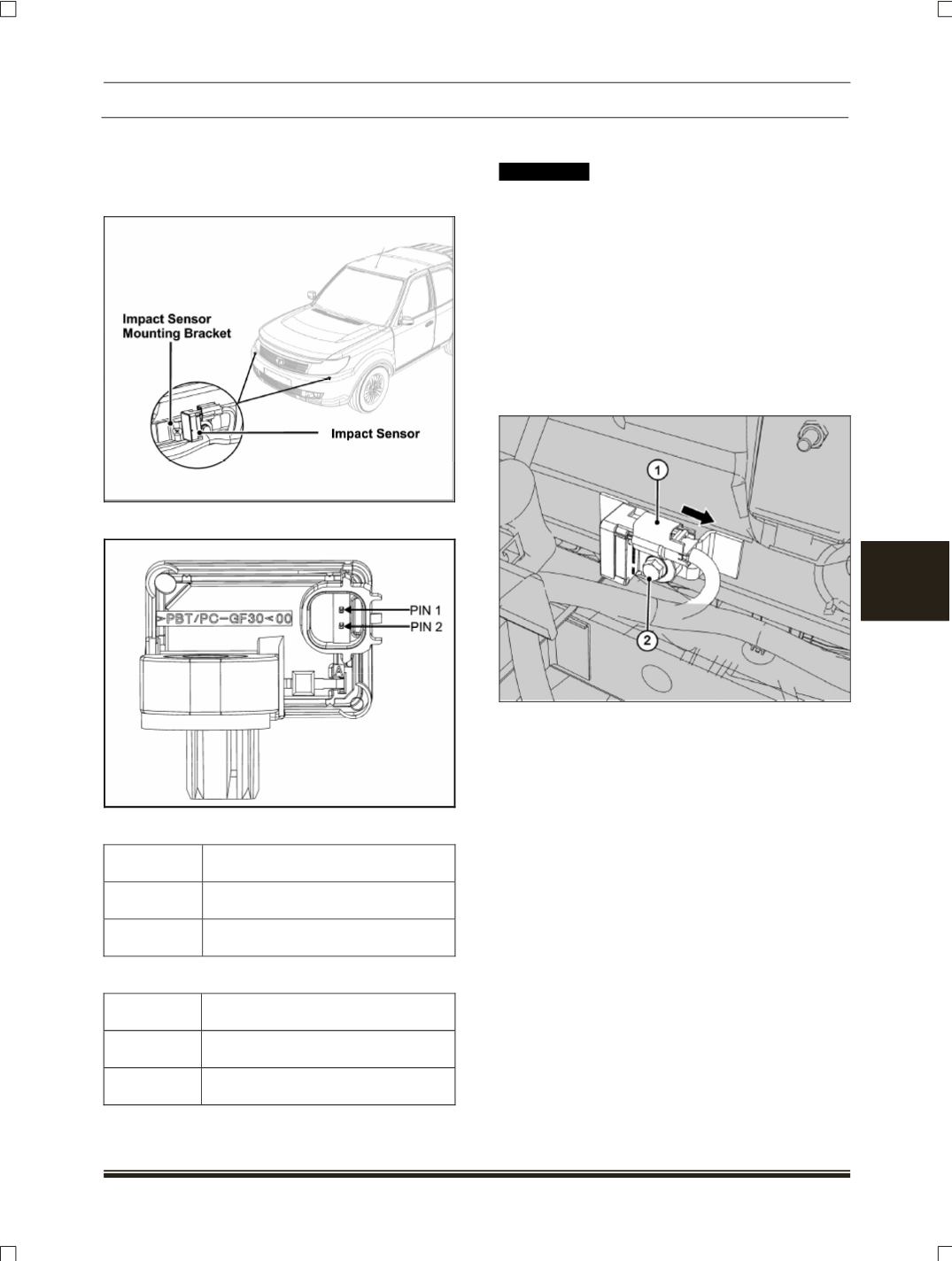

LOCATION
Front impact sensor is mounted on the radiator sup-
port assembly and can be accessed after opening
the bonnet from the engine compartment.
CONNECTOR
PINOUTS
PIN NO.
PIN DESCRIPTION
1
FEED
2
RETURN
SUPPLY VOLTAGE LEVEL
Minimum
5.25 V
Nominal
6.20 V
Maximum
16.5 V
B. ON VEHICLE REPAIR
!! WARNING
The system has back-up power for about 30 sec-
onds after the battery is disconnected. Wait for at
least ONE minute after disconnecting the battery
before servicing the vehicle to prevent accidental
deployment and personal injury.
REMOVAL
1. Open the bonnet.
2. Remove the battery connections.
3. Disconnect the electrical connection (1) from the
front impact sensor.
4. Loosen and remove the mounting flange bolt (2)
and take out the front impact sensor from the ve-
hicle.
FITMENT
For fitment follow reverse procedure of removal.
