SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
10

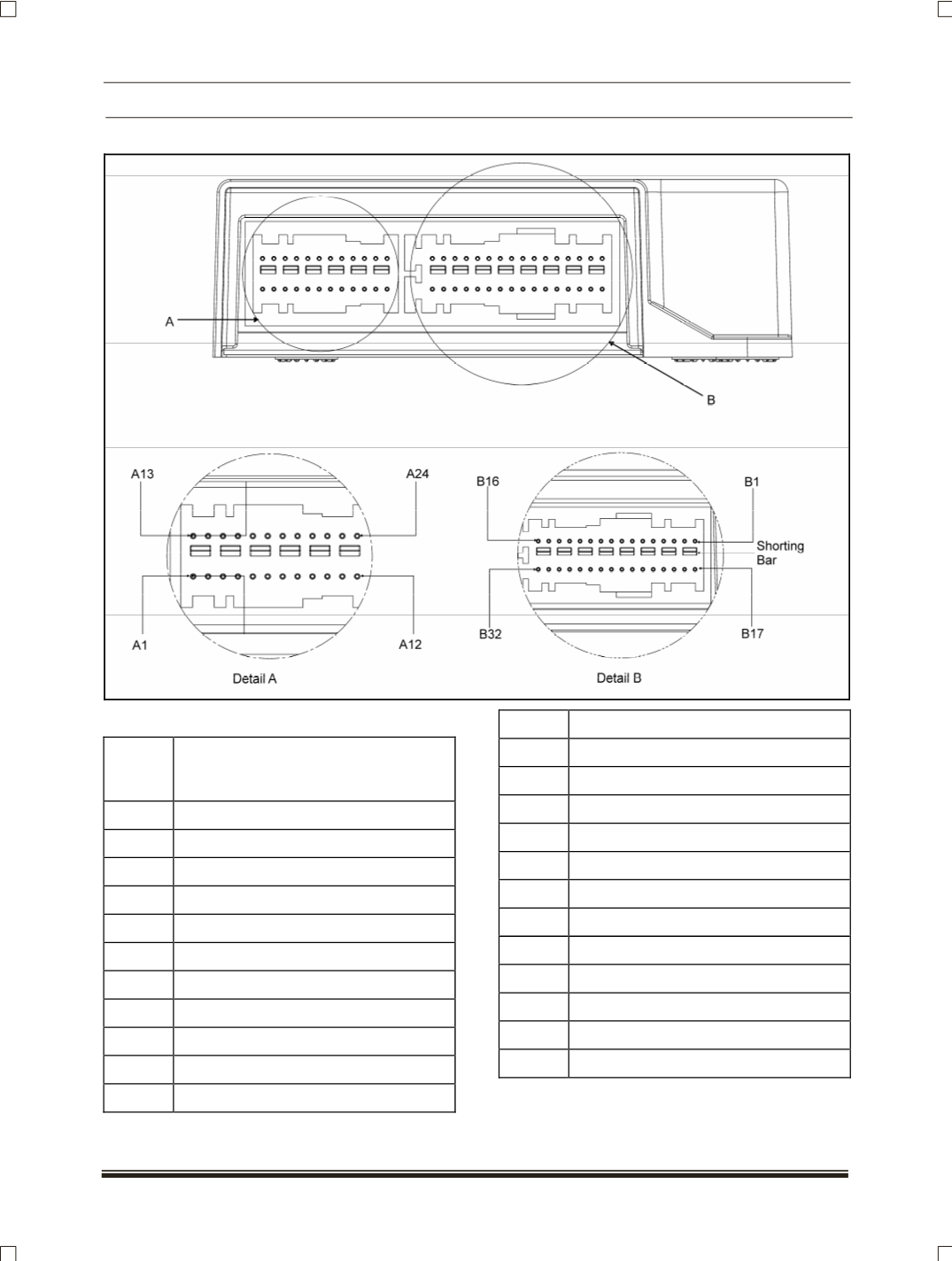

SRS ECU CONNCETOR
PINOUT: CONNECTOR A
SRS
ECU
Pin #
FUNCTION
1
Ignition
2
KWP2000 (K-Line)
3
Not Used
4
Not Used
5
Not Used
6
Not Used
7
Not Used
8
FIS Passenger Return
9
FIS Passenger Feed
10
FIS Driver Return
11
FIS Driver Feed
12
Not Used
13
AIRBAG Warning Lamp
14
Ground
15
Squib_2_L / PASS. 1st Stage
16
Squib_2_H / PASS. 1st Stage
17
Squib_1_H / Driver 1st Stage
18
Squib_1_L / Driver 1st Stage
19
Not Used
20
Not Used
21
Not Used
22
Not Used
23
Not Used
24
Not Used
