SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
20
ON VEHICLE REPAIR
REMOVAL
!! WARNING
The system has back-up power for about 30 seconds
after the battery is disconnected. Wait for at least
ONE minute after disconnecting the battery before
servicing the vehicle to prevent accidental deploy-
ment and personal injury.
1. Disconnect the battery connections.
2. Remove the Driver Air bag (DAB.)
(For proce-
dure refer DAB removal in this section).
3. Remove the steering wheel
(For procedure refer
steering wheel removal procedure in Steering
system).
4. Remove the lower nacelle and the upper nacelle
assembly.
(For procedure refer body section)

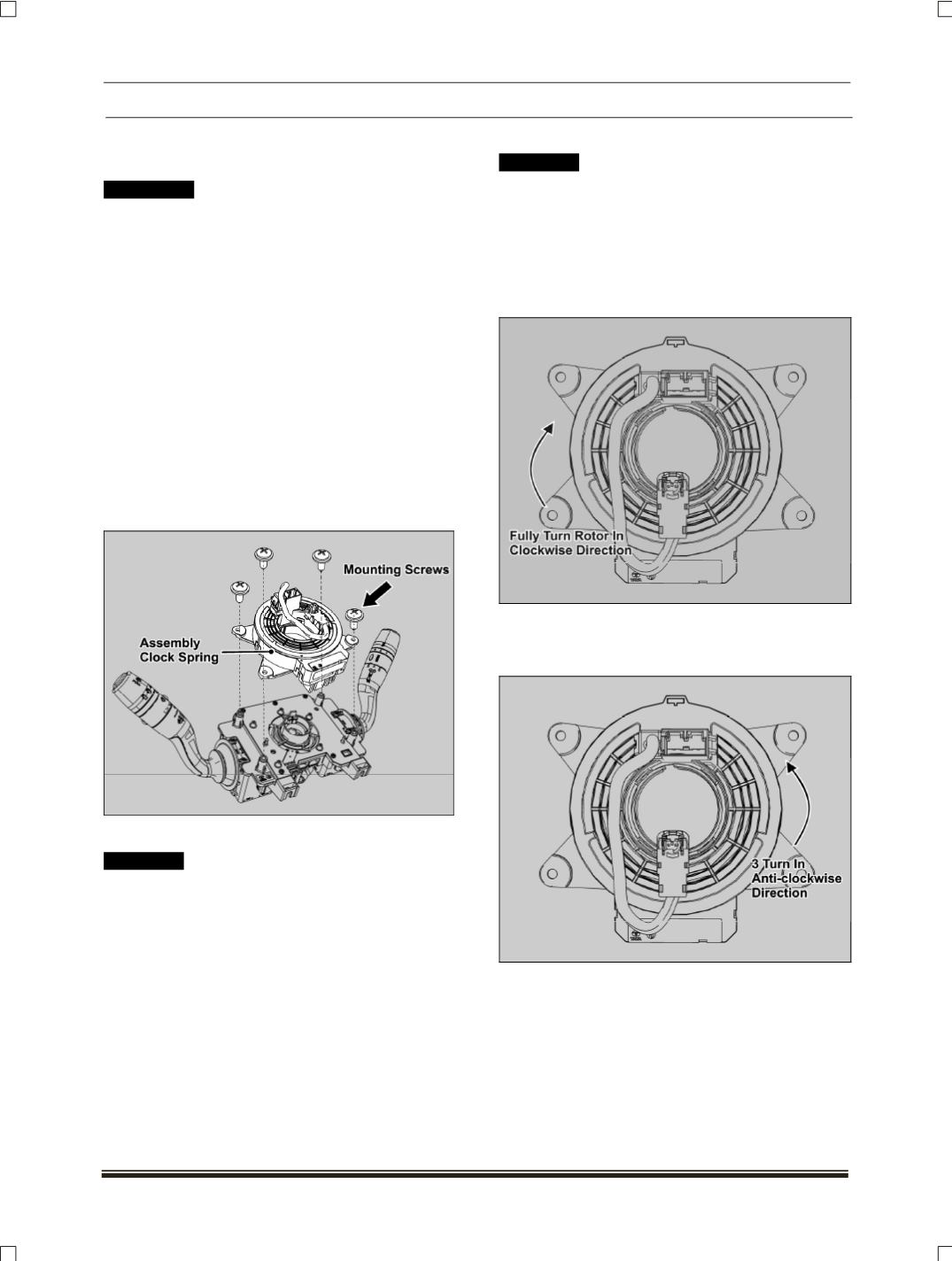

5. Remove four mounting screws of clock spring
and take out the clock spring.
FITMENT
! CAUTION
Care should be taken that before fitment of clock
spring, make sure that the steering wheel and the
vehicle is in straight ahead position.
For fitment follow the reverse procedure of removal.
NOTE
After fitment of clock spring on Combi switch align
the clock spring as follows:
CLOCK SPRING ALIGNMENT PROCEDURE
! CAUTION
If this alignment is not done the clock spring may get
severely damage.
Make sure the steering wheel & the vehicle is
in straight position
.
Rotate the clock spring rotor in clockwise direc-
tion till it reaches the maximum limit of rotation.
Turn the clock spring in anticlockwise direction for
3 rotations from this extreme position. This will be
the straight ahead position of the clock spring.
