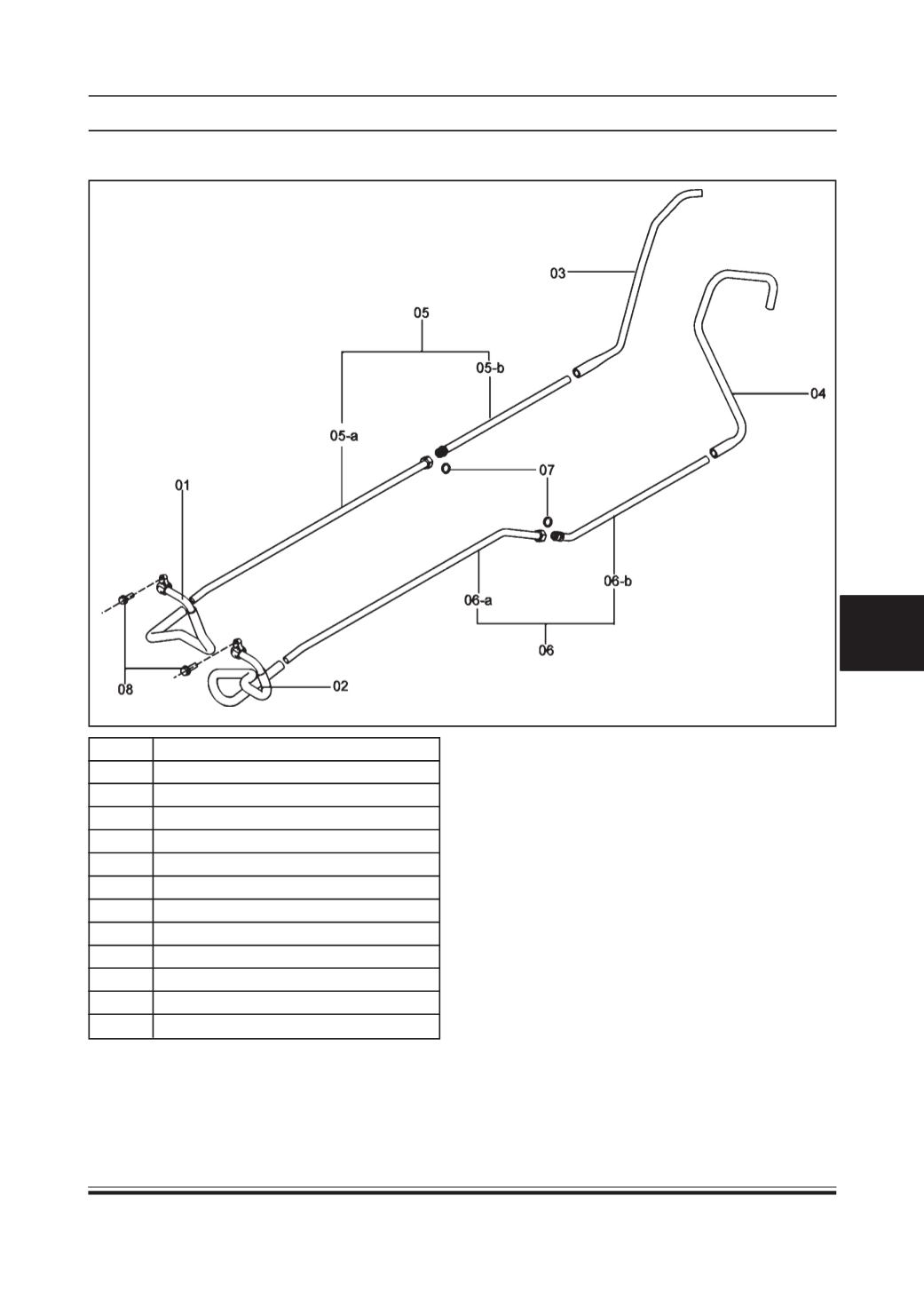

HEATER LINES

. Description

01 Heater inlet hose HVAC end

02 Heater outlet hose HVAC end

03 Heater inlet hose engine end

04 Heater outlet hose engine end

05 Heater pipe assembly - inlet

05-a Heater inlet pipe 1

05-b Heater inlet pipe 2

06 Heater pipe assembly - outlet

06-a Heater outlet pipe 1

06-b Heater outlet pipe 2

07 O-ring

08 Hex bolt
