HVAC

Inspection

1. Inspect for any external damage to drier cartridge.

Replace the same if found damaged.

Installation

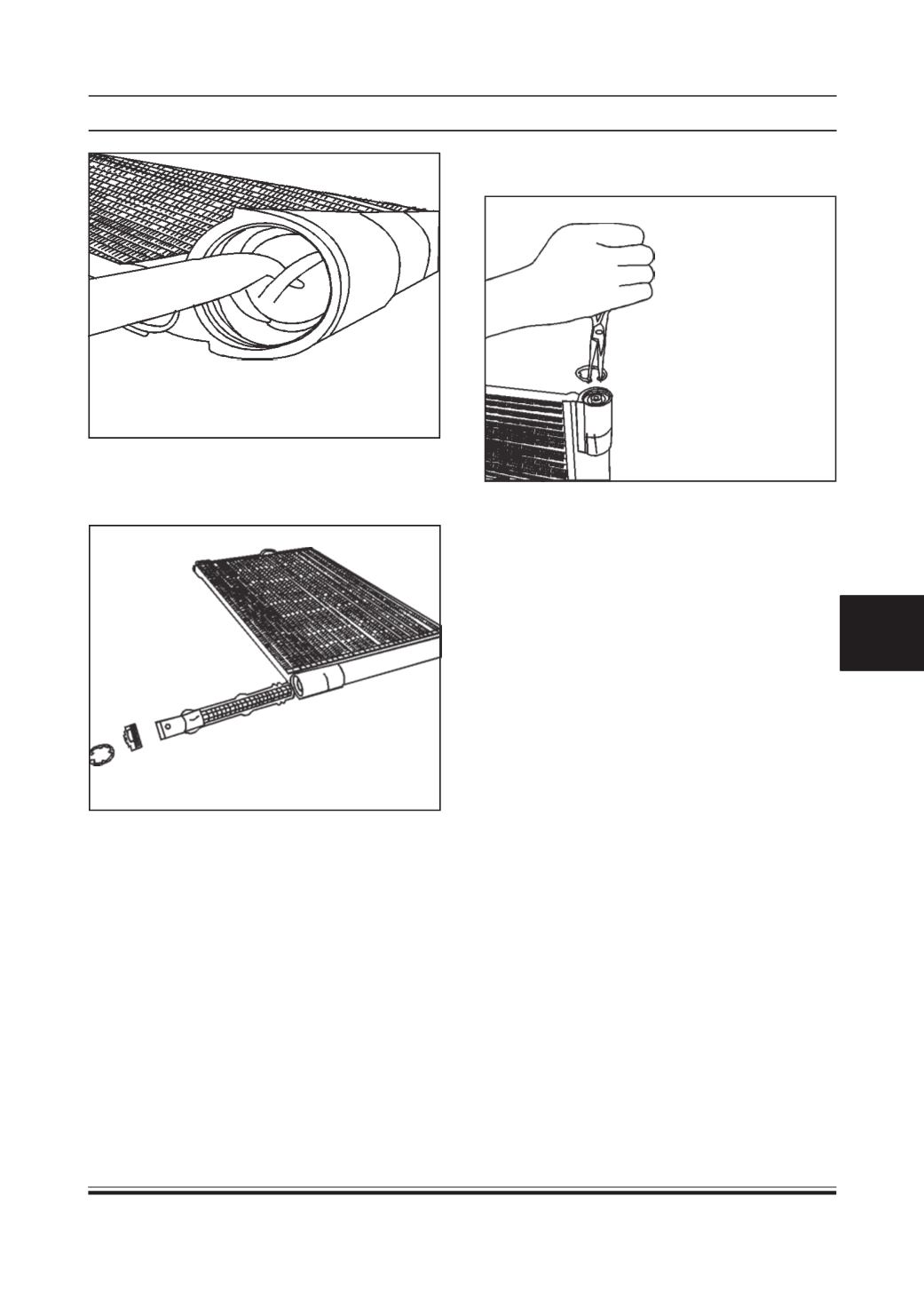

1. First assemble the cartridge by pressing it inside

KOMO tube till it fits into groove provided in KOMO

Profile.

CAUTION

Cartridge should not expose to atmosphere. It

should be assemble immediately after removing

from packaged condition.

2. Assemble KOMO bottom plug by pressing it above

cartridge until it clears retaining ring groove.

3. Assemble retaining ring into groove with help of

plier.

4. Assemble plastic frame by pressing it on the

KOMO side manifold until all snaps are properly

locked.

5. Insert air cartridge assembly into condenser core

and fix the cap on it.

6. Install condenser assembly on vehicle. (Refer

condenser assembly installation procedure)
