ELECTRICAL
703
ELECTRICAL

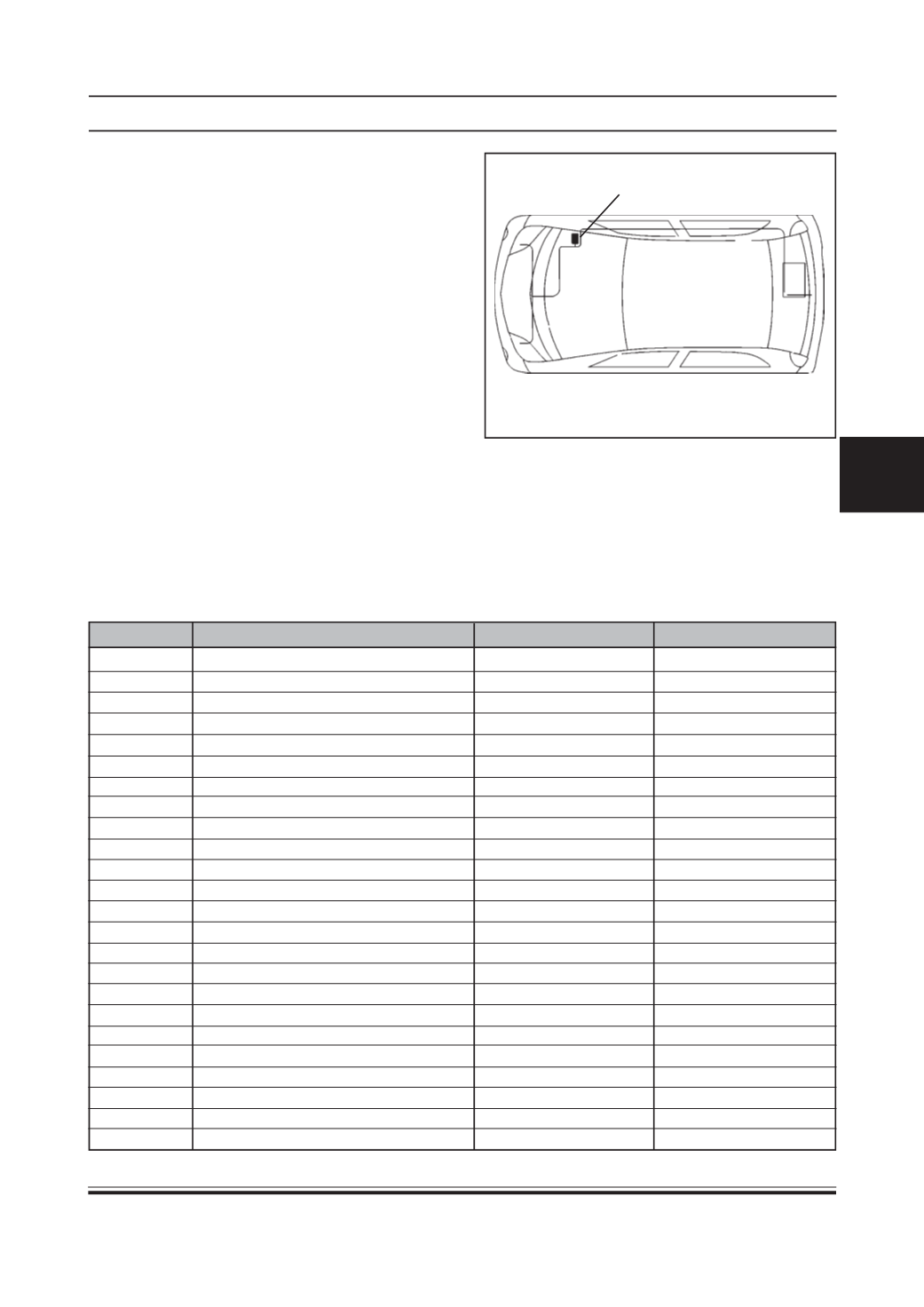

8.19. FUSE BOX /RELAY LOCATION AND
DETAILS
LOCATION:
All Electrical circuits in the vehicle have
fuses to protect them from short circuit or Overload.
These fuses are located in 1 fuse box below the
dashboard on driver RH side. Current rating of each
fuses are printed on the sticker and located on the
dashboard front skin.
Checking & Replacing Fuses :
If any electrical unit in the vehicle has stopped
functioning, fuses should be checked first.
Procedure to follow:
1. Turn the ignition key to lock position.
2. Check each fuse & look for broken/open controls
link wire inside the fuse. If it is burnt, replace it
with on of the spare fuses of same rating.
3. If replaced fuse of same rating burns out then, there
is probably a serious electrical problem.
Note: Use designated fuses only.
Fuse Box
FUSE NO.
POWERCONSUMER
MODELS
RATING
F1
Window winding RH
LX
30A
F2
Compressor
CX, LX
10A
F3
Condenser Fan
CX, LX
15A
F4
CLU
LX
20A
F5
Fog Lamp
LX
15A
F6
Horn, roof
All
10A
F7
Blower Motor
STD, CX, LX
20A
F8
Radio battery supply
All
10A
F9
Power Socket (Cigar lighter)
LX
10A
F10
Window winding LH
LX
30A
F11
Stop/park
All
10A
F12
Fuel pump
All
15A
F13
Radiator fan
All
20A
F14
Main relay
All
15A
F15
Hazard flasher
All
20A
F18
Blower AC switch
STD, CX, LX
5A
F19
Music sys. (Acc.supply)
All
5A
F20
Combi switch
All
30A
F21
Turn
All
10A
F23
H/L High
All
20A
F24
H/L Low
All
20A
F25
ECU
All
15A
F26
Wiper washer
All
20A
F27
Instrument Cluster / Reverse
All
10A
Note:
F16, F17 and F22 are blank.
FUSE BOX DETAILS
FUSE DETAILS (REFER FUSE LAYOUT)
