ELECTRICAL
665
ELECTRICAL
8.8 WIPER SYSTEM

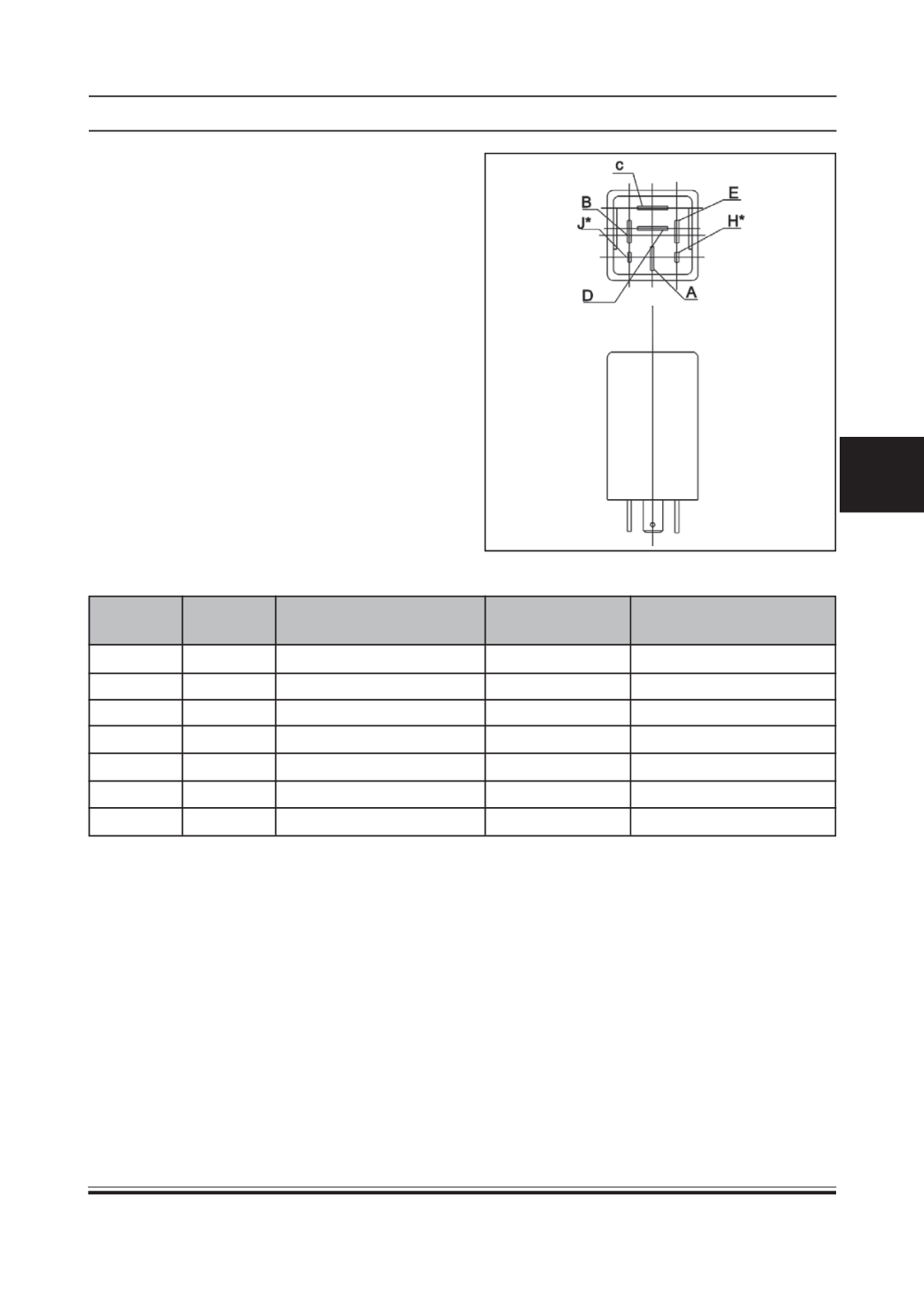

FRONTWIPERCONTROLLER
FUNCTION
It generates the variable time delay during the
intermittent wipe operation of the wipers on the
Vehicles.
LOCATION
It is located inside cabin fuse box.
CONNECTIONDETAILS:
TERMINAL TERMINAL DESCRIPTION
ACTIVE LEVEL
CONDITION
NAME
TYPE
H
Input
Water level sense
GND
Water level low
J
Input
Combi switch - wash
VCC
Switch operated
D
Input
Combi switch - intermittent
VCC
Switch operated
C
Input
Wiper motor park Sw. A
VCC/GND
Wiper moving/Wiper park
B
Input
Wiper motor park Sw. B
VCC
I/G position
E
Input
Ground To Unit
GND
Permanent
A
Input
Park to combi switch
VCC
—
For more details refer circuit schematics section
