NANO VOLUME 1 & 2

ELECTRICAL

663

ELECTRICAL

8.7 HORN

LOCATION

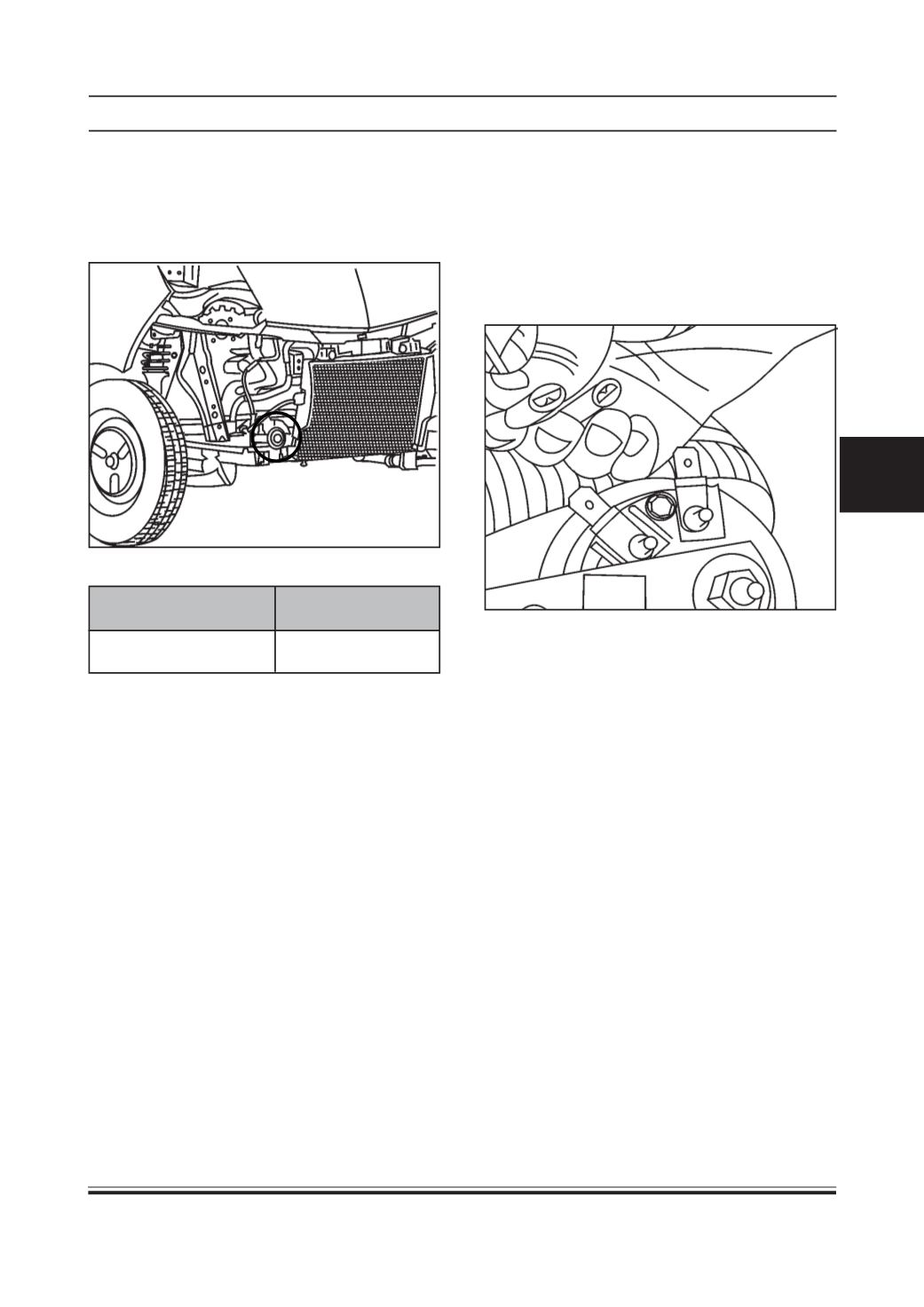

Horn is located on the right hand side of the car, behind

the front bumper, on cover plate rack & pinion.

REMOVAL& REFITMENT OF HORN

REMOVAL

1. Remove front bumper. (Refer “REMOVAL &

REFITMENT OF FRONT BUMPER” from body

section)

2. Disconnect electrical connection. Remove

mounting nut of horn and take out the horn.

INSPECTION

Connect the positive terminal of the horn to battery (+)

and negative terminal to battery (-). If a clean and sharp

sound is heard, the horn is OK. If no sound is heard,

check continuity of the horn coil using a multimeter. If

the coil is OK, check the settings of the setting screw.

Adjust the setting screw till clean & sharp sound is

given out.

REFITMENT

1. Connect electrical connection. Tighten mounting

nut and fit horn.

2. Fit front bumper.

HORN TORQUE VALUE TABLE

APPLICATION

TORQUEVALUE

IN Kgfm

Hex bolt for Mounting

0.86 to 1.05

Horn on Bkt.
