DRIVETRAIN
413
DRIVETRAIN

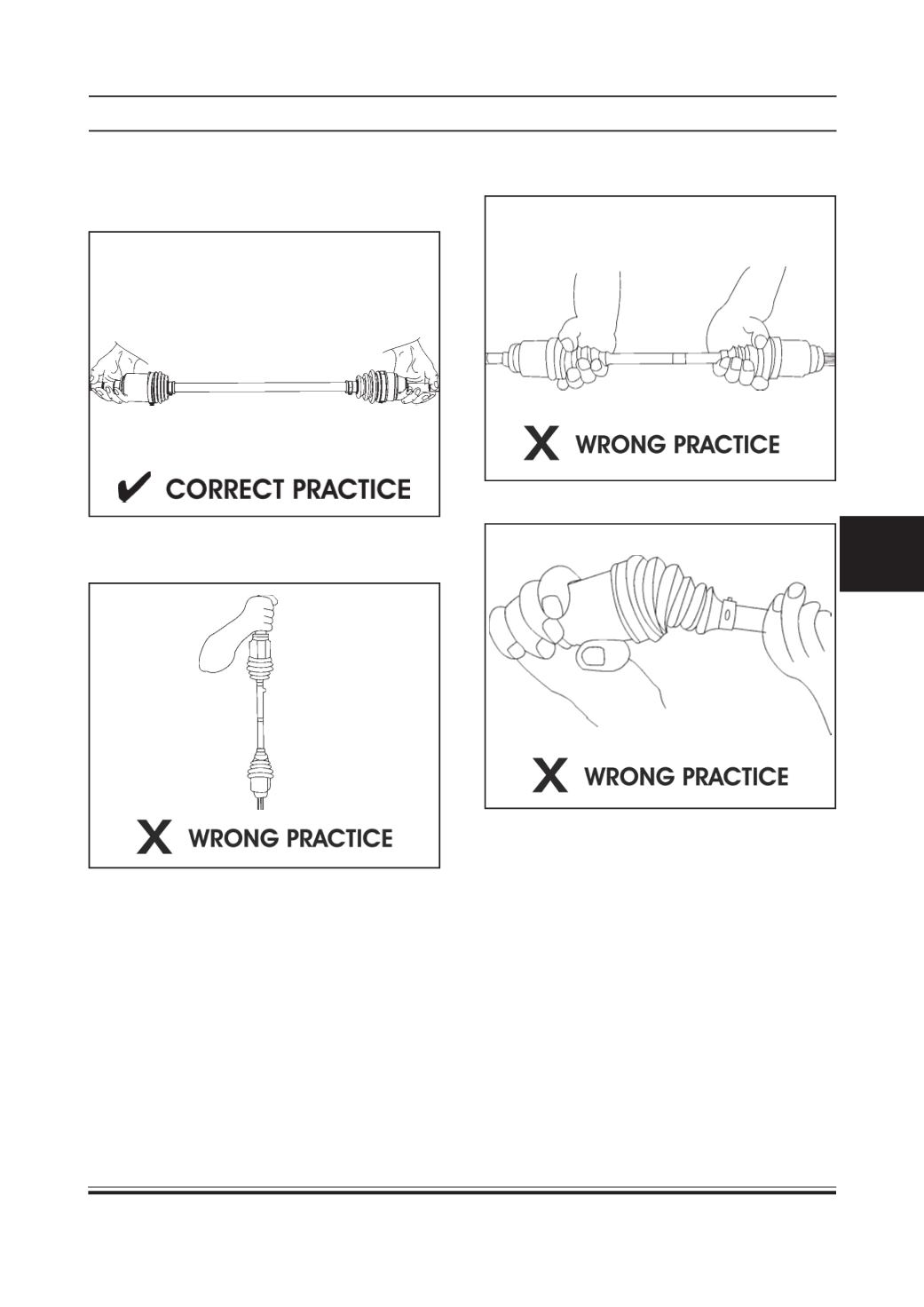

Following figures show the handling
recommendations for drive shaft.
6. Take precaution to avoid any contact between the
inboard seal and the tool used for installation. This
may cause seal peak abrasion which can reduce
the seal performance and life.
7. Avoid over extending the joints while removal or
installation. This may cause dislocation of internal
parts.
(b) Holding the complete driveshaft vertically by tulip
is wrong practice.
(c) Driveshafts should not be handled with hands
holding the boots.
(d) Overbending the plunging joint is wrong practice.
(a) Correct way to handle driveshaft.
