400 / 1428
394

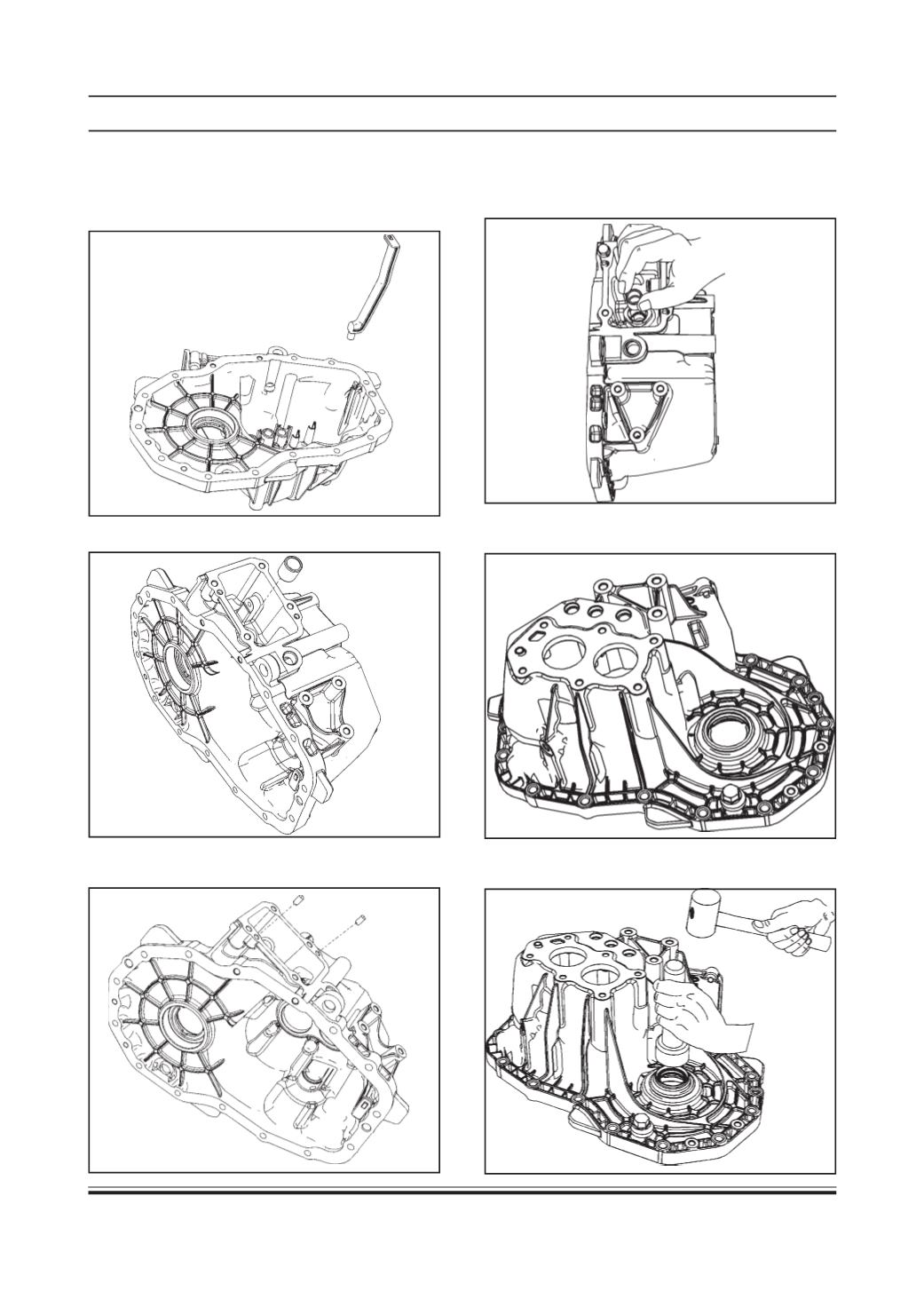

DRIVETRAIN
B. ASSEMBLY
1. Fit the selector shifter shaft needle bearing on the
rear half and tap it to place using a suitable drift.
2. Tighten the magnetic drain plug to a torque of 3.5
Kg m.
3. Fit the Drive shaft seal to the rear half using a
suitable drift.
REAR HALF HOUSING ASSEMBLY.
A. DISMANTLING
1. Remove the oil channel.
2. Remove the select shaft shifter needle bearing.
3. Remove the dowel pins from the top cover housing
in the rear half housing.
