FUEL SYSTEM
5

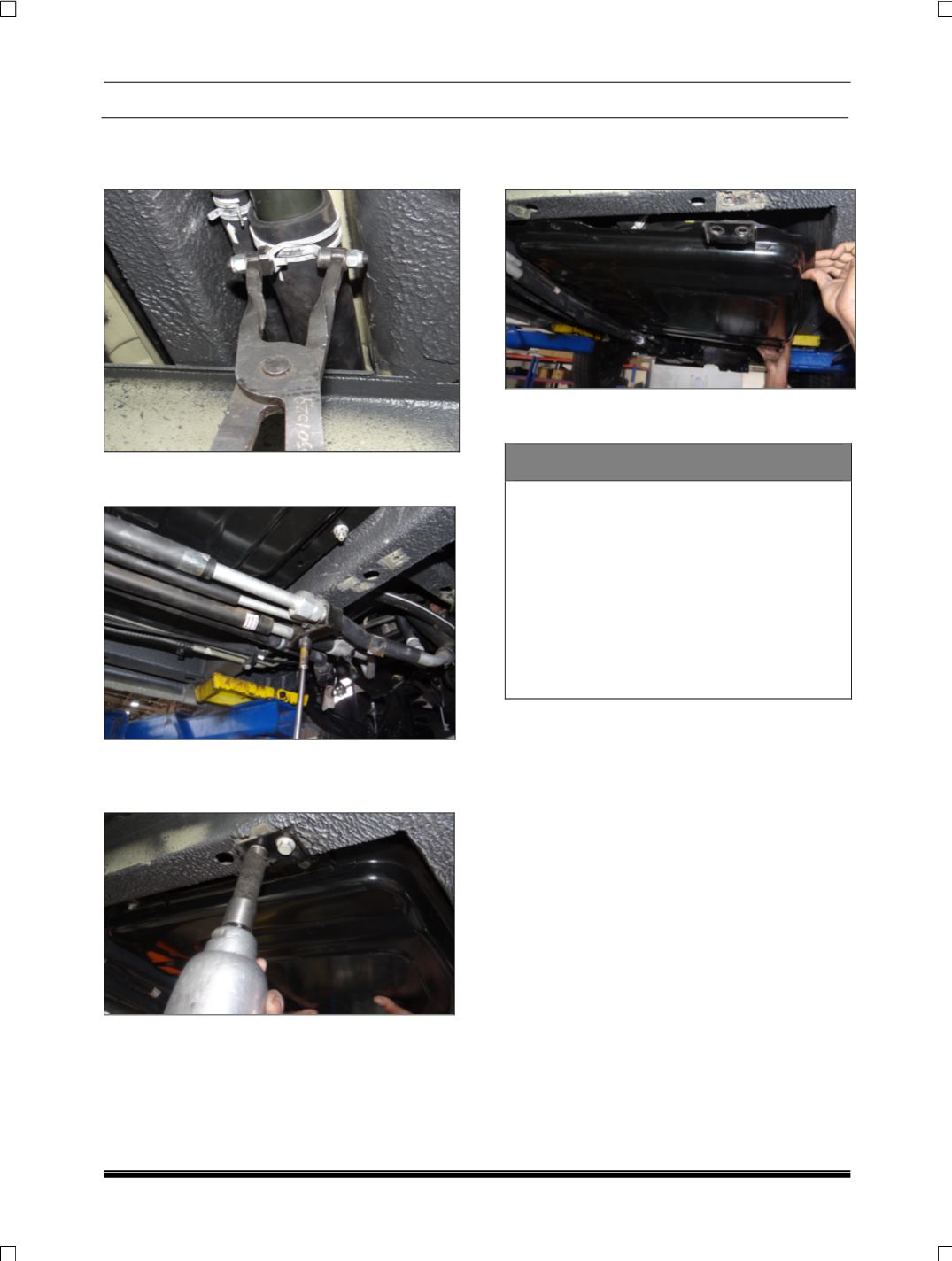

7. Remove tank filler hose and breather hose
clamps Disconnect fuel filler hose and breather
hose.
8. Remove three brackets supporting HVAC lines
passing just below fuel tank.
9. Unscrew tank hexagonal mounting bolts and
nuts of fuel tank mounting (Front and rear
side).
10. Take out tank by tilting one end first and slide
out through the gap between HVAC lines and
chassis.
Follow the reverse process for re-fitment of tank
back to its position.
WARNING
A small amount of fuel may be released after fuel
lines are disconnected. To avoid the chances of
injury, cover the pipe to be disconnected with cot-
ton cloth. Do not use cotton waste.
To avoid damage to fuel / vapor hoses while dis-
connecting, slide back the clamps then twist the
lines as you pull.
When disconnecting fuel line quick connector,
use shop towels to absorb fuel, protecting equip-
ment and personnel, safety devices.
INSPECTION:
While removing fuel tank, check all hoses and pipes
connected to fuel for leaks, loose connections, dete-
rioration or damage. Replace if necessary.
Check fuel module gasket for cracks etc after re-
moval from fuel tank and replace if necessary.
Visually inspect fuel tank for leaks and damage.
Replace if necessary.
