FUEL SYSTEM
3

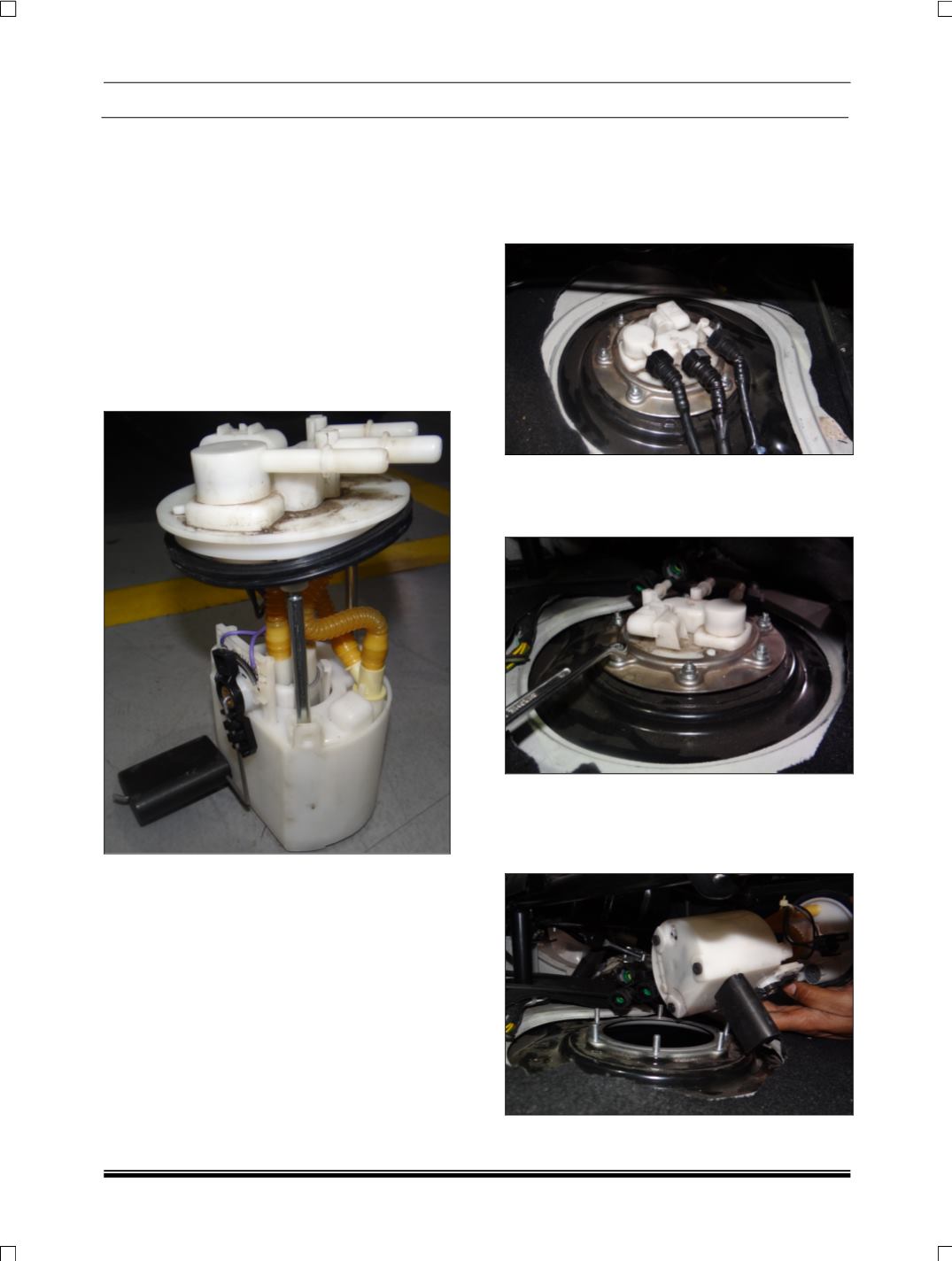

1.5 FUEL TANK UNIT REMOVAL AND REFIT-
MENT
LOCATION:
The fuel tank unit (Fuel Module) is mounted on fuel
tank. It can be accessed from cut out provided be-
low co-driver seat on body floor after removing
plastic cover.
The fuel module consists of following three subas-
semblies.
1) Fuel pump with in built Pressure Regulator
2) Fuel Level Sensor Assembly
3) Roll Over Valve
1 Remove plastic cover fitted on BIW fuel pump
inspection cutout.
2 Remove fuel supply line; return line and vapor
line connections from fuel module.
3 Remove the fuel pump electrical connection.
4 Unscrew six hexagonal nuts provided on feed
module lock ring.
5 Remove fuel module lock ring.
6 Tilt the fuel module unit while pulling out so
that fuel lever sensor assembly can slide
through the gap.
