2.4. FUSEBOX & RELAY DETAILS

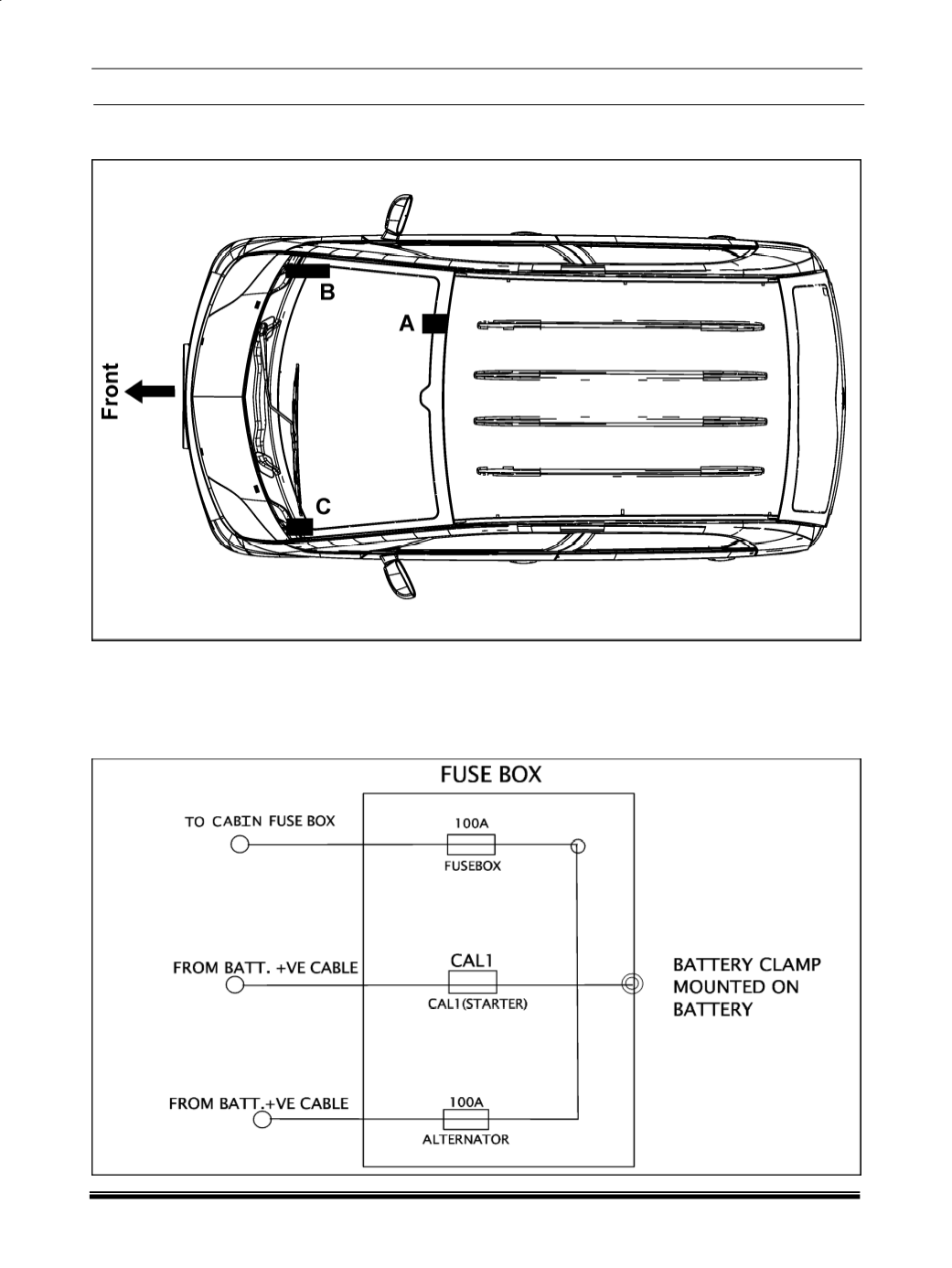

2.4.1 LOCATION OF FUSE / RELAY / CONTROLLERS ON VEHICLE

A. Battery mounted Fuse Box

B. Cabin Fuse Box

C. Relay Box

2.4.2. BATTERY MOUNTED FUSE BOX DETAILS (FOR NANO CNG AND MY13)
