3. INSTRUMENT CLUSTER:
Function:

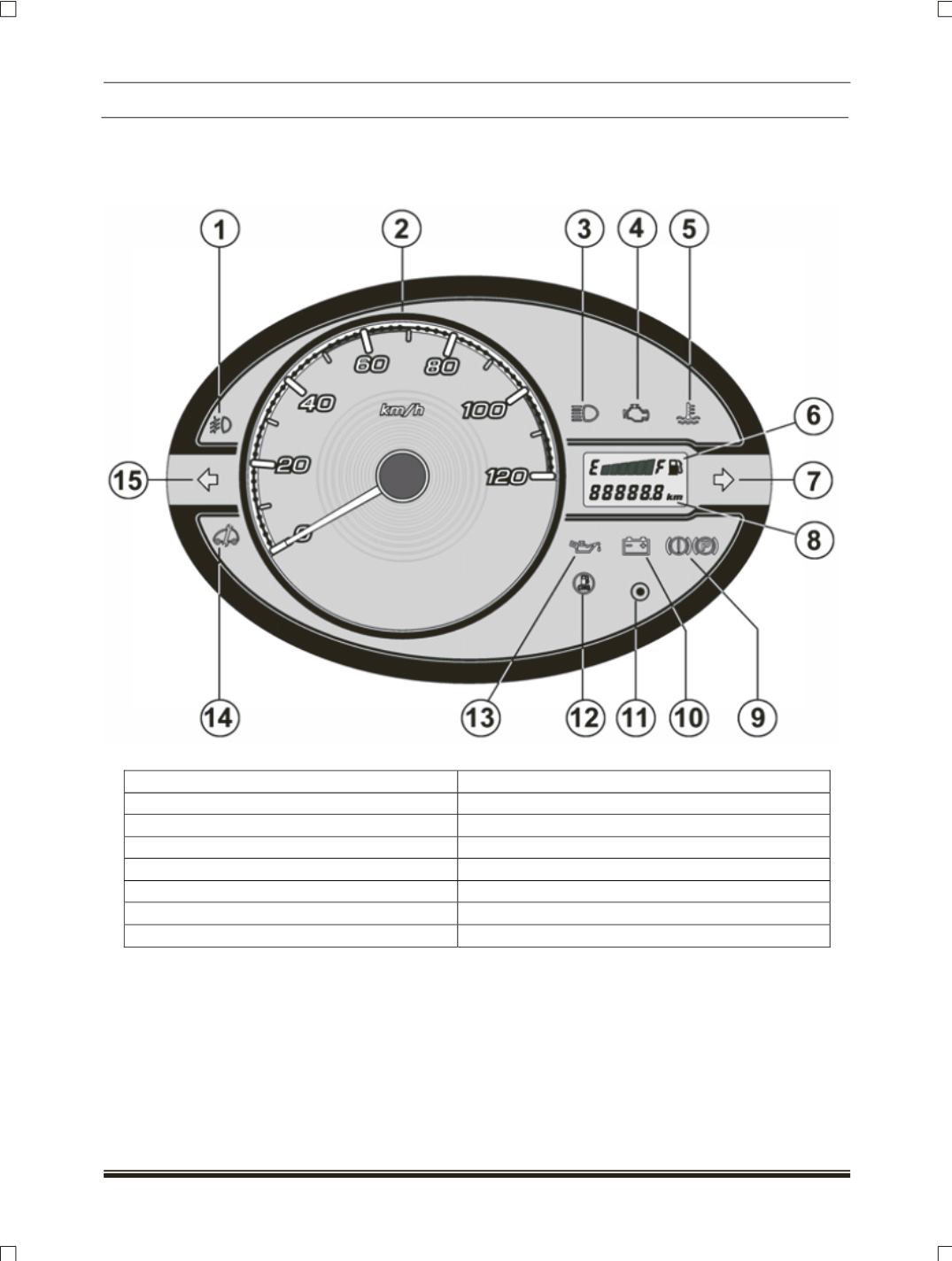

The Instrument cluster consists of Fuel gauge, Speedo meter, tell-tale indicators and LCD display. The location
of above gauges & displays are shown in the below image.
1. Front fog lamp indicator
9. Parking brake / Brake fluid check indicator
2. Speedometer
10. Battery charging indicator
3. High beam indicator
11. Trip / Rest knob
4. MIL indicator
12. CNG indicator
5.Engine coolant high temperature indicator
13. Low engine oil pressure indicator
6.Fuel level indicator
14. Service indicator
7. Turn indicator (Right)
15. Turn indicator (Left)
8. Odometer
CNG LAMP:
This lamp glows when you select the CNG fuel mode. This lamp will not glow when you select petrol fuel mode.
