HVAC SYSTEM-AC COMPRESSOR
166

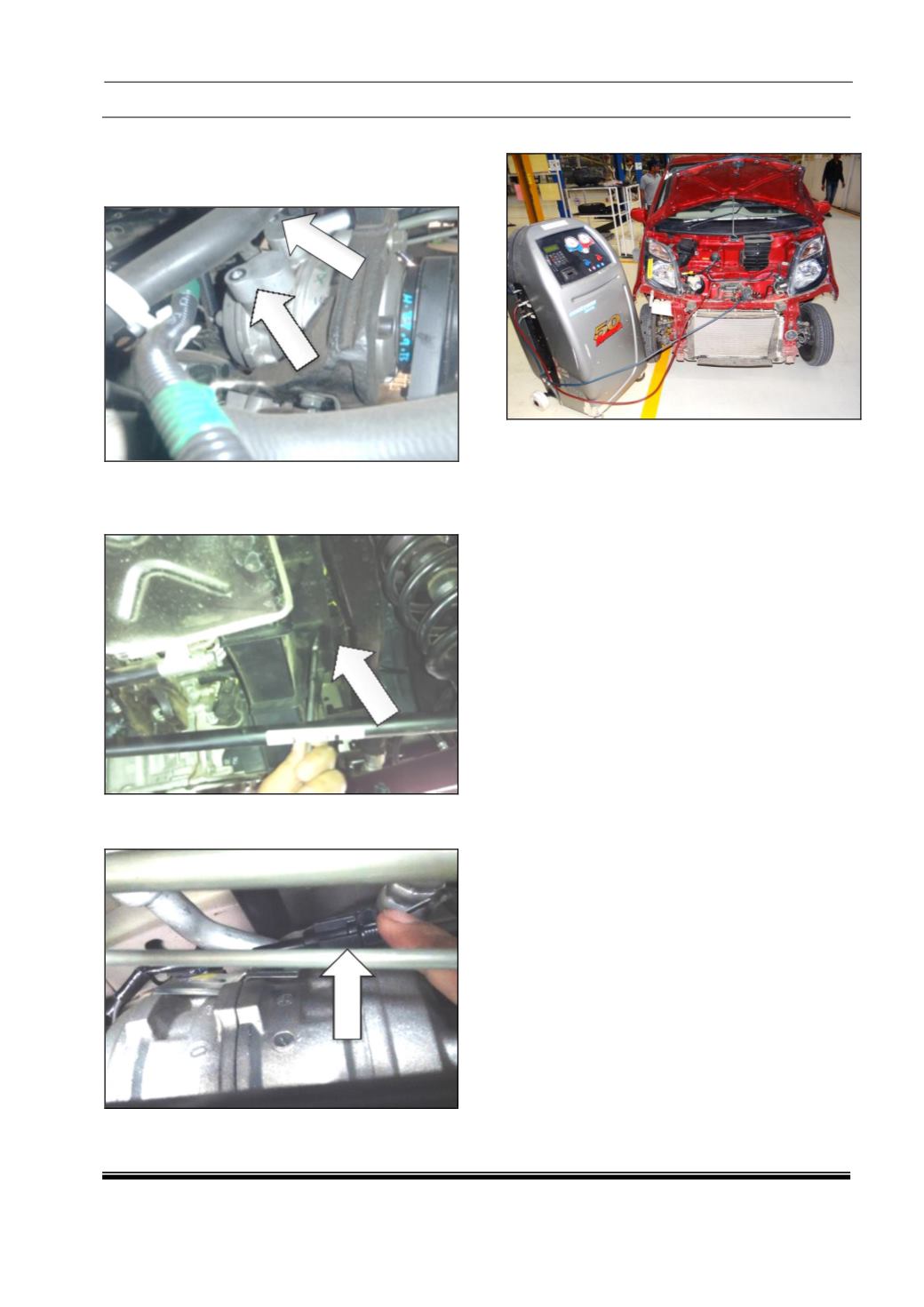

8. Tighten the ‘Suction and Discharge lines’
bolts of compressor by using ratchet and
socket spanner as per specified torque (10±1
Nm).
9. Tighten the all three screws (M6 flange hex)
of alternator belt cover as per specified
torque. (7 Nm).
10. Connect the electrical connector of
compressor clutch.
14. Connect the negative terminal of battery.
11. Recharge the refrigerant in AC system.
12. Close the bonnet.
