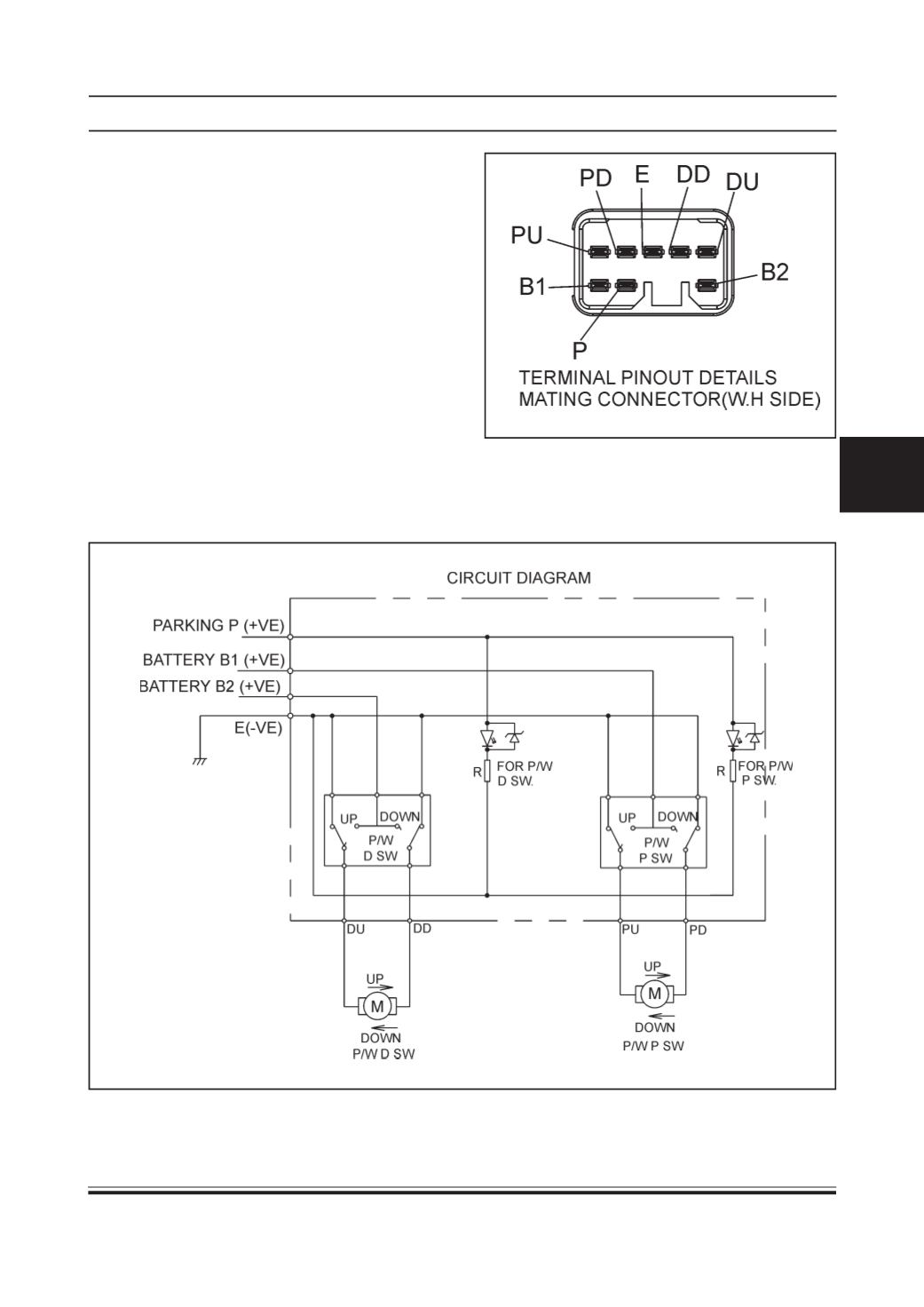

CONNECTIONDETAILS:

4. Switch ON the ignition key and check for

electrical supply at different stages like different

connectors, and operating switches with the help

of test lamp.

5. Check Window winding motor for free rotation by

connecting electrical supply. If found defective then

replace the motor.

6. Check drive square of the drive unit, if found worn

out then replace drive unit.

7. Check for the free movement of theWindow wind-

ing mechanism. If found hard and defective, then

replace the assembly.

REFITMENT :

1. Fit the power window switch on the floor console

2. Connect the electrical connector.

3. Fit the floor console.
