356

DRIVETRAIN

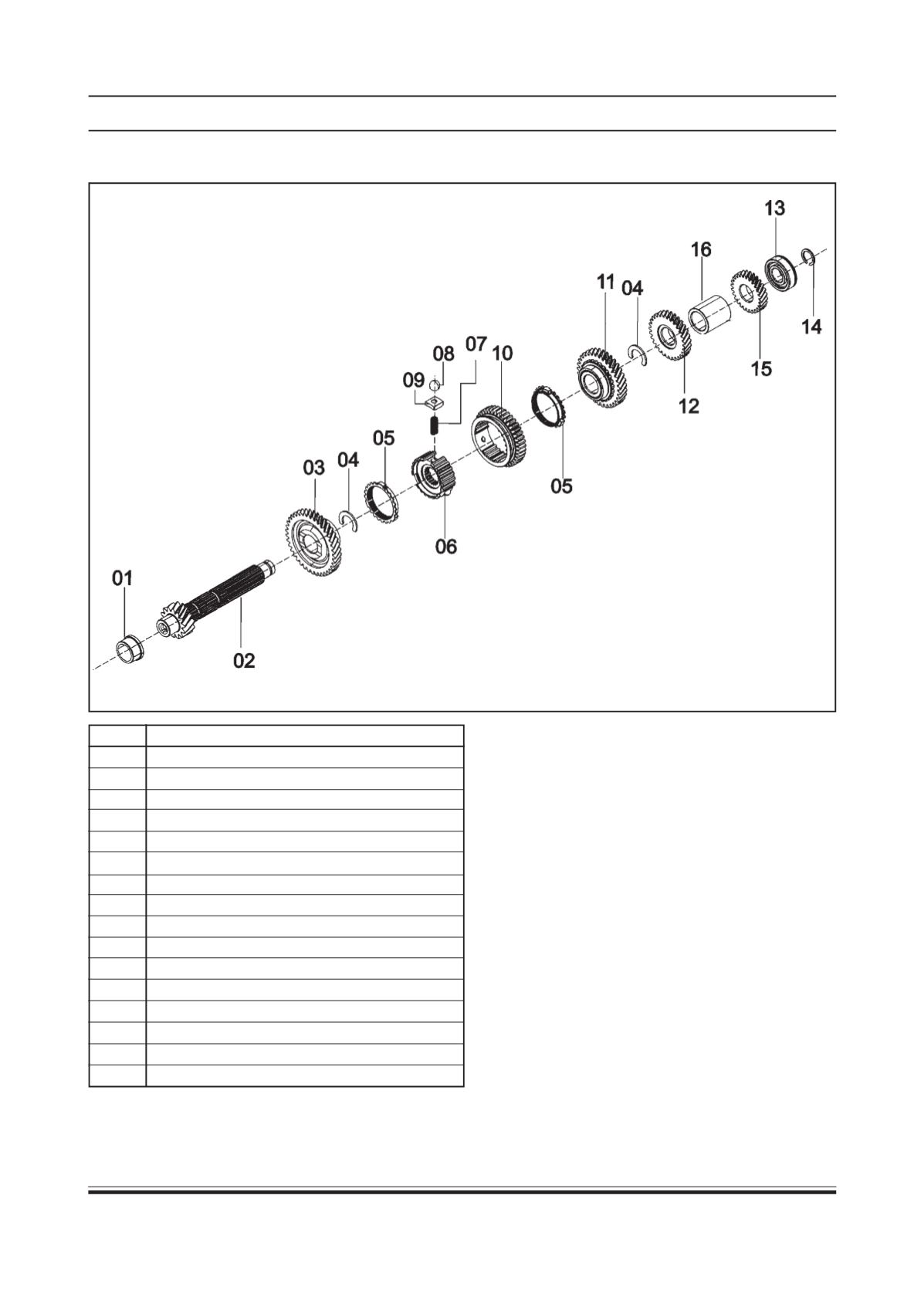

C. LAY SHAFT

SR NO. DESCRIPTION

1 CYL. ROLLER BEARING-INNER RACE

2 LAYSHAFT ( 4-SPEED )

3 FIRST GEAR WHEEL

4 CIRCLIP (SELECTIVE)

5 SYNCHRO CONE

6 ENGAGING GEAR

7 SPRING (SYNCHRO) - 3 NOS.
