NANO

BODY

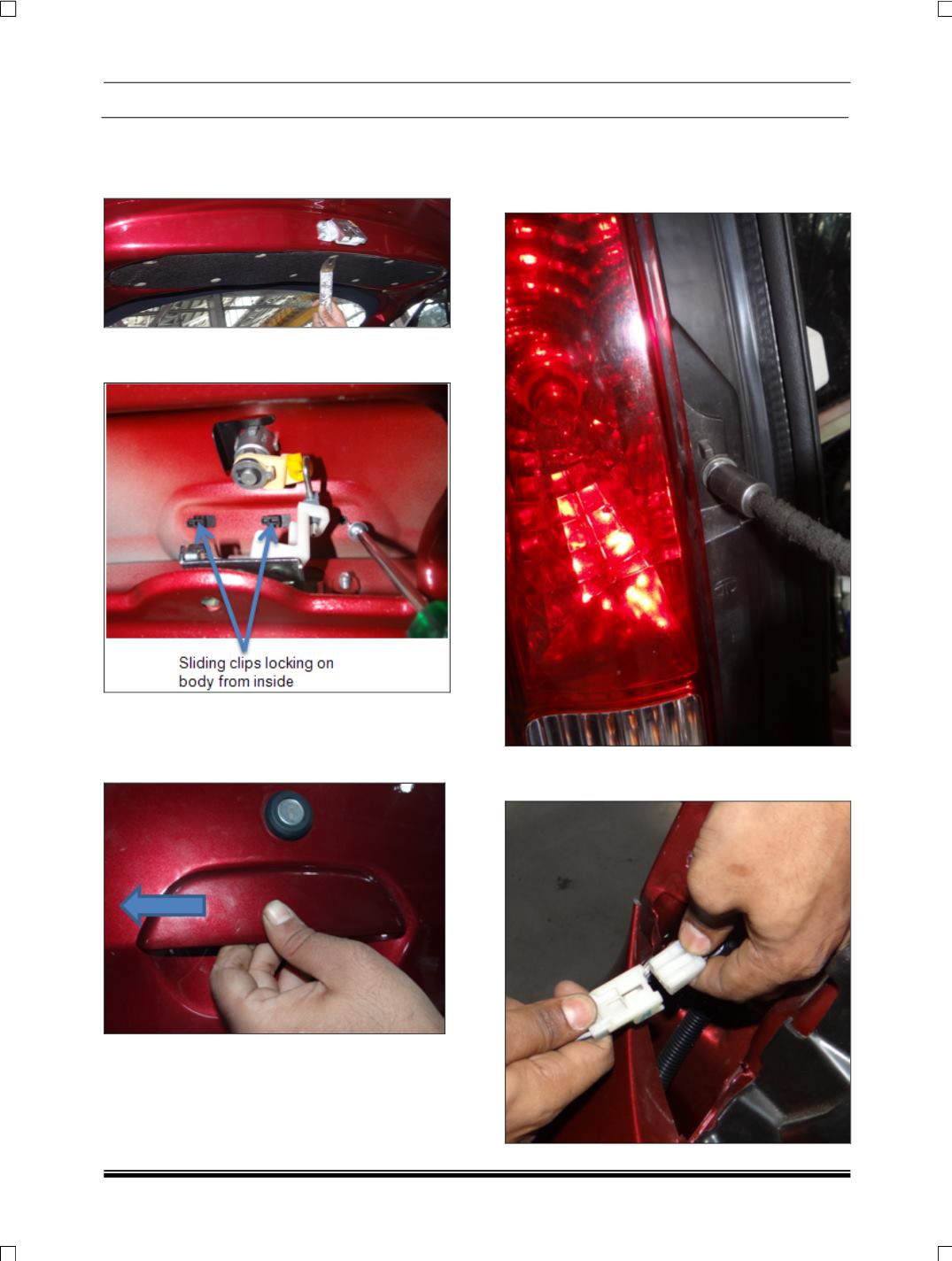

TAIL GATE HANDLE

1. Remove tailgate trim by removing plastic clips

with the help of special tool as shown in figure

2. Remove one screw from inside of handle as

shown in figure.

Inner side of handle has two clips which are slidable

and locking with the body. Move handle to its left

hand side from outside to unlock its grip on body.

Take out handle.

1.5 TAIL LAMP ASSEMBLY REMOVAL AND

REFITMENT

1. Remove two bolts from tail lamp assembly

panel.

2. Remove wiring harness connector. Take out

tail lamp assembly.
