TRANSAXLE

129

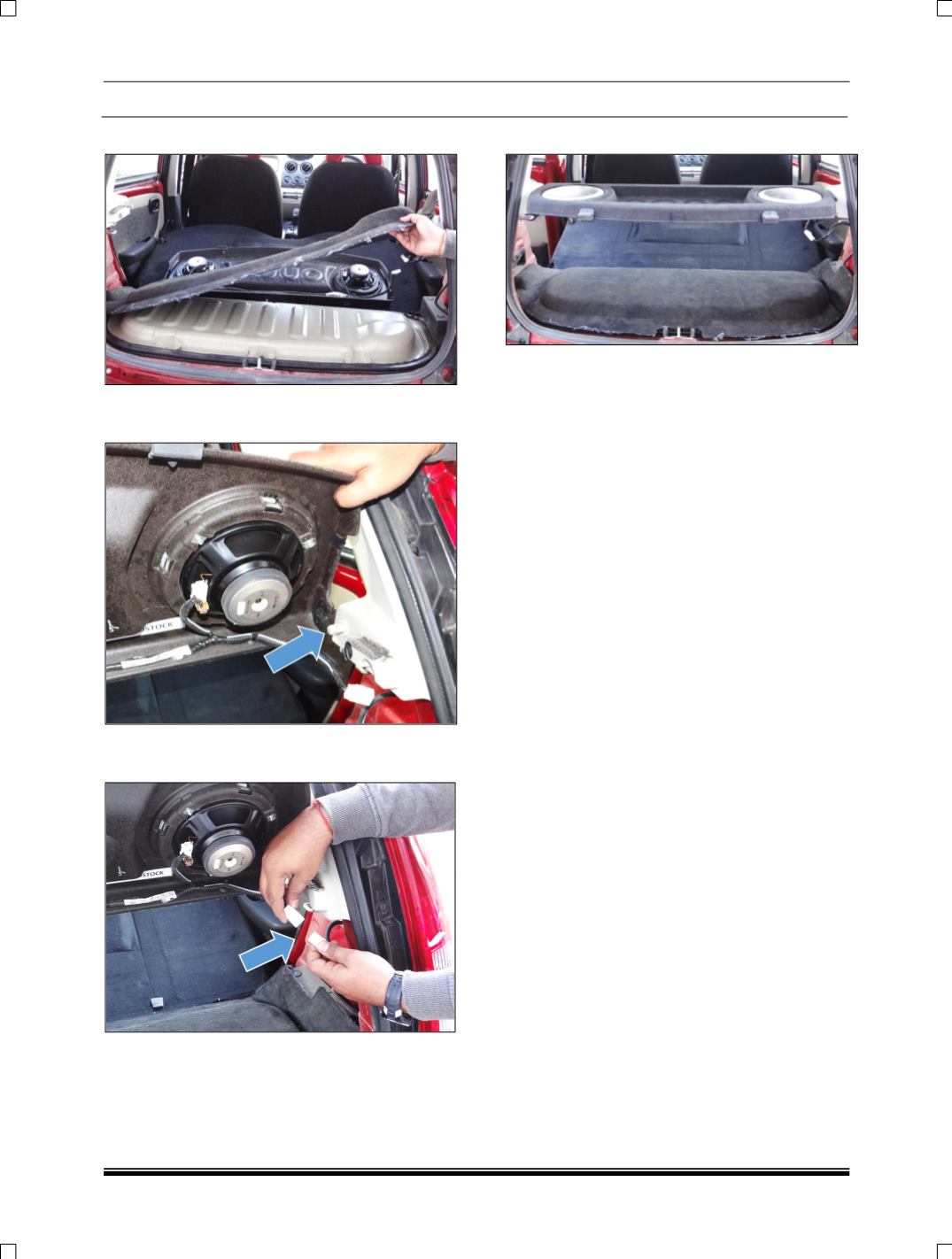

12. Place the floor mat on engine access cover.

13. Place the parcel tray in both guide bush

simultaneously.

14. Connect the speaker wiring harness

connector carefully.

15. Fit the parcel tray properly.

16. Fold the rear seat properly.

Close the tail gate.
