NANO

TRANSAXLE

127

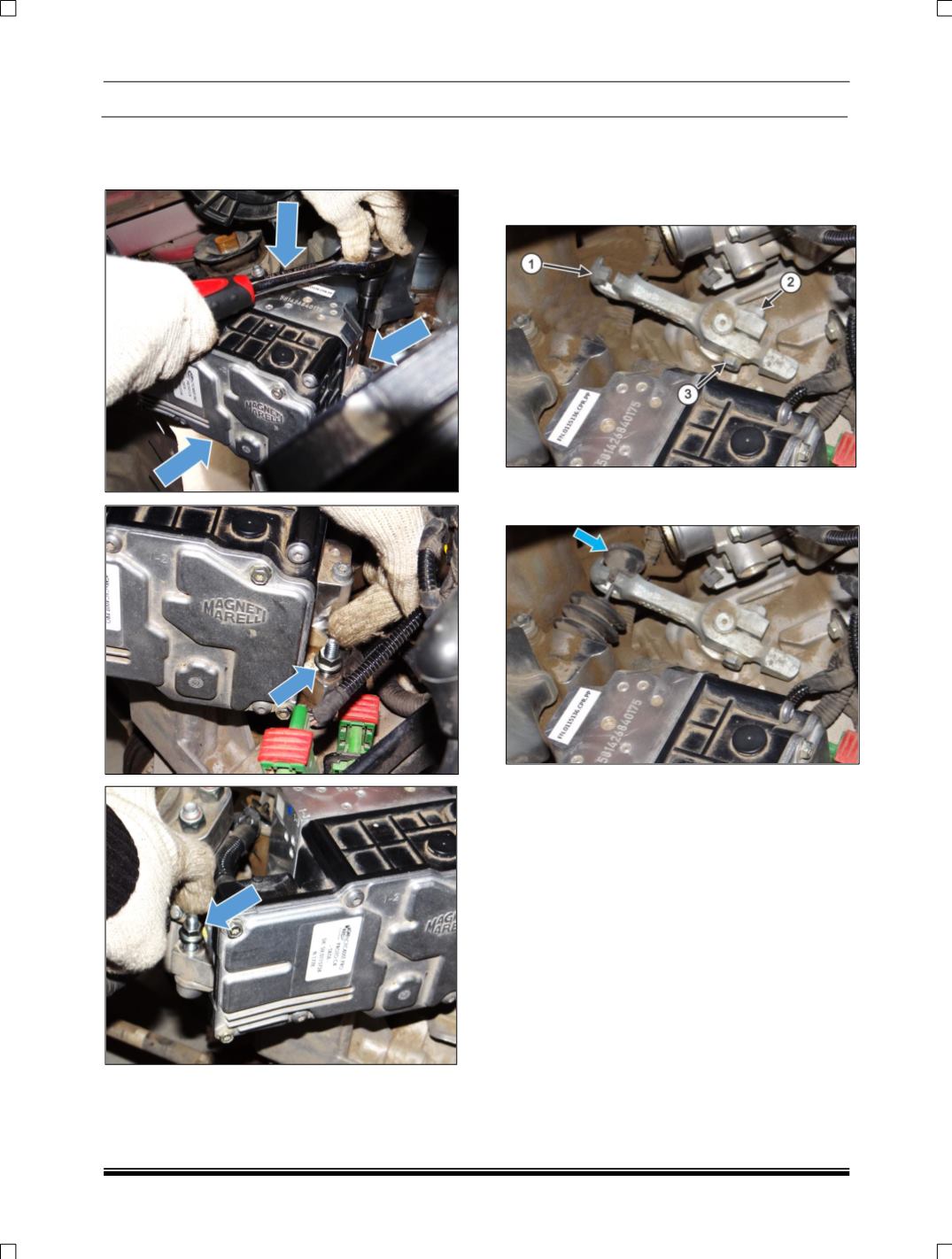

4. Tighten the all three M8x45 bolts and two M8

nuts by ratchet and extension socket (12 mm)

as per specified torque. (21~24.5 Nm).

5. Assemble the clutch release lever (1) on the

clutch release shaft splines and push it axially

till stopper is reached insert the bolt (2) into

clutch lever hole, fit nut (3) with it and tighten

the bolt as per specified torque. (23 Nm).

6. Assemble the clutch lever interface with clutch

release lever.
