ENGINE 273 MPFI
ENGINE
SYSTEM MAINTENANCE
AIR FILTER
Inspection:
•
Every time the air filter element is removed to clean,
inspect the condition of the element and replace
at intervals mentioned in the service schedule and
also when clogged, usually indicated by darken-
ing of the element.
· Check for any cracks in the air filter housing and
cover which may result in intrusion of unfiltered air.
Cleaning:
•
Clean the air filter element by vacuuming it parallel
to the folds or vacuuming it in the same direction.
Safety:
•
Vacuuming the air filter is recommended as it
avoids the fine dust causing any health hazards to
the operator.
•
Make sure to wear a suitable face mask and pro-
tect the eye while cleaning the air filter element,
as the fine dust particles may be hazardous to
health.
•
Clean the air filter element in a well ventilated room
with a provision to artificially throw out dusty air. If
the same is not available it is advised to do the
cleaning outdoors, but never in an unventilated
room.

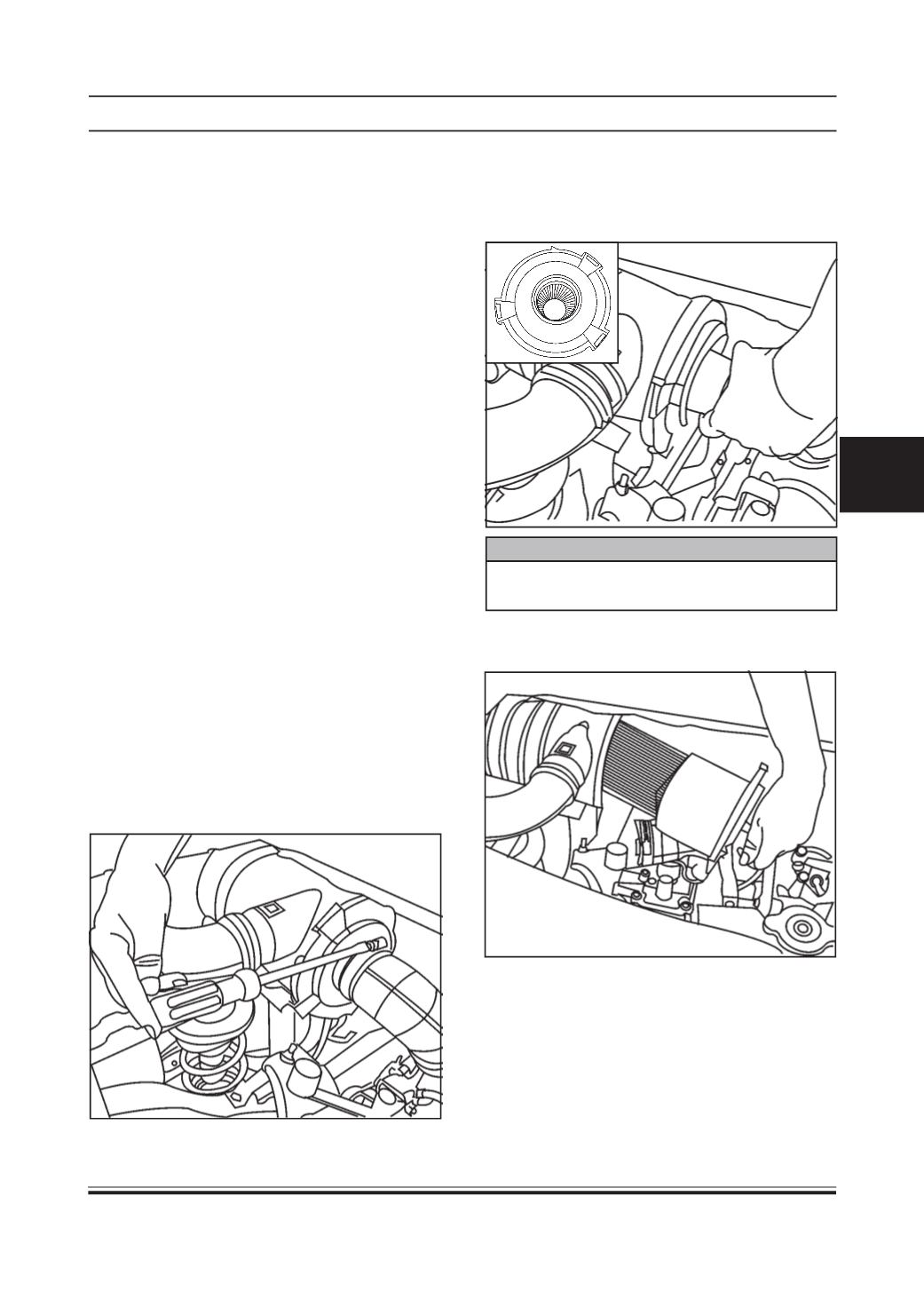

Replacement of Air Filter Element
•
Remove rear shelf. (Refer Body group for removal
of rear shelf).
•
Remove the hose clamp securing air filter housing
and flexible hose (air filter to throttle body).
•
Disconnect flexible hose (air filter to throttle body)
at air filter housing end.
•
Take out air filter element along with cover by
rotating the cover anticlockwise as shown in fig.
NOTE
Open & Close direction markings are engraved on
cover top surface.
•
Remove the air filter element along with housing
cover.
