211 / 896
ENGINE 273 MPFI
197
ENGINE

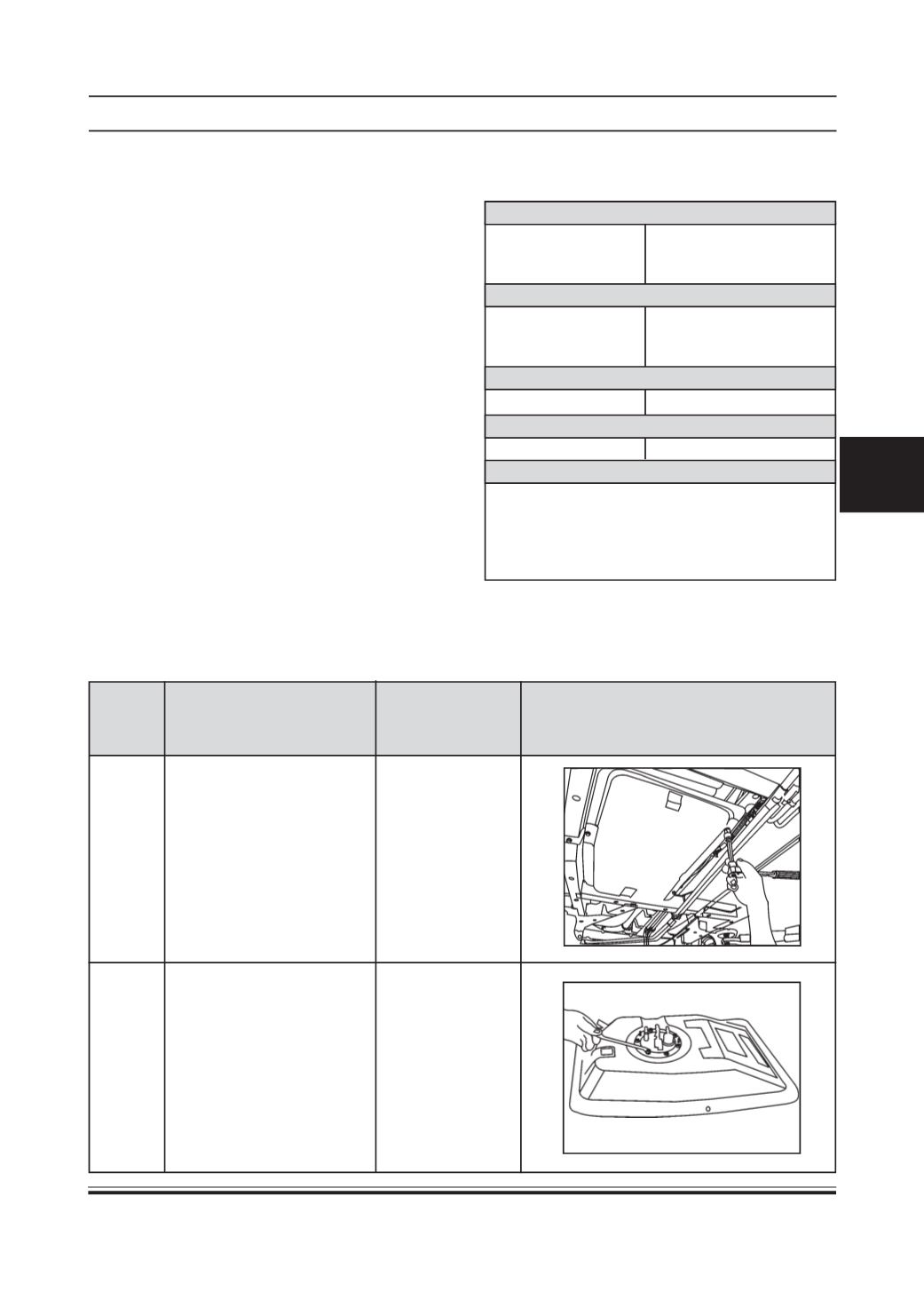

1.
Fuel tank hexagonal
mounting bolts
2.2
2.
Fuel gauge tank unit
hexagonal mounting bolts
of cover plate
0.3+0.1
SR. NO.
FASTENERS
TORQUE (KGF-M)
LOCATION
PRECAUTIONS, SPECIFICATIONS AND TIGHTENING TORQUES
Precautions to be followed while performing repair or
maintenance of fuel system:
1. Fuel is explosive. When working on fuel system
make sure to supply adequate ventilation to the
work area. Do not smoke, and keep sparks and
open flames away from workspace.
2. Disconnect negative cable terminal of battery.
3. Release the fuel pressure from the fuel system to
reduce the possibility of injury or fire.
4. Before repairing fuel tank assembly, clean it thor-
oughly to remove traces of fuel.
5. Always wear safety glasses and gloves.
Fuel pump pressure
(with inbuilt pressure
regulator)
3.5 bar
Fuel pressure, after
ignition key is
switched “off”
min.2.8 bar for 10 minutes
Fuel filter type
In-line
Fuel tank capacity 15 liters
Unleaded regular grade petrol confirming to IS 2796/
DIN 51607 (or equivalent) and octane rating not less
than 88 RON for BS-II & 91 RON for BS-III is
recommended as fuel (RON stand for Research
Octane Number).
