ENGINE 273 MPFI

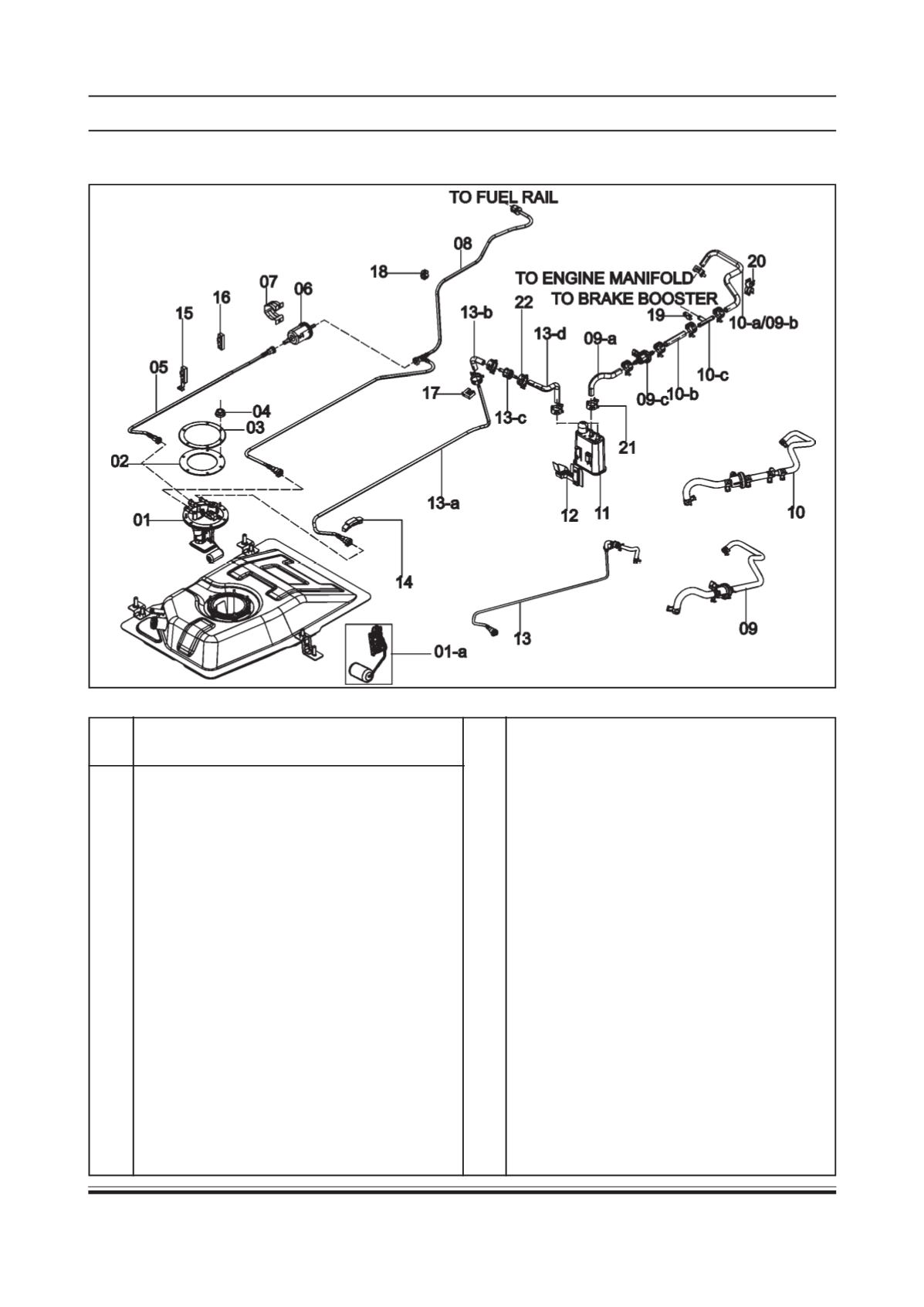

EXPLODED VIEW OF FUEL SYSTEM
ITEM
NO.
01
01-a
02
03
04
05
06
07
08
09
09-a
09-b
09-c
10
10-a
10-b
10-c
11
12
13
13-a
13-b
13-c
13-d
14
15
16
16
17
18
19
20
21
22
DESCRIPTION
FUEL MODULE
FUEL LEVEL SENSOR ASSEMBLY
SEALING GASKET
FUEL MODULE COVER PLATE
HEX FL NUT AM5 TS17430-8-SS8451-8C
ASSY. DELIVERY LINE FUEL PUMP TO FUEL
FILTER
FUEL FILTER
FUEL FILTER MOUNTING BRACKET
ASSY. DELIVERYAND RETURN LINE TO ENGINE
ASSY EVAPORATIVE LINE CANISTER TO ENGINE
EVAPORATIVE HOSE FOR CANISTER
HOSE FOR PURGE VALVE TO ENGINE MANIFOLD
CANISTER PURGE VALVE
ASSY EVAPORATIVE LINE CANISTER TO ENGINE
EVAPORATIVE HOSE FOR T-CONNECTOR TO
ENGINE
EVAPORATIVE HOSE FOR PURGE VALVE TO T-
CONNECTOR
T-CONNECTOR (EVAPORATIVE LINE HIGH END 1
CANISTER
CANISTER MOUNTING BRACKET
EVAPORATIVE LINE FUEL PUMP TO CANISTER
EVAPORATIVE LINE FUELMODULE TO CANISTER
EVAPORATIVE LINE END HOSE
TANK PRESSURE VALVE
EVAPORATIVE LINE HOSE FOR TPV TO CANISTER
CLAMP (FOR FUEL LINES)
CLAMP (FOR FUEL TANK & FUEL LINES)
CLAMP (FUEL LINES)
CLAMP
CLAMP
CLAMP
CLAMP
LINE SEPARATOR (DIA 15 X DIA 15)
SPR. BD CLAMP 15DX12W TS17665 SS8451S2-Y
SPR. BD CLAMP 14DX12W TS17665 SS8451S2-Y
