ELECTRICAL
7

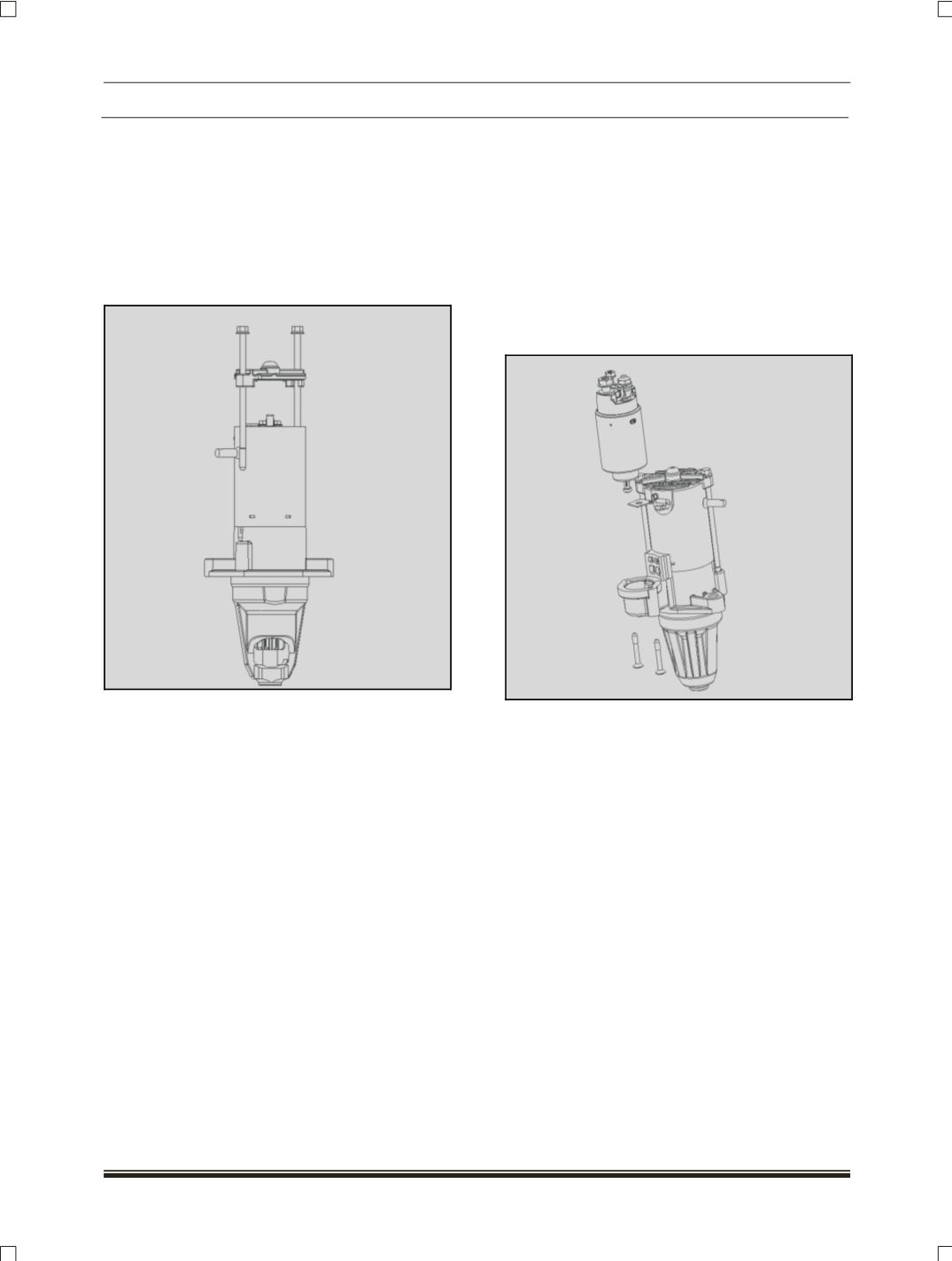

Fitment of End plate assembly
Place the end plate over the brush holder
assembly.
Fasten it with brush fixing screws to a torque of
1.6±0.4 Nm using 4mm socket and torque
wrench.
Assemble the through bolt and fasten them to a
torque of 4.5 ± 1Nm using 8mm socket and
torque wrench.
NOTE
Ensure proper orientation of endplate while
assembling screws (2).
Ensure through bolts are tightened evenly and
uniformly.
8. Fitment of Solenoid assembly
Place the solenoid on the housing chimney.
Properly insert the connecting rod onto the lever
slot.
Fasten solenoid with the M5 torx head screws
(2 Nos) at torque of 4.5 ± 1 Nm using a 5mm
socket and torque wrench.
Assemble the brush holder eyelet to the M+
terminal of the solenoid & fasten with the nut at
6.2 ± 1 Nm using 12mm socket and torque
wrench.
NOTE
Ensure connecting rod is properly located in the
lever slot.
